DAB Jet MP 230V Pumps
Jet 151 MP 60211569
- Established 1975
- Trusted by thousands of customers

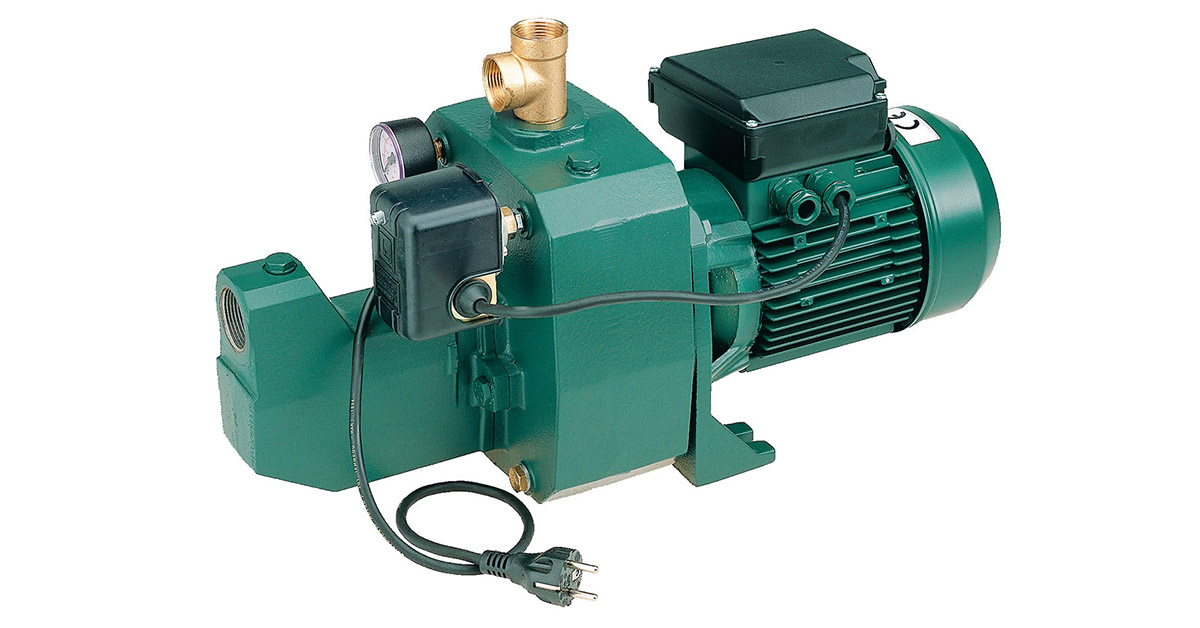

DAB Jet 151 MP
DAB Self-priming centrifugal water pump with pressure switch and gauge for automatic operation. Particularly suitable for domestic water supply, small-scale agriculture gardening and where self-priming operation is necessary.
More about this product
Overview
DAB Self-priming centrifugal water pump with pressure switch and gauge for automatic operation. Particularly suitable for domestic water supply, small-scale agriculture gardening and where self-priming operation is necessary.
The DAB JET MP Pump range is highly durable, strong and flexible, with an optimal motor cooling system. High-suction capacity, safety-tested and designed to provide motor efficiency and effective water supply; includes standardised components for easy management of spare pump parts.
DAB JET MP Pumps are available in a variety of sizes to provide the flow and pressure required.
Key points
- Home use
- Garden
- Irrigation
- Wells
- Excellent suction capacity
- Stainless steel pump body and motor support
- Internal ejector
- Motor cooling via fan guard
Specification
| Model | DAB Jet 151 MP |
|---|---|
| Supply | 220-240 V single-phase, 50 Hz |
| Rated power P2 | 1.1 kW (1.5 HP) |
| Max. power input P1 | 1.6 kW |
| Current In | 7.2 A |
| Max. head (zero flow) | 61 m |
| Head at 70 l/min | 36 m |
| Connections | 1¼” suction, 1″ delivery |
| Impellers | Twin impeller |
| Control | Pressure switch and pressure gauge |
| Max. operating pressure | 8 bar |
| Liquid temperature | 0 to +35 °C domestic use (EN 60335-2-41), 0 to +40 °C other uses |
| Max. ambient temperature | +40 °C |
| Motor protection | IP 44 (terminal block IP 55) |
| Insulation class | F |
- Operating range: two-poles from 0.4 to 10.5 m3/h with head up to 62 metres
- Liquid temperature range: from 0°c to +35°C domestic use; 0°C to +40°C other use
- Maximum ambient temperature : +40°C
- Maximum working pressure: 6 bar (600 kPa) for Jet and Jetcom 8 bar (800 kPa) for Jetinox
- Protection level: IP 44 (IP 55 terminal board protection).
- Insulation class: F
-
Data Sheet PDFDownload
