ESPA TECNO Horizontal Surface Pumps

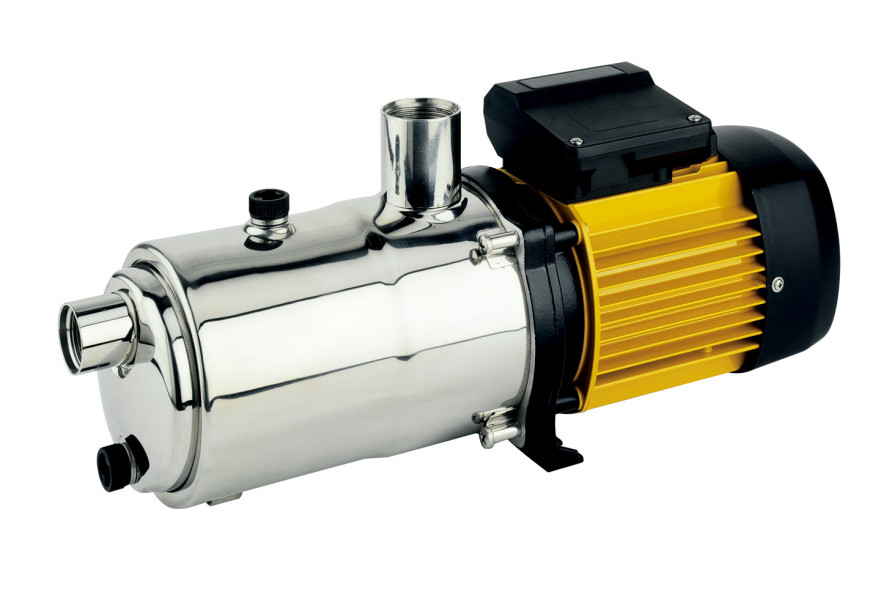

ESPA TECNO 25 4M 230V – 00097528
In stock
- Established 1975
- Trusted by thousands of customers
Horizontal centrifugal multistage pump for water supply, self-priming up to 9m.
Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster sets. Silent. Self-priming up to 9m.
More about this product
Features
- Discharge connection type: Thread
- Discharge diameter: 1"
- Motor cooling: Fan
- Seal type: Mechanical seal
- Suction connection type: Thread
- Suction diameter: 1"
Equipment
- No cable.
Motor
- Asynchronous 2 poles.
- IPX5 protection.
- Class F insulation.
- Single phase motor with built-in thermal
- protection.
- Continuous operation.
​Limitations
- Maximum suction (m): 9
- Water temperature (ºC): Max: 40
Materials
- Diffuser/s: Technopolymer
- Discharge body: Stainless steel AISI 304
- Impeller/s: Stainless steel AISI 304
- Mechanical seal: Aluminium-Graphite
- Motor casing: Aluminium
- O-rings: NBR/EPDM
- Pump body: Stainless steel AISI 304
- Pump shaft: Stainless steel AISI 431
- Suction body: Stainless steel AISI 304
-

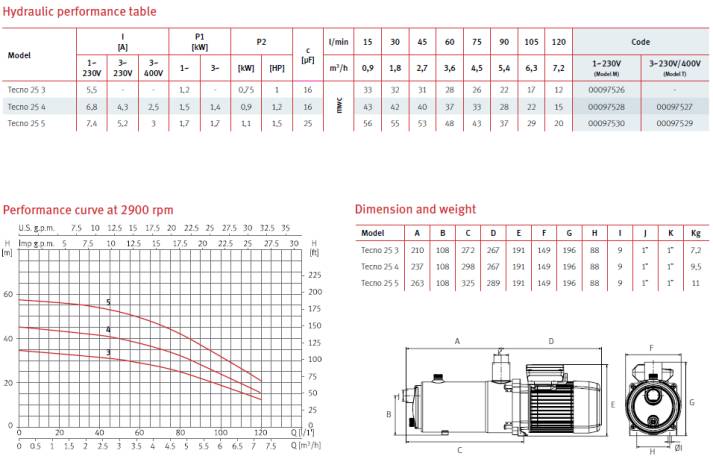

Data Sheet PDFDownload
