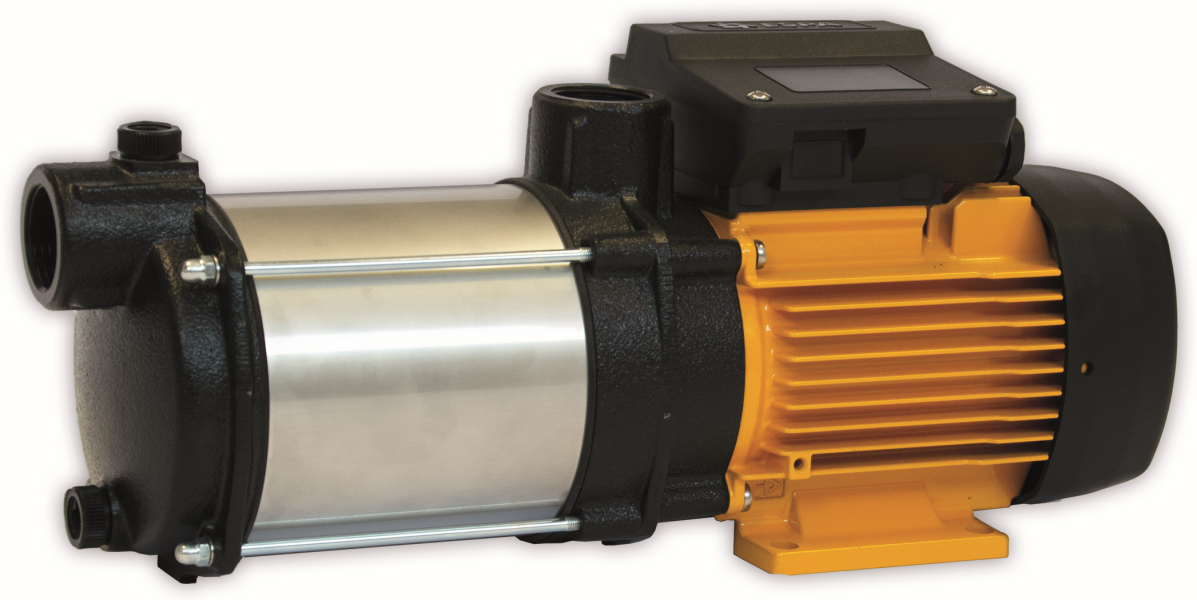

ESPA ASPRI 15 Horizontal Surface Pumps
ESPA ASPRI 15 4M 230V – 00096423
- Established 1975
- Trusted by thousands of customers
Horizontal centrifugal multistage pump for water supply, self-priming up to 9m.
Pumping of clean water for domestic, industrial, agricultural and gardening purposes. Suitable for applications like water transfer, sprinkler or drip irrigation, domestic booster or booster sets. Silent. Self-priming up to 9m.
More about this product
Equipment
- No cable.
Motor
- Asynchronous 2 poles.
- IPX5 protection.
- Class F insulation.
- Single phase motor with built-in thermal protection.
- Continuous operation.
Limitations
- Maximum suction (m): 9
- Water temperature (ºC): Max: 40
Materials
- Diffuser/s: Technopolymer
- Discharge body: Cast iron
- Impeller/s: Stainless steel AISI 304
- Mechanical seal: Aluminium-Graphite
- Motor casing: Aluminium
- O-rings: NBR/EPDM
- Pump body: Stainless steel AISI 304
- Pump shaft: Stainless steel AISI 431
- Suction body: Cast iron
-

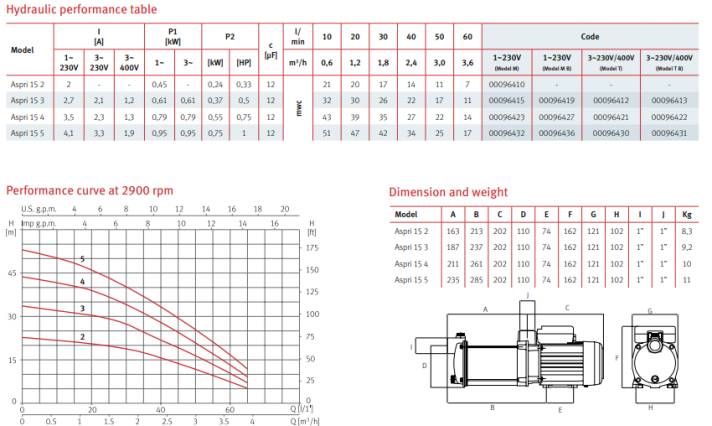

Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Lowara NSCE cast iron centrifugal pump combining high efficiency with high flexibility regarding installation, material options and temperature. The new NSCE series is the natural…
Lowara ESHE 400v 2900rpm 316 stainless steel centrifugal pump combining high efficiency with high flexibility regarding installation, material options and temperature. The new ESHE series is the natural choice…
DAB Self-priming centrifugal water pump with excellent suction capacity even when there are air bubbles. Particularly suitable for water supply in domestic installations smallscale agriculture…
For a self-priming pump suited to domestic applications, look no further than the DAB JET Pump collection. With impressive suction capacity even when interacting with…
Lowara NSCE cast iron centrifugal pump combining high efficiency with high flexibility regarding installation, material options and temperature. The new NSCE series is the natural…
Grundfos JP4-54 230v – 99458789 Grundfos JP 4-54 is a self-priming single-stage centrifugal jet pump with axial inlet and radial outlet for easy adaption to local…
Frequently Asked Questions
Quick answers to common questions about the ESPA ASPRI 15 4M 230V – 00096423. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is the ESPA Aspri 15-4M used for?
The ESPA Aspri 15-4M is a self-priming multistage pump designed for domestic water supply, pressure boosting, irrigation and other clean water applications.
What are the benefits of the ESPA Aspri 15-4M being self-priming?
Its self-priming design allows the pump to evacuate air from the suction line, making it suitable for installations where the water source is below the pump.
Is the ESPA Aspri 15-4M suitable for domestic pressure boosting?
Yes. The Aspri 15-4M is suitable for domestic water pressure boosting where a quiet, reliable multistage pump is required.
