Name: Pedrollo PLURIJETm 4/130 Single Phase 2110700
Brand: Pedrollo
SKU: 2110700
Price: 1212.6 GBP
Availability: InStock

Pedrollo PLURIJETm 4/130 Single Phase 2110700

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

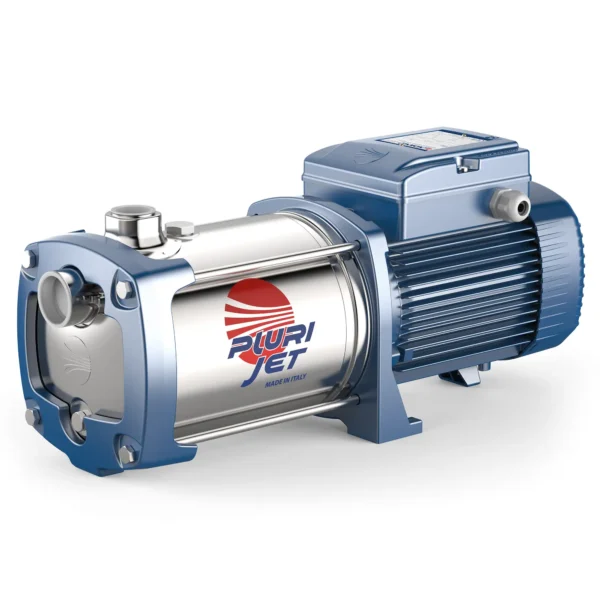

The Pedrollo PLURIJETm 4/130 is a 1.5 kW (2 HP) self-priming multi-stage jet pump on a 230 V single-phase supply, delivering up to 130 l/min and 65 m head. It lifts water from a well or tank below the pump and delivers it at pressure.

Part of Pedrollo’s PLURIJET range: the multi-impeller version of the jet pump, for wells, tanks and rainwater with good flow and quiet running.

130l/min

Max flow

65m

Max head

1.5kW

2 HP

230V

Single Phase

Self-primingMulti-stageSuction lift up to 9 mSingle & three-phaseCode 2110700

Full Description

More about this product

Full Description

Product overview

The Pedrollo PLURIJETm 4/130 is a 1.5 kW (2 HP) self-priming multi-stage jet pump on a 230 V single-phase supply, covering 5 to 130 l/min with a working head of 65 m down to 31 m. A jet ejector gives suction lift up to 9 metres, and several impellers in series give a smoother, higher-flow curve than a single-impeller jet pump.

PLURIJET pumps draw water from wells, cisterns, rainwater tanks and rivers and deliver it at pressure for domestic supply, pressure sets, garden and smallholding irrigation, and washing. They are quieter than single-stage jet pumps and cope with air in the suction line. Install indoors or under cover.

130l/min

Max flow

65m

Max head

1.5kW

2 HP

230V

Single Phase

Key features

Self-priming

Lifts water from up to 9 m below the pump once primed, and re-primes with air in the line.

Multi-stage

Several impellers in series for higher flow and quieter running than a single-stage jet.

Stainless steel build

AISI 304 stainless steel pump body and impellers resist corrosion and keep the water clean.

Single or three-phase

PLURIJETm single-phase 230 V with thermal protection, or PLURIJET three-phase 400 V.

Pressure set ready

Pairs with a vessel and pressure switch or Steadypres inverter.

Continuous duty

Rated S1 for continuous running.

Typical applications

Wells and boreholes

Shallow wells and tanks below the pump, up to 9 m lift.

Rainwater harvesting

Drawing from underground rainwater tanks for garden and household use.

Pressure boosting

Domestic pressure sets from a stored supply.

Irrigation

Gardens, allotments and smallholdings.

Technical specifications

Brand / Series	Pedrollo — PLURIJET
Model	PLURIJETm 4/130
Pedrollo code	2110700
Supply	230 V single-phase
Motor power (P2)	1.5 kW / 2 HP
Motor	Single-phase motor with built-in thermal overload protection
Flow range	5–130 l/min
Head range	65–31 m
Pump body	AISI 304 stainless steel
Impeller	AISI 304 stainless steel
Liquid	Clean water, not chemically aggressive to the pump materials
Duty	Continuous S1

PLURIJET 5/90 to 6/200 sizes

Model	Code	Supply	Power	Flow	Head
PLURIJETm 5/90	2110670	Single Phase	1.1 kW / 1.5 HP	5–90 l/min	78–38 m
PLURIJET 5/90	2110750	Three Phase	1.1 kW / 1.5 HP	5–90 l/min	78–38 m
PLURIJETm 6/90	2110680	Single Phase	1.5 kW / 2 HP	5–90 l/min	94–45 m
PLURIJET 6/90	2110760	Three Phase	1.5 kW / 2 HP	5–90 l/min	94–45 m
PLURIJETm 3/130	2110690	Single Phase	1.1 kW / 1.5 HP	5–130 l/min	49–24 m
PLURIJET 3/130	2110770	Three Phase	1.1 kW / 1.5 HP	5–130 l/min	49–24 m
PLURIJETm 4/130	2110700	Single Phase	1.5 kW / 2 HP	5–130 l/min	65–31 m
PLURIJET 4/130	2110780	Three Phase	1.5 kW / 2 HP	5–130 l/min	65–31 m
PLURIJETm 5/130	2110710	Single Phase	1.8 kW / 2.5 HP	5–130 l/min	81–39 m
PLURIJET 5/130	2110790	Three Phase	1.8 kW / 2.5 HP	5–130 l/min	81–39 m
PLURIJETm 6/130	2112280	Single Phase	2.2 kW / 3 HP	5–130 l/min	97–46 m
PLURIJET 6/130	2110800	Three Phase	2.2 kW / 3 HP	5–130 l/min	97–46 m
PLURIJETm 3/200	2110720	Single Phase	1.1 kW / 1.5 HP	20–200 l/min	43–13 m
PLURIJET 3/200	2110810	Three Phase	1.1 kW / 1.5 HP	20–200 l/min	43–13 m
PLURIJETm 4/200	2110730	Single Phase	1.5 kW / 2 HP	20–200 l/min	57–17 m
PLURIJET 4/200	2110820	Three Phase	1.5 kW / 2 HP	20–200 l/min	57–17 m
PLURIJETm 5/200	2110740	Single Phase	1.8 kW / 2.5 HP	20–200 l/min	71–22 m
PLURIJET 5/200	2110830	Three Phase	1.8 kW / 2.5 HP	20–200 l/min	71–22 m
PLURIJETm 6/200	2112290	Single Phase	2.2 kW / 3 HP	20–200 l/min	85–26 m
PLURIJET 6/200	2110840	Three Phase	2.2 kW / 3 HP	20–200 l/min	85–26 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

How deep can it lift from?

Up to 9 metres below the pump, with a foot valve on the suction pipe and the pump body filled before first start.

PLURIJET or FUTURE JET?

FUTURE JET is the single-stage jet pump: simpler and cheaper. PLURIJET has several impellers, so for the same power it gives more flow, a flatter curve and quieter running. Choose PLURIJET where the pump runs a lot or noise matters.

Can I use it on a pressure set?

Yes. Pair it with a pressure vessel and pressure switch, or a Pedrollo Steadypres inverter for constant pressure.

What water can it handle?

Clean water without abrasive particles, not chemically aggressive to stainless steel.
