ESPA Acuapres
Espa Acuapres 07S 4M 230V – 3 bar 00209179
- Established 1975
- Trusted by thousands of customers
Espa Acuapres 07S 4M 230V – 3 bar 00209179
Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is automatic start and stop based on water demand.
More about this product
Overview
Automatic pumping of clean water for domestic, industrial, agricultural and gardening purposes. Operation is automatic start and stop based on water demand.
Suitable for open wells, ponds and tanks in applications like sprinkler or drip irrigation, water transfer or domestic booster. Starting pressure 2 bar.

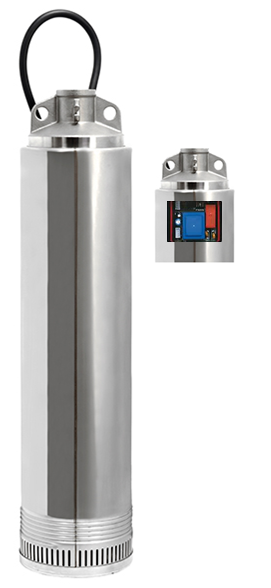

Easy-to-use and install, its integrated electronics automatically starts and stops the pump, with a stainless steel inlet filter included on the pump body. An effective IP68-rated motor provides consistent high-pressure, positioned in the top of the pump and cooled by the pumped liquid.
Key features
- Automatic submersible pump for water supply.
Specification
| Product | Espa Acuapres 07S 4M 230V – 3 bar 00209179 |
|---|---|
| Power | 0.55 kW (P2), 0.8 kW (P1) |
| Supply | 230 V single-phase |
| Outlet | 1″ threaded |
| Rated current | 3.6 A |
| Capacitor | 12 µF, 450 V |
| Max. immersion depth | 12 m |
| Max. liquid temperature | 40 °C |
| Protection | IP68 |
| Insulation class | F |
| Duty rating | Continuous (S1) |
| Motor | Asynchronous, water cooled, automatic reset |
| Shaft seal | Double mechanical seal, aluminium-graphite |
| Pump body | Stainless steel AISI 304 |
| Impellers | Stainless steel AISI 304 |
| Diffusers | Technopolymer |
| Shaft | Stainless steel AISI 431 |
| O-rings | NBR/EPDM |
| Non-return valve | Included |
-
Manual PDFDownload
-
data sheet PDFDownload
