DAB Jet with Control D
DAB Jet 132 M with Control D 60215151
- Established 1975
- Trusted by thousands of customers

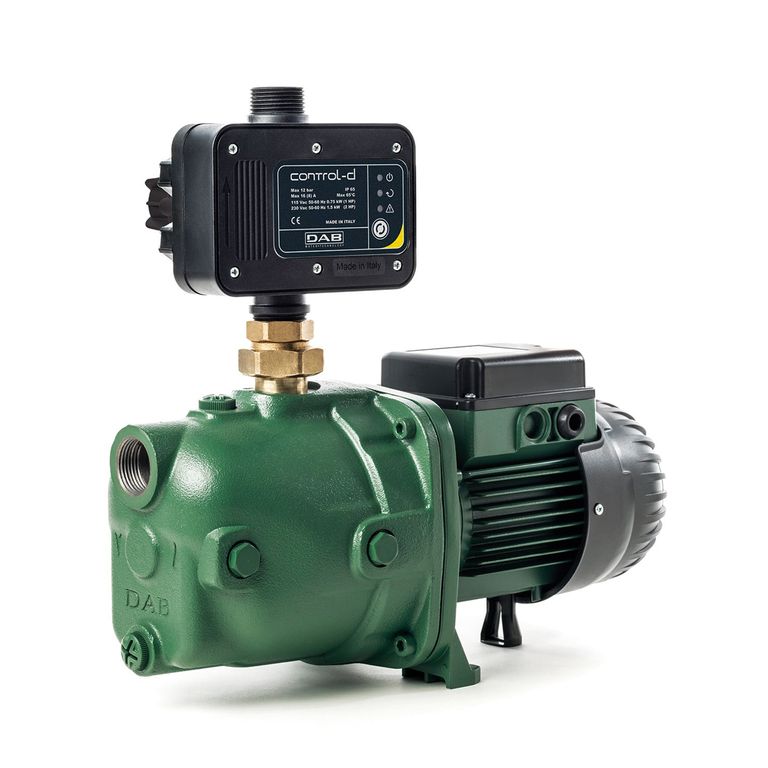

DAB Jet 132 M with Control-D self-priming pump, 220-240 V single-phase
Self-priming pumps (Jet/Jet Inox) or multi-impeller self-priming pumps (Euro Inox) suitable for domestic use for water supply and pressurization, irrigation of gardens, or movement of water in general.
More about this product
Overview
Self-priming pumps (Jet/Jet Inox) or multi-impeller self-priming pumps (Euro Inox) suitable for domestic use for water supply and pressurization, irrigation of gardens, or movement of water in general.
Specification
| Model | DAB Jet 132 M with Control-D |
|---|---|
| Part number | 60215151 |
| Supply | 220-240 V single-phase, 50 Hz |
| Rated power P2 | 1 kW (1.36 HP) |
| Max. power input P1 | 1.49 kW |
| Current In | 6.6 A |
| Capacitor | 25 µF / 450 V |
| Max. operating pressure | 8 bar |
Jet Control-D range
| Flow rate | 80 l/min |
|---|---|
| Head | 72 m |
| Liquid temperature | From 0°C to +35°C |
| Protection class | IP 44 (IP 55 at the terminal block); IP 65 Control-D |
| Motor protection class | F |
Applications
- Water pressure booster
- Rainwater harvesting
