GWS HeatWave Hydronic Expansion Tanks
GWS HeatWave HWB-4LX
- Established 1975
- Trusted by thousands of customers

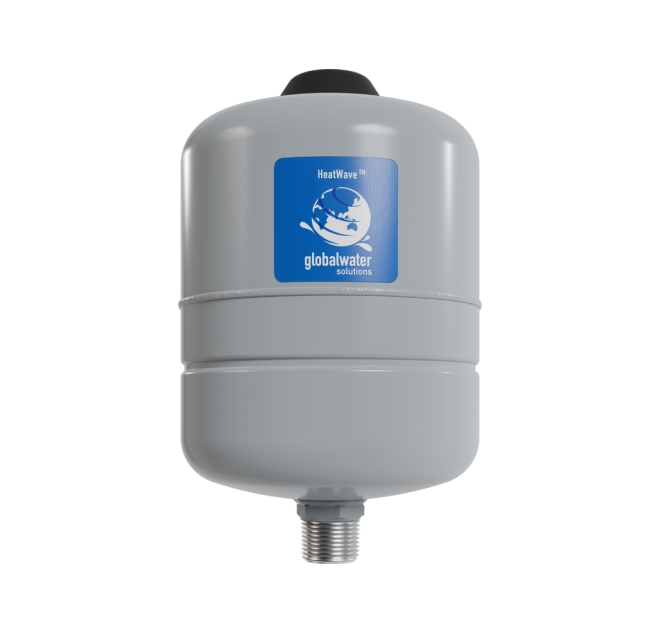

The GWS HeatWave™ HWB-4LX is a compact 4 litre inline expansion vessel for small closed-loop heating systems. As the system water heats and expands, the vessel’s air-charged chamber takes up the extra volume, holding system pressure steady and keeping it off the relief valve.
High-grade butyl diaphragm, chromed steel connection and brass O-ring sealed air valve, with a dual-layer polyurethane finish. At 256 × 162 mm it screws straight onto the pipework on its ¾″ BSPT connection. Factory pre-charged to 0.7 bar, rated to 6 bar and 99 °C.
Butyl diaphragm
Inline mounting
¾″ BSPT
Glycol compatible
Model HWB-4LX
More about this product
Product overview
The GWS HeatWave™ HWB-4LX is a 4 litre (1.1 US gal) inline expansion vessel for small sealed heating circuits. Water expands as it heats. Without somewhere to go, that extra volume pushes system pressure up until the relief valve lifts. The HeatWave’s air-charged chamber absorbs it instead, keeping pressure steady through every heat-up and cool-down.
HeatWave™ tanks are built to the same standards as GWS PressureWave™ and Challenger™ vessels, with a high-grade butyl diaphragm, chromed steel connection with welded hex nut, and a brass air valve with O-ring sealed cap. The inline design mounts directly on the pipework, or on the GWS universal wall bracket where the pipe needs support.
Key features
Typical applications
Technical specifications
| Brand / Series | GWS — HeatWave™ |
| Model | HWB-4LX |
| Type | Inline, pipework mounted |
| Nominal volume | 4 L / 1.1 US gal |
| Connection | ¾″ BSPT, chromed steel |
| Factory pre-charge | 0.7 bar / 10 psi |
| Max operating pressure | 6 bar / 87 psi |
| Operating temperature | −10 °C (avoid freezing) to +99 °C |
| Diaphragm | High-grade butyl |
| Air valve | Brass, O-ring sealed cap |
| Finish | Dual-layer polyurethane over epoxy primer, grey |
| Height (A) | 256 mm |
| Diameter (B) | 162 mm |
| Gross weight | 1.7 kg |
| Suitable for | Closed-loop, non-potable hydronic heating and cooling only |
Frequently asked questions
What does a heating expansion vessel do?
Water expands as a heating system warms up. The vessel’s air-charged chamber takes up that extra volume, so system pressure stays steady and the relief valve doesn’t lift every time the heating comes on.
Can I use it on a drinking-water or booster system?
No. HeatWave™ vessels are for closed-loop, non-potable heating and cooling only. For potable hot water expansion, use a GWS ThermoWave™ vessel; for drinking water or pump boosting, a PressureWave™ or Challenger™.
What should the pre-charge be set to?
It arrives at 0.7 bar. Check it with the vessel empty and set it to your system’s cold fill pressure before filling.
Can I use antifreeze?
Yes, propylene glycol at concentrations up to 50%. GWS advise avoiding ethylene glycol.
Is 4 litres big enough?

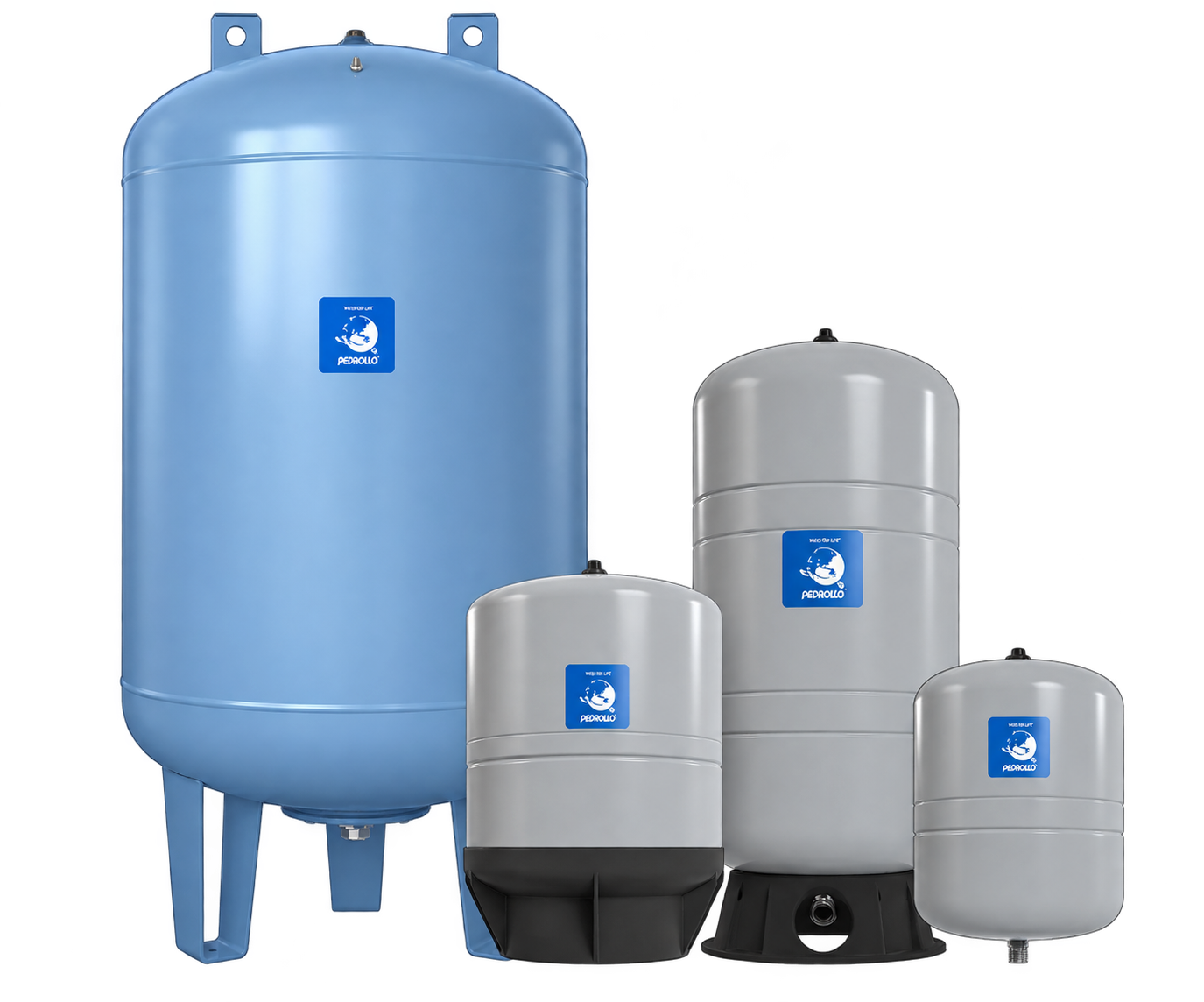

It suits small sealed circuits such as underfloor zones and HIUs. Whole-house systems usually need 8 to 24 litres; the HeatWave range runs up to 500 litres. Ask our team if you’d like it sized for your system.
-
