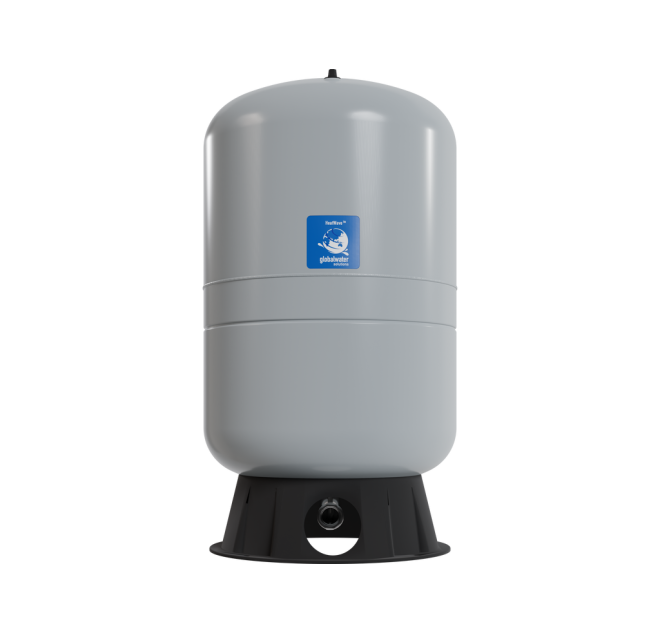

GWS HeatWave HWB-130LV heating expansion tank
- Established 1975
- Trusted by thousands of customers
The GWS HeatWave™ HWB-130LV is a 130 litre vertical expansion vessel for closed-loop heating systems. As the water heats and expands, the vessel’s air-charged chamber takes up the extra volume, holding system pressure steady and keeping it off the relief valve.
High-grade butyl diaphragm, chromed steel connection and brass O-ring sealed air valve, with a two-part polyurethane finish over epoxy primer. It stands on its own rigid base, so no wall bracket is needed. 1″ BSPP, factory pre-charged to 1.5 bar, rated to 6 bar and 99 °C.
Butyl diaphragm
Freestanding vertical
1″ BSPP
Glycol compatible
Model HWB-130LV
More about this product
Product overview
The GWS HeatWave™ HWB-130LV is a 130 litre (34.3 US gal) vertical expansion vessel for sealed, closed-loop heating systems. Water expands as it heats. Without somewhere to go, that extra volume pushes system pressure up until the relief valve lifts. The HeatWave’s air-charged chamber absorbs it instead, keeping pressure steady through every heat-up and cool-down.
HeatWave™ tanks are built to the same standards as GWS PressureWave™ and Challenger™ vessels, with a high-grade butyl diaphragm, chromed steel water connection and brass air valve with O-ring sealed cap. The vertical models stand on a rigid base, so the HWB-130LV is floor-standing with no wall bracket needed.
Key features
Typical applications
Technical specifications
| Brand / Series | GWS — HeatWave™ |
| Model | HWB-130LV |
| Type | Vertical, freestanding on integral base |
| Nominal volume | 130 L / 34.3 US gal |
| Connection | 1″ BSPP, chromed steel |
| Factory pre-charge | 1.5 bar / 22 psi |
| Max operating pressure | 6 bar / 87 psi |
| Operating temperature | −10 °C (avoid freezing) to +99 °C |
| Diaphragm | High-grade butyl |
| Air valve | Brass, O-ring sealed cap |
| Finish | Two-part polyurethane over epoxy primer, grey |
| Height (A) | 958 mm |
| Diameter (B) | 430 mm |
| Gross weight | 18.9 kg |
| Suitable for | Closed-loop, non-potable hydronic heating only |
Frequently asked questions
What does a heating expansion vessel do?
Water expands as a heating system warms up. The vessel’s air-charged chamber takes up that extra volume, so system pressure stays steady and the relief valve doesn’t lift every time the heating comes on.
Can I use it on a drinking-water or booster system?
No. HeatWave™ vessels are for closed-loop, non-potable heating only. For drinking water or pump boosting, use a potable vessel such as the GWS PressureWave™ PWB-130LV.
What should the pre-charge be set to?
It arrives at 1.5 bar. Check it with the vessel empty and set it to your system’s cold fill pressure before filling.
Can I use antifreeze?
Yes, propylene glycol at concentrations up to 50%. GWS advise avoiding ethylene glycol.
Does it need a wall bracket?
No. The HWB-130LV stands on its own rigid base. Place it on a level floor that can take its filled weight.
-
