Pedrollo PV 81 Three Phase 2100620 - Anglian Pumping Services

Name: Pedrollo PV 81 Three Phase 2100620
Brand: Pedrollo
SKU: 2100620
Price: 562.8 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

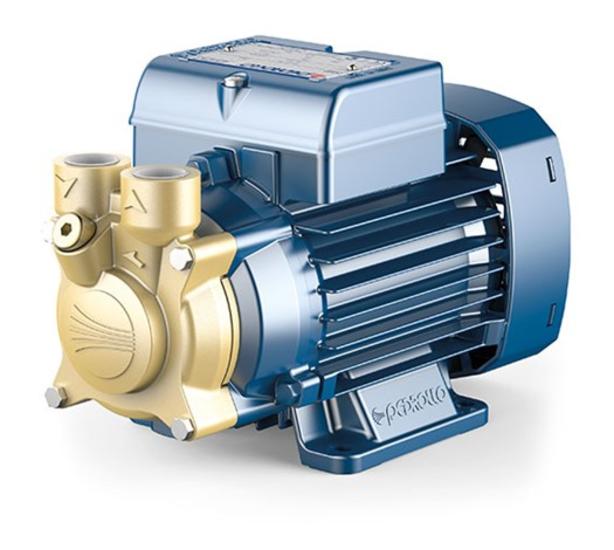

The Pedrollo PV 81 is a brass-bodied peripheral pump. It has a 0.37 kW (0.5 HP) motor on a 400 V three-phase supply. It delivers up to 17 l/min and 86 m head.

The compact brass construction resists rust and oxidation. It suits industrial uses such as cooling and air conditioning.

17l/min

Max flow

86m

Max head

0.37kW

0.5 HP

400V

Three Phase

Brass pump bodyUp to +90 °C½″ portsInverter readyCode 2100620

Full Description

More about this product

Full Description

Product overview

The Pedrollo PV 81 is a brass-bodied peripheral pump with a 0.37 kW (0.5 HP) motor. It runs on a 400 V three-phase supply. It covers 2 to 17 l/min, with a working head of 75 m down to 6 m.

Pedrollo design the PV to transfer clean water free from abrasive particles. The compact brass build resists rust and oxidation. It suits cooling and air conditioning.

17l/min

Max flow

86m

Max head

0.37kW

0.5 HP

400V

Three Phase

Key features

Brass construction

Brass pump body, seal cover and impeller resist rust and oxidation.

Hot water

Handles liquids from −10 °C to +90 °C.

Inverter ready

Pedrollo design the IE3 motor to run with inverters, quietly and stably.

10 bar rating

Maximum working pressure of 10 bar.

Typical applications

Cooling

Cooling circuits.

Air conditioning

Air conditioning systems.

Industrial transfer

Transfer of clean water in industry.

Technical specifications

Brand / Series	Pedrollo — PV
Model	PV 81
Pedrollo code	2100620
Supply	400 V three-phase
Motor power (P2)	0.37 kW / 0.5 HP
Motor	230/400 V three-phase motor, IE3 efficiency
Flow range	2–17 l/min
Head range	75–6 m
Current	2.1 A at 230 V / 1.2 A at 400 V
Maximum head	86 m (50 Hz)
Pump body	Brass with ISO 228/1 threaded ports
Seal cover	Brass
Motor bracket	Aluminium
Impeller	Brass, radial peripheral vane
Mechanical seal	ST1-12, Ø 12 mm, silicon carbide / graphite / NBR
Motor shaft	AISI 431 stainless steel
Ports	½″ suction, ½″ delivery
Suction lift	Manometric suction head up to 8 m
Liquid temperature	−10 °C to +90 °C
Ambient temperature	−10 °C to +50 °C
Maximum working pressure	10 bar
Insulation / protection	Class F / IP X4, continuous duty S1
Liquid	Clean water free from abrasive particles
Weight	6.9 kg
Available on request	Mechanical seal options; rotated pump body; other voltages and 60 Hz

PV range

Model	Code	Supply	Power	Flow	Head
PVm 55	2100540	Single Phase	0.18 kW / 0.25 HP	2–10 l/min	35–5 m
PVm 60	2100550	Single Phase	0.37 kW / 0.5 HP	2–33 l/min	41–6 m
PVm 81	2100560	Single Phase	0.37 kW / 0.5 HP	2–17 l/min	75–6 m
PVm 65	2100570	Single Phase	0.55 kW / 0.75 HP	2–40 l/min	55–7 m
PVm 70	2100580	Single Phase	0.75 kW / 1 HP	2–45 l/min	70–7 m
PVm 90	2100590	Single Phase	0.75 kW / 1 HP	2–36 l/min	98–7 m
PV 55	2100600	Three Phase	0.18 kW / 0.25 HP	2–10 l/min	35–5 m
PV 60	2100610	Three Phase	0.37 kW / 0.5 HP	2–33 l/min	41–6 m
PV 81	2100620	Three Phase	0.37 kW / 0.5 HP	2–17 l/min	75–6 m
PV 65	2100630	Three Phase	0.55 kW / 0.75 HP	2–40 l/min	55–7 m
PV 70	2100640	Three Phase	0.75 kW / 1 HP	2–45 l/min	70–7 m
PV 90	2100650	Three Phase	0.75 kW / 1 HP	2–36 l/min	98–7 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

How hot can the water be?

Up to +90 °C.

Will it rust?

No. The brass construction resists rust and oxidation.

Can it run on an inverter?

Yes. Pedrollo design the three-phase PV to work with inverters.

Downloads

Data Sheet PDF
Download

Delivery Information

Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.

Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).

Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.

Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.

Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.

Frequently Asked Questions

Quick answers to common questions about the Pedrollo PV 81 Three Phase 2100620. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What is a peripheral pump?

A peripheral pump uses a small impeller and peripheral channel to generate relatively high pressure at modest flow rates.

What applications suit peripheral pumps?

They are commonly used for clean-water transfer and pressure applications where high head and comparatively low flow are required.

Can peripheral pumps handle abrasive liquids?

Generally they are intended for clean, non-abrasive liquids. Check the specific pump’s permitted liquid properties before use.
