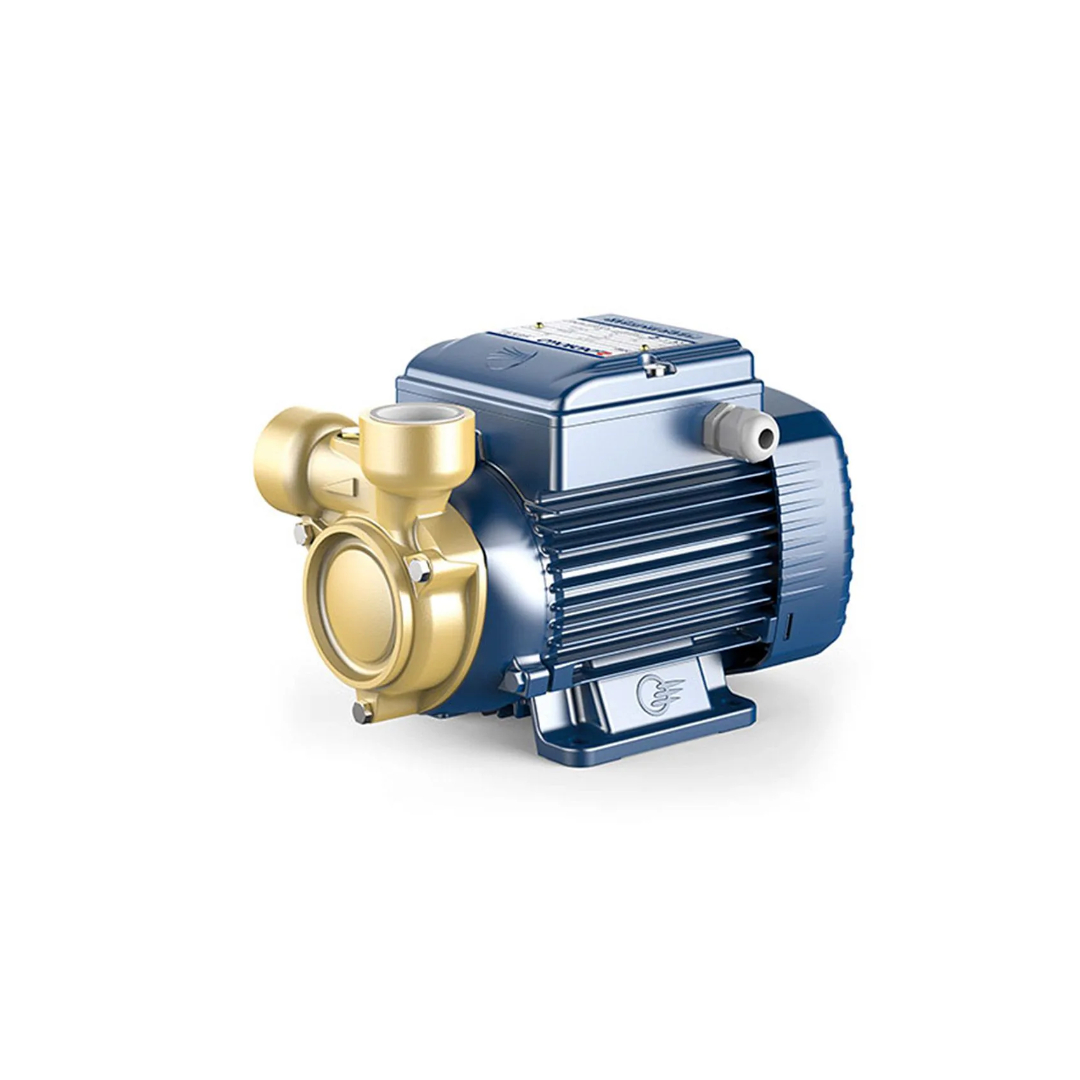

Name: Pedrollo PQm 60-Bs Single Phase 2100480
Brand: Pedrollo
SKU: 2100480
Price: 357.6 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo PQm 60-Bs is a 0.3 kW (0.4 HP) peripheral pump on a 230 V single-phase supply, delivering up to 40 l/min and 43 m head. Peripheral impeller pumps give high pressure from a small, simple pump.

Part of Pedrollo’s PQ range, for small pressure sets, transfer and washing where pressure matters more than flow.

40l/min

Max flow

43m

Max head

0.3kW

0.4 HP

230V

Single Phase

Peripheral impellerHigh pressure, low flowCompactSingle & three-phaseCode 2100480

Full Description

More about this product

Full Description

Product overview

The Pedrollo PQm 60-Bs is a 0.3 kW (0.4 HP) peripheral pump on a 230 V single-phase supply, covering 2 to 40 l/min with a working head of 43 m down to 5 m. The peripheral (turbine) impeller builds pressure in a single stage, so the pump is compact and simple.

PQ pumps suit small domestic pressure sets, boiler feed, transfer and washing duties with clean water, and the Bs (brass body) and PPS versions extend the range to liquids that would attack cast iron. Install indoors or under cover.

40l/min

Max flow

43m

Max head

0.3kW

0.4 HP

230V

Single Phase

Key features

Peripheral impeller

High head from a single small impeller.

Compact

Small footprint, easy to fit in cupboards and plant rooms.

Body options

Cast iron standard; brass (Bs) and PPS technopolymer versions for other liquids.

Single or three-phase

PQm single-phase 230 V with thermal protection, or PQ three-phase 400 V.

Simple and reliable

Few parts, easy to service.

Continuous duty

Rated S1 for continuous running.

Typical applications

Small pressure sets

Domestic boosting with a vessel and pressure switch.

Boiler and heating feed

Feed and transfer on heating and process plant.

Washing

Wash-down and cleaning duties needing pressure.

Transfer

Moving clean liquids between tanks.

Technical specifications

Brand / Series	Pedrollo — PQ
Model	PQm 60-Bs
Pedrollo code	2100480
Supply	230 V single-phase
Motor power (P2)	0.3 kW / 0.4 HP
Motor	Single-phase motor with built-in thermal overload protection
Flow range	2–40 l/min
Head range	43–5 m
Pump body	Brass
Impeller	Brass
Liquid	Clean water, not chemically aggressive to the pump materials
Duty	Continuous S1

PQ range

Model	Code	Supply	Power	Flow	Head
PQm 60	2100290	Single Phase	0.3 kW / 0.4 HP	5–40 l/min	38–5 m
PQ 60	2100380	Three Phase	0.3 kW / 0.4 HP	5–40 l/min	38–5 m
PQm 61	2100295	Single Phase	0.3 kW / 0.4 HP	5–40 l/min	38–5 m
PQ 61	2100385	Three Phase	0.3 kW / 0.4 HP	5–40 l/min	38–5 m
PQm 65	2100300	Single Phase	0.55 kW / 0.75 HP	5–50 l/min	50–8 m
PQ 65	2100390	Three Phase	0.55 kW / 0.75 HP	5–50 l/min	50–8 m
PQm 80	2100320	Single Phase	0.75 kW / 1 HP	5–50 l/min	66–22 m
PQ 80	2100410	Three Phase	0.75 kW / 1 HP	5–50 l/min	66–22 m
PQm 90	2100330	Single Phase	0.75 kW / 1 HP	5–40 l/min	82–5 m
PQ 90	2100420	Three Phase	0.75 kW / 1 HP	5–40 l/min	82–5 m
PQm 100	2100340	Single Phase	1.1 kW / 1.5 HP	5–70 l/min	80–15 m
PQ 100	2100430	Three Phase	1.1 kW / 1.5 HP	5–70 l/min	80–15 m
PQm 200	2100350	Single Phase	1.5 kW / 2 HP	5–80 l/min	86–10 m
PQ 200	2100440	Three Phase	1.5 kW / 2 HP	5–80 l/min	86–10 m
PQm 300	2100360	Single Phase	2.2 kW / 3 HP	5–90 l/min	95–10 m
PQ 300	2100450	Three Phase	2.2 kW / 3 HP	5–90 l/min	95–10 m
PQ 3000 MF	2100470	Three Phase	2.2 kW / 3 HP	5–50 l/min	180–50 m
PQm 81 – PPS	2112460	Single Phase	0.55 kW / 0.75 HP	2–22 l/min	83.5–10 m
PQ 81 – PPS	2112470	Three Phase	0.55 kW / 0.75 HP	2–22 l/min	83.5–10 m
PQm 60-Bs	2100480	Single Phase	0.3 kW / 0.4 HP	2–40 l/min	43–5 m
PQ 60-Bs	2100510	Three Phase	0.3 kW / 0.4 HP	2–40 l/min	43–5 m
PQm 65-Bs	2100490	Single Phase	0.55 kW / 0.75 HP	1–46 l/min	62–8 m
PQ 65-Bs	2100520	Three Phase	0.55 kW / 0.75 HP	1–46 l/min	62–8 m
PQm 81-Bs	2100500	Single Phase	0.55 kW / 0.75 HP	1–24 l/min	92–5 m
PQ 81-Bs	2100530	Three Phase	0.55 kW / 0.75 HP	1–24 l/min	92–5 m
PQm 80-Bs	2110970	Single Phase	0.75 kW / 1 HP	2–50 l/min	69–5 m
PQ 80-Bs	2110980	Three Phase	0.75 kW / 1 HP	2–50 l/min	69–5 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

Is it self-priming?

No. It needs a flooded suction or a foot valve. The PKS range is the self-priming peripheral pump.

What is the Bs version?

The same pump with a brass body instead of cast iron, for softened water and liquids that would corrode cast iron.

What is the PPS version?

A pump body in PPS technopolymer with threaded brass inserts instead of cast iron, with the same brass impeller.

What water can it handle?

Clean water without abrasive particles; peripheral impellers have tight clearances and do not tolerate grit.
