Calpeda CT Peripheral Pump (3 Phase)
Calpeda CT61/A Peripheral Pump (3 Phase) 70220010000
- Established 1975
- Trusted by thousands of customers

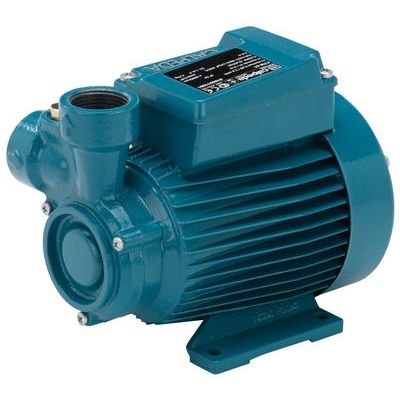

Calpeda CT 61/A is a Calpeda close-coupled peripheral pump, part number 70220010000. It delivers up to 38.3 l/min (2.3 m³/h) and a maximum head of 48 m (4.7 bar), driven by a 0.33 kW motor (three-phase 230/400 V 50 Hz).
The Calpeda CT is a compact close-coupled peripheral pump with a patented single-piece motor casing and pump-side wall, protected against water entering the motor from outside. It gives high head at low flow.
More about this product
Calpeda CT 61/A overview
Calpeda CT 61/A is a Calpeda close-coupled peripheral pump, part number 70220010000. It delivers up to 38.3 l/min (2.3 m³/h) and a maximum head of 48 m (4.7 bar), driven by a 0.33 kW motor (three-phase 230/400 V 50 Hz).
The Calpeda CT is a compact close-coupled peripheral pump with a patented single-piece motor casing and pump-side wall, protected against water entering the motor from outside. It gives high head at low flow.
Specifications
| Model | Calpeda CT 61/A |
|---|---|
| Calpeda part number | 70220010000 |
| Motor power (P2) | 0.33 kW (0.45 HP) |
| Supply | Three-phase 230/400 V 50 Hz |
| Rated current | 1.9 A at 230 V / 1.1 A at 400 V |
| Max. flow | 38.3 l/min (2.3 m³/h) at 3 m |
| Max. head | 48 m (4.7 bar) |
| Connections | G 1 suction and delivery |
| Liquid temperature | up to 60 °C |
| Ambient temperature | up to 40 °C |
| Total suction lift | up to 7 m |
| Duty | Continuous (S3 60% for three-phase) |
| Weight | 4.7 kg |
Performance
Total head at each flow, from the Calpeda CT 50 Hz data sheet (approx. rated speed, clean cold water).
| Flow (l/min) | Flow (m³/h) | Head (m) | Pressure (bar) |
|---|---|---|---|
| 0 (shut-off) | 0 | 48 | 4.7 |
| 8 | 0.48 | 41 | 4 |
| 10 | 0.6 | 38.5 | 3.8 |
| 12.5 | 0.75 | 35.5 | 3.5 |
| 16 | 0.96 | 31 | 3 |
| 20 | 1.2 | 25.5 | 2.5 |
| 25 | 1.5 | 19 | 1.9 |
| 31.5 | 1.89 | 11 | 1.1 |
| 38.3 | 2.3 | 3 | 0.3 |
Construction and features
- Peripheral (regenerative) impeller for high head at low flow
- Patented single-piece motor casing and pump-side wall
- Brass casing cover and impeller
- 2-pole induction motor, 50 Hz, approx. 2900 rpm, insulation class F, IP54
- IE2 efficiency class motors
Materials
| Component | Material |
|---|---|
| Pump casing | Cast iron GJL 200 EN 1561 (bronze CC480K EN 1982 on B-CT) |
| Casing cover | Brass CW617N EN 12167 |
| Impeller | Brass CW617N EN 12167 |
| Shaft | Steel AISI 430F |
| Mechanical seal | Carbon / ceramic / NBR |
Applications
- Clean liquids without abrasives or suspended solids, non-explosive and not aggressive to the pump materials
- Boosting mains pressure (observe local regulations)
- Cooling and air-conditioning machines and equipment
- Circulation
Frequently asked questions
Technical data: Calpeda CT data sheet, 50 Hz. Performance tolerances to UNI EN ISO 9906:2012.
-
Manual PDFDownload
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Ebara PRA – PRN pumps The silent PRA 0.50 M cast iron peripheral pump from Ebara is suitable for domestic uses, boilers power supply and…
Ebara PRA 0.50 M peripheral pump, 0.37 kW, single-phaseThe Ebara PRA is a peripheral (turbine) pump with a cast iron casing and brass impeller, giving…
Frequently Asked Questions
Quick answers to common questions about the Calpeda CT61/A Peripheral Pump (3 Phase) 70220010000. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a peripheral pump?
A peripheral pump uses a small impeller and peripheral channel to generate relatively high pressure at modest flow rates.
What applications suit peripheral pumps?
They are commonly used for clean-water transfer and pressure applications where high head and comparatively low flow are required.
Can peripheral pumps handle abrasive liquids?
Generally they are intended for clean, non-abrasive liquids. Check the specific pump’s permitted liquid properties before use.
What types of Calpeda pumps can I explore?
Calpeda produces pumps for water supply, pressure boosting, drainage and circulation. Choose a model according to the required flow, head and liquid.
Are Calpeda pumps suitable for commercial installations?
Yes. Calpeda offers pump ranges for domestic, commercial and industrial duties; suitability depends on the individual model and duty point.
How do I choose a replacement Calpeda pump?
Check the existing pump model, supply voltage, connection dimensions, flow rate and required head before selecting a replacement.
