Name: Pedrollo MKm 3/6 Single Phase 2104960
Brand: Pedrollo
SKU: 2104960
Price: 1376.4 GBP
Availability: InStock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

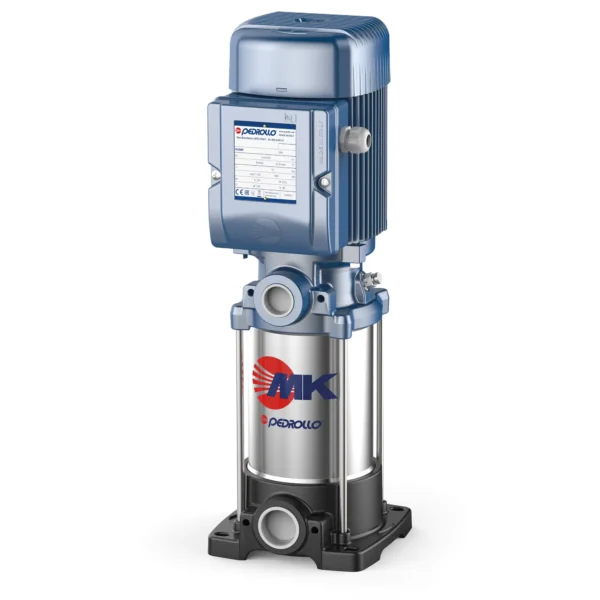

The Pedrollo MKm 3/6 is a 1.5 kW (2 HP) vertical multi-stage centrifugal pump on a 230 V single-phase supply, delivering up to 80 l/min and 103 m head. Several impellers in series build pressure in a compact, upright pump.

Part of Pedrollo’s MK range, with a cast iron and AISI 304 stainless steel body, Noryl impellers and diffusers, and 1¼″ × 1″ threaded ports.

80l/min

Max flow

103m

Max head

1.5kW

2 HP

230V

Single Phase

Vertical multi-stageUp to 11 barCast iron & AISI 304Single & three-phaseCode 2104960

Full Description

More about this product

Full Description

Product overview

The Pedrollo MKm 3/6 is a 1.5 kW (2 HP) vertical multi-stage centrifugal pump on a 230 V single-phase supply, covering 10 to 80 l/min with a working head of 103 m down to 58 m. Several impellers in series build pressure in a compact, upright pump.

The MK range comes in three hydraulic sizes, the MK 3, MK 5 and MK 8, each in several versions, so you can match the flow and head your system needs. The suction body and delivery port are cast iron with cataphoresis treatment, with an AISI 304 stainless steel outer sleeve, Noryl impellers and diffusers, AISI 304 diaphragms with wear rings and an AISI 431 shaft. Rated for liquid from −10 to +60 °C and a maximum working pressure of 11 bar. An optional flange kit (2113430) is available.

80l/min

Max flow

103m

Max head

1.5kW

2 HP

230V

Single Phase

Key features

Vertical multi-stage

Several impellers in series for high head from a compact, upright pump.

Cast iron and stainless steel

Cast iron suction body and delivery port with an AISI 304 stainless steel outer sleeve.

Efficient motors

MKm 230 V IE2, or MK 400 V IE3 built to run on an inverter.

11 bar rated

Maximum working pressure of 11 bar, liquid up to +60 °C.

Typical applications

Pressure boosting

Pressure sets with a vessel and pressure switch or controller.

Water supply

Domestic, civil and agricultural supply.

Irrigation

Irrigation where steady pressure is needed.

Technical specifications

Brand / Series	Pedrollo — MK
Model	MKm 3/6
Pedrollo code	2104960
Supply	230 V single-phase
Motor power (P2)	1.5 kW / 2 HP
Motor	230 V single-phase IE2 motor with built-in thermal protection
Flow range	10–80 l/min
Head range	103–58 m
Pump body	Cast iron and AISI 304 stainless steel
Impeller	Noryl
Diffusers	Noryl
Motor shaft	AISI 431 stainless steel
Mechanical seal	Graphite / ceramic / NBR
Ports	1¼″ suction, 1″ delivery (ISO 228/1 threaded)
Liquid temperature	−10 to +60 °C
Maximum working pressure	11 bar
Manometric suction head	Up to 7 m
Protection	IP X4
Duty	Continuous S1
Liquid	Clean water, not chemically aggressive to the pump materials

MK range

Model	Code	Supply	Power	Flow	Head
MKm 3/3	2104940	Single Phase	0.75 kW / 1 HP	10–80 l/min	51.5–29 m
MK 3/3	2105040	Three Phase	0.75 kW / 1 HP	10–80 l/min	51.5–29 m
MKm 3/5	2104950	Single Phase	1.1 kW / 1.5 HP	10–80 l/min	85–48 m
MK 3/5	2105050	Three Phase	1.1 kW / 1.5 HP	10–80 l/min	85–48 m
MKm 3/6	2104960	Single Phase	1.5 kW / 2 HP	10–80 l/min	103–58 m
MK 3/6	2105060	Three Phase	1.5 kW / 2 HP	10–80 l/min	103–58 m
MKm 5/4	2104970	Single Phase	0.75 kW / 1 HP	20–120 l/min	54–17 m
MK 5/4	2105070	Three Phase	0.75 kW / 1 HP	20–120 l/min	54–17 m
MKm 5/5	2104980	Single Phase	1.1 kW / 1.5 HP	20–120 l/min	67.5–21.5 m
MK 5/5	2105080	Three Phase	1.1 kW / 1.5 HP	20–120 l/min	67.5–21.5 m
MKm 5/7	2104990	Single Phase	1.5 kW / 2 HP	20–120 l/min	95–30 m
MK 5/7	2105090	Three Phase	1.5 kW / 2 HP	20–120 l/min	95–30 m
MKm 5/8	2105000	Single Phase	2.2 kW / 3 HP	20–120 l/min	108–34 m
MK 5/8	2105100	Three Phase	2.2 kW / 3 HP	20–120 l/min	108–34 m
MKm 8/4	2105010	Single Phase	1.1 kW / 1.5 HP	40–180 l/min	53.5–12 m
MK 8/4	2105110	Three Phase	1.1 kW / 1.5 HP	40–180 l/min	53.5–12 m
MKm 8/5	2105020	Single Phase	1.5 kW / 2 HP	40–180 l/min	67–15.5 m
MK 8/5	2105120	Three Phase	1.5 kW / 2 HP	40–180 l/min	67–15.5 m
MKm 8/6	2105030	Single Phase	2.2 kW / 3 HP	40–180 l/min	80–18.5 m
MK 8/6	2105130	Three Phase	2.2 kW / 3 HP	40–180 l/min	80–18.5 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

Which MK do I need?

Choose the size for your flow (MK 3 up to 80 l/min, MK 5 up to 120 l/min, MK 8 up to 180 l/min), then the version that gives the head you need. Send us your duty and we’ll match it.

Is a flange kit included?

No. The pump has 1¼″ suction and 1″ delivery threaded ports. Flange kit 2113430 is available separately.

Single or three-phase?

Every MK comes as a single-phase MKm (230 V, IE2) and a three-phase MK (400 V, IE3). The three-phase motors are designed to work with inverters.
