Name: Pedrollo FCR 90/5 Three Phase 2104580
Brand: Pedrollo
SKU: 2104580
Price: 1345.2 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

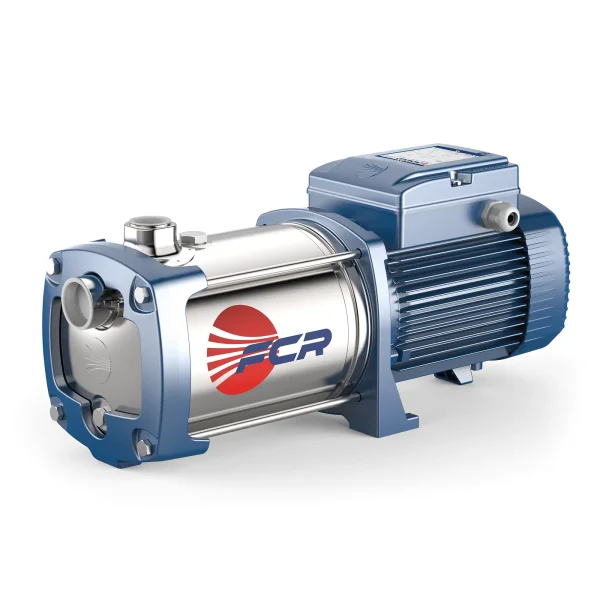

The Pedrollo FCR 90/5 is a 1.1 kW (1.5 HP) horizontal multi-stage centrifugal pump on a 400 V three-phase supply, delivering up to 90 l/min and 78 m head. Several impellers in series give high pressure from a quiet, compact pump.

Part of Pedrollo’s FCR range, with an AISI 304 stainless steel pump body, for water supply, pressure boosting, irrigation and washing.

90l/min

Max flow

78m

Max head

1.1kW

1.5 HP

400V

Three Phase

Multi-stageStainless steelHigh headSingle & three-phaseCode 2104580

Full Description

More about this product

Full Description

Product overview

The Pedrollo FCR 90/5 is a 1.1 kW (1.5 HP) horizontal multi-stage centrifugal pump for clean water on a 400 V three-phase supply, covering 5 to 90 l/min with a working head of 78 m down to 38 m. Each stage adds pressure, so the FCR reaches heads that a single-impeller pump of the same power cannot, while staying quiet and compact.

FCR pumps have an AISI 304 stainless steel body and hydraulics, so they suit domestic and commercial water supply, pressure sets, irrigation, washing systems and light industrial transfer where a clean, quiet, corrosion-resistant pump is wanted. Install indoors or under cover.

90l/min

Max flow

78m

Max head

1.1kW

1.5 HP

400V

Three Phase

Key features

Multi-stage hydraulics

Several impellers in series for high head at low noise.

Stainless steel body

AISI 304 pump body resists corrosion and keeps the water clean.

Quiet running

Multi-stage design runs smoother and quieter than a single-impeller pump of the same duty.

Single or three-phase

FCRm single-phase 230 V with thermal protection, or FCR three-phase 400 V.

Wide range

From 0.3 kW to 7.5 kW and up to 800 l/min across the FCR range.

Continuous duty

Rated S1 for continuous running on pressure sets.

Typical applications

Pressure boosting

Domestic and commercial pressure sets with a vessel and controller.

Water supply

Supply from tanks and cisterns to buildings and sites.

Irrigation

Sprinkler and drip irrigation of gardens and land.

Washing systems

Wash-down and washing plant needing steady pressure.

Technical specifications

Brand / Series	Pedrollo — FCR
Model	FCR 90/5
Pedrollo code	2104580
Supply	400 V three-phase
Motor power (P2)	1.1 kW / 1.5 HP
Motor	Three-phase motor (IE2 or IE3 class to IEC 60034-30-1, by size)
Flow range	5–90 l/min
Head range	78–38 m
Pump body	AISI 304 stainless steel
Impeller and diffusers	AISI 304 stainless steel
Liquid	Clean water, not chemically aggressive to the pump materials
Duty	Continuous S1

FCR 90 sizes

Model	Code	Supply	Power	Flow	Head
FCRm 90/5	2104490	Single Phase	1.1 kW / 1.5 HP	5–90 l/min	78–38 m
FCR 90/5	2104580	Three Phase	1.1 kW / 1.5 HP	5–90 l/min	78–38 m
FCRm 90/6	2104500	Single Phase	1.5 kW / 2 HP	5–90 l/min	94–45 m
FCR 90/6	2104590	Three Phase	1.5 kW / 2 HP	5–90 l/min	94–45 m
FCRm 90/7	2104510	Single Phase	1.8 kW / 2.5 HP	5–90 l/min	110–53 m
FCR 90/7	2104600	Three Phase	1.8 kW / 2.5 HP	5–90 l/min	110–53 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

Is it self-priming?

No. The FCR needs a flooded suction or a foot valve on the suction pipe. For suction lift, look at the Pedrollo PLURIJET self-priming multi-stage range.

Can I use it on a pressure set?

Yes. Pair it with a pressure vessel and pressure switch, or a Pedrollo Steadypres inverter for constant pressure and soft starting.

What water can it handle?

Clean water and liquids that are not chemically aggressive to stainless steel, without abrasive particles.

Why choose a multi-stage pump?

For the same power a multi-stage pump gives more pressure and runs quieter than a single-impeller centrifugal pump, which matters on pressure sets in or near living space.
