Salamander TankBoost CAT 5 TNK-C5
Salamander TankBoost 200l Additional Water Storage Unit CAT 5 TNK-200-C5
- Established 1975
- Trusted by thousands of customers

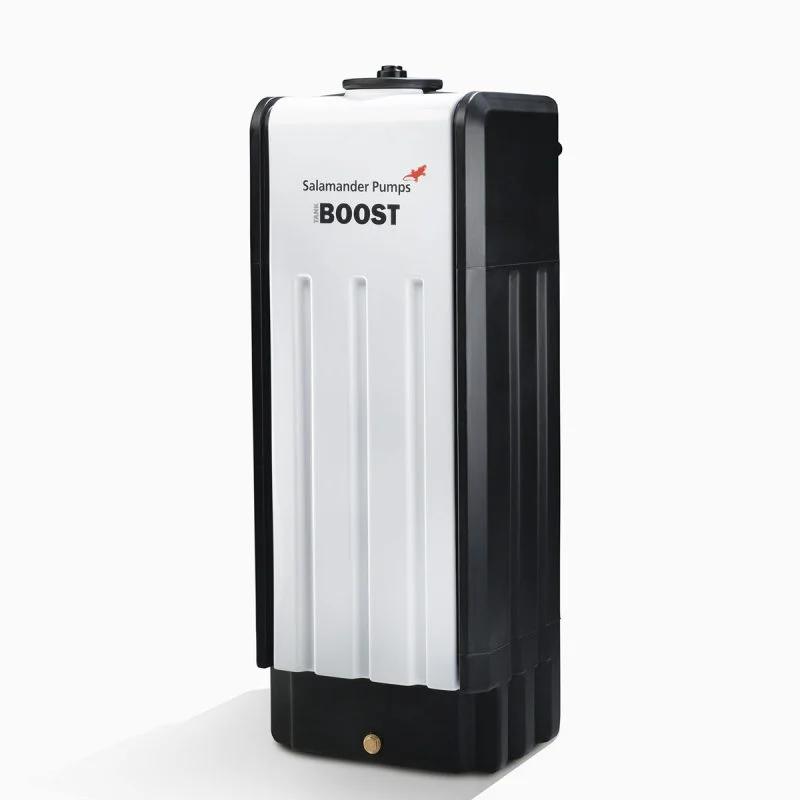

Add the TankBoost 200l Additional Water Storage Unit CAT 5 to a primary 200l TankBoost CAT 5 unit to increase water capacity with ease.
Please note that the pump is not included.
More about this product
Designed specifically to be compatible with a 200l TankBoost CAT 5 counterpart, this Water Storage Unit increases the volume of the TankBoost, and allows you to use multiple water outlets simultaneously, without compromising on water pressure or flow.

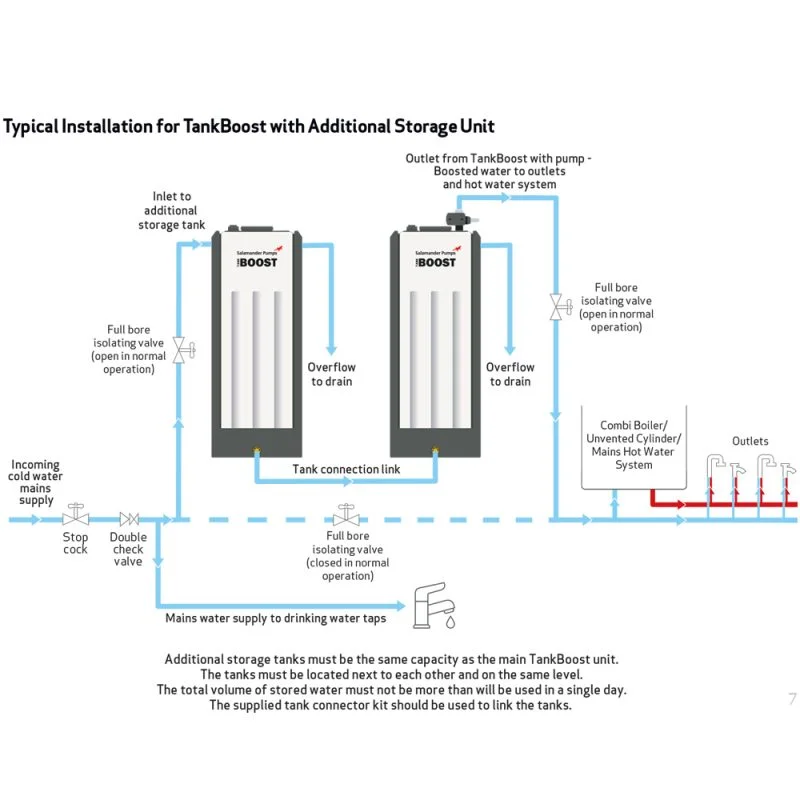

- Use the tank construction kit provided to determine the correct distance between the tanks
- Tanks should be no more than one metre apart
- When linking tanks, the storage tank should always have the inlet as you want the water to flow through both tanks
- The ball valve should be removed from the TankBoost and fitted to the storage inlet
- Please note that the additional storage tank size must match the primary TankBoost unit to avoid water imbalance
- Please note that the pump is not included in this purchase
- Warranty: 2 years
- Tank size: 200l

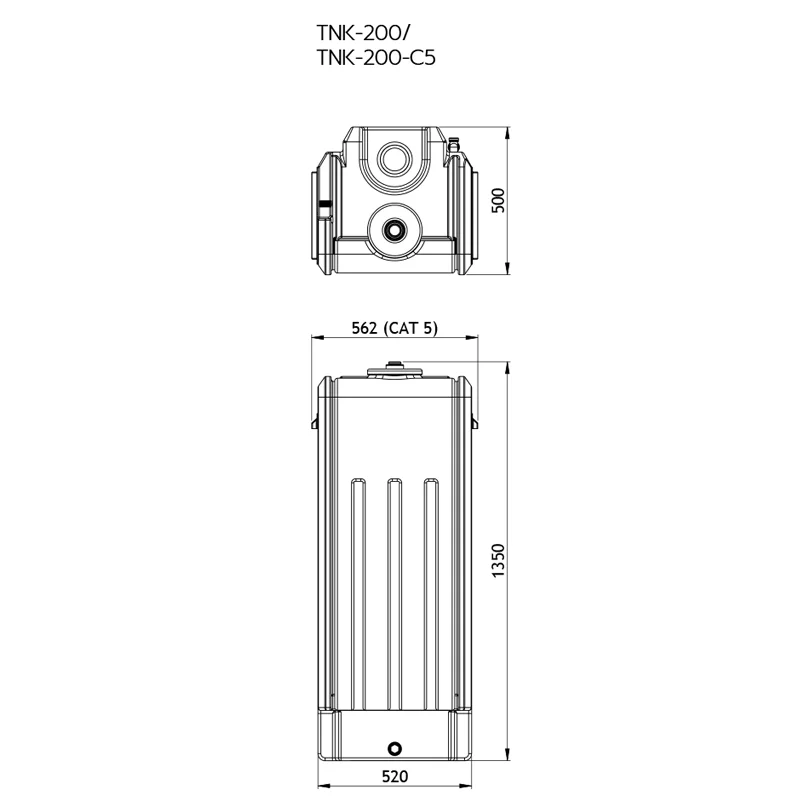

- Dimensions: 1350mm x 520mm x 500mm
- Empty weight: 32.9kg
- Filled weight: 232.9kg
- Inlet connection: 1/2” BSP Male
- Outlet connection: via Linking Kit (included)
- Water temperature: 4°C – 20°C
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
The Salamander TankBoost 200l CAT 5 is an all-in-one unit, with a water storage tank with a type AB air gap and an integrated submersible…
Related products
Add the TankBoost 100l Additional Water Storage Unit CAT 5 to a primary 100l TankBoost CAT 5 unit to increase water capacity with ease. Please…
Add the TankBoost 450l Additional Water Storage Unit CAT 5 to a primary 450l TankBoost CAT 5 unit to increase water capacity with ease. Please…
Add the TankBoost 350l Additional Water Storage Unit CAT 5 to a primary 350l TankBoost CAT 5 unit to increase water capacity with ease. Please…
Frequently Asked Questions
Quick answers to common questions about the Salamander TankBoost 200l Additional Water Storage Unit CAT 5 TNK-200-C5. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
