Grundfos UPA 15-90 N home booster 99539153
- Established 1975
- Trusted by thousands of customers

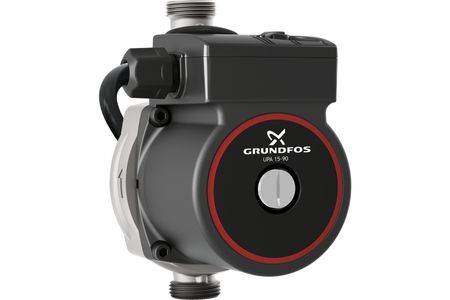

Grundfos UPA 15-90 N home booster pump with flow switch, 230 V
Compact in-line booster for raising low mains pressure to a single tap, shower, washing machine or combi boiler. The built-in flow switch starts the pump when water flows and stops it when the outlet closes.
More about this product
Applications
- Boosting low incoming water pressure in houses and flats
- Washing machines, combi boilers and electric showers
- Single taps and outlets on weak supplies
Specification
| Model | Grundfos UPA 15-90 N |
|---|---|
| Grundfos part number | 99539153 |
| Maximum head | 9 m (0.88 bar) |
| Rated duty point | 16 l/min (1 m³/h) at 5.46 m head |
| Supply voltage | 1 x 230 V, 50 Hz |
| Rated current | 0.48 A |
| Power input (P1) | 120 W |
| Connection | G 3/4″ |

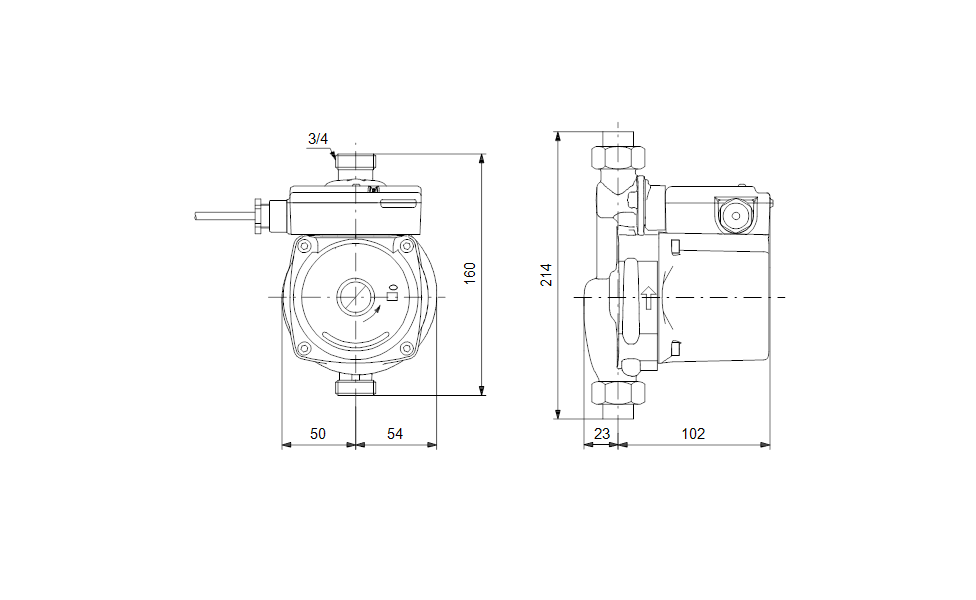

| Port-to-port length | 160 mm |
| Max. system pressure | PN 10 |
| Liquid temperature | 2 °C to +95 °C |
| Enclosure | IPX2D |
| Net weight | 2.69 kg |
Key features
Frequently asked questions
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
WaterBoost WB-Compact 3.0 Wall Dock Designed for effortless installation, the WaterBoost WB-Compact 3.0 Wall Dock provides a clean and professional solution for connecting your booster…
The WaterBoost WB-Compact 4.5 (ACM Series) is a compact variable speed inline mains pressure booster — designed to boost your incoming mains supply to up…
The WaterBoost WB-Compact 3.0 is a compact variable speed inline mains pressure booster that connects directly to the incoming mains supply — no tank, no…
Related products
Mainsboost MB Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and showers to…
Digital 4.5bar Water Mains Booster Pump The Digital charger pump can be used with any accumulator or pressure vessel inc GWS, Lowara, Grundfos and Stuart…
Mainsboost MB 130SV-3-22 44457 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Accumulator vessel connection kit to 22mm copper pipe. Including 1 1/2" socket, 1 1/2" x " bush, 22mm x 1" elbow, 1/2" cap. Accumulator technology…
The DAB Esybox with Esytank 500 is a complete, ready-to-install water pressure boosting system that solves three problems at once: low mains pressure, restricted mains…
Frequently Asked Questions
Quick answers to common questions about the Grundfos UPA 15-90 N home booster 99539153. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
What types of Grundfos pumps are available?
Grundfos offers circulators, booster pumps, borehole pumps, drainage pumps and other solutions for domestic and commercial systems.
How do I identify the correct Grundfos pump model?
Use the model name and product number on the pump nameplate, then check the electrical, hydraulic and connection specifications.
Can a Grundfos pump improve household water pressure?
A suitably selected Grundfos booster system can improve water pressure or flow, subject to the property’s water supply and installation requirements.
