Grundfos accumulator Vessels
24 litre accumulator vertical Grundfos GT-H-24-V 96528339
- Established 1975
- Trusted by thousands of customers

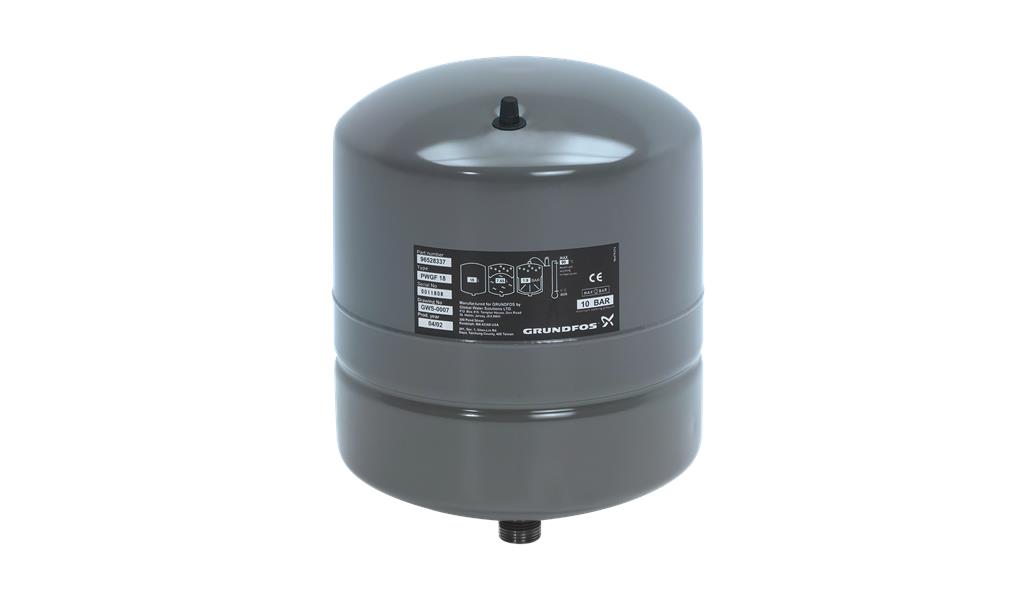

Grundfos GT-H-24 PN10 G1 V pressure tank
GT-H is a steel pressure tank with a non-toxic butyl rubber diaphragm with a precision-moulded polypropylene liner for air and water separation designed for drinking water applications. This 24 litre tank is pre-charged to 1.9 bar and rated to 10 bar.
More about this product
Specification
| Model | Grundfos GT-H-24 PN10 G1 V |
|---|---|
| Grundfos type key | GT-H-24 PN10 G1 V |
| Grundfos part number | 96528339 |
| Connections | G 1" |
| Tank volume | 24 litres |
| Pre-charge pressure | 1.9 bar |
| Diaphragm | Butyl |
| Tank material | Carbon steel / Polypropylene |
| Orientation | Vertical |
| Liquid temperature | 0 °C to +90 °C |
| Max. operating pressure | 10 bar |
| Approvals | CE, EAC |
| Net weight | 4.7 kg |
Key features
Frequently asked questions
Specifications
| Product name: | GT-H-24 PN10 G1 V |
| Product No: | 96528339 |
| EAN number: | 5700397133392 |
| Technical | |
|---|---|
| Membrane type: | Diaphragm |
| Materials | |
|---|---|
| Material: | Carbon steel / Polypropylene |
| Installation | |
|---|---|
| Maximum operating pressure: | 10 bar |
| Pre-pressure: | 1.9 bar |
| Size: | 24.0 |
| Liquid | |
|---|---|
| Maximum liquid temperature: | 90 °C |
| Others | |
|---|---|
| Net weight: | 4.7 kg |
| Gross weight: | 5.6 kg |
| Applicat. typ: | Standard |
| Danish VVS No.: | 398254724 |
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
Digital 4.5bar Water Mains Booster Pump The Digital charger pump can be used with any accumulator or pressure vessel inc GWS, Lowara, Grundfos and Stuart…
Mainsboost MB 250SV-3-22 44463 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Mainsboost MB 200SV-1-22 44458 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Mainsboost MB 130SV-2-22 44456 Mainsboost systems are designed to stablise water pressure and increase flow to combination boilers and unvented systems allowing multiple taps and…
Powertank SLIMLINE – Variable Speed Whole House Water Pressure Booster The Powertank Slimline range can fit through a standard doorway. This makes it very convenient…
Frequently Asked Questions
Quick answers to common questions about the 24 litre accumulator vertical Grundfos GT-H-24-V 96528339. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a mains pressure boosting system?
A mains pressure boosting system increases the pressure and flow of water from the incoming mains supply into a property. It typically combines a pump and a storage or expansion tank, drawing water from the mains and delivering it to taps, showers and appliances at a stronger, more consistent pressure. They are used where the incoming mains is too weak to serve modern outlets reliably.
When do I need a mains booster pump?
You normally need a mains booster if static mains pressure is below 1.5 to 2 bar, if showers run weakly when other taps are open, or if combi boilers struggle to deliver hot water. Anglian Pumping recommends checking static pressure at the stop tap before specifying a system, then choosing a model rated for the number of bathrooms and outlets in the property.
What size mains booster do I need for my home?
Sizing depends on the number of bathrooms, the type of fittings and the static mains pressure. As a guide, a 1 to 2 bathroom property with combi boiler or single shower often needs 1.6 to 3 bar boost. A 2 to 3 bathroom property typically needs 3 to 4.5 bar with an integral break tank. Larger homes need a tank-and-pump system such as the DAB Esybox with Esytank or a Powertank set.
What is an accumulator tank?
An accumulator tank is a pressurised vessel that connects directly to the mains supply and stores water under pressure. When a tap or shower opens, water discharges immediately from the vessel at full mains pressure rather than drawing only from the street main. This delivers stronger, more consistent flow at peak times. Accumulators have no pump and no moving parts so they are maintenance free and silent.
When should I use an accumulator instead of a pump?
An accumulator is the right solution when static mains pressure is adequate – above 2 bar – but flow is poor or drops during peak demand. It boosts available flow without adding a pump, energy use or noise. If static pressure is below 2 bar, a booster pump is needed instead, or an accumulator combined with a charge pump such as the WaterBoost ACF1.
What size accumulator do I need?
Accumulators are typically sized on a 60 per cent usable rule – a 300 litre vessel delivers around 180 litres of boosted water per cycle. As a guide, a 2 to 3 bedroom home suits a 300 litre vessel such as the GWS GCB-300LV. Larger 4 to 5 bedroom homes or properties with multiple bathrooms typically need 450 to 600 litres. Vertical models save floor space, horizontal models suit lofts and roof spaces.
What types of Grundfos pumps are available?
Grundfos offers circulators, booster pumps, borehole pumps, drainage pumps and other solutions for domestic and commercial systems.
How do I identify the correct Grundfos pump model?
Use the model name and product number on the pump nameplate, then check the electrical, hydraulic and connection specifications.
Can a Grundfos pump improve household water pressure?
A suitably selected Grundfos booster system can improve water pressure or flow, subject to the property’s water supply and installation requirements.
