Wilo Yonos Maxo Z PN6/PN10
Wilo Yonos MAXO-Z 65/0,5-12 PN6/10 340mm – 2175545
- Established 1975
- Trusted by thousands of customers

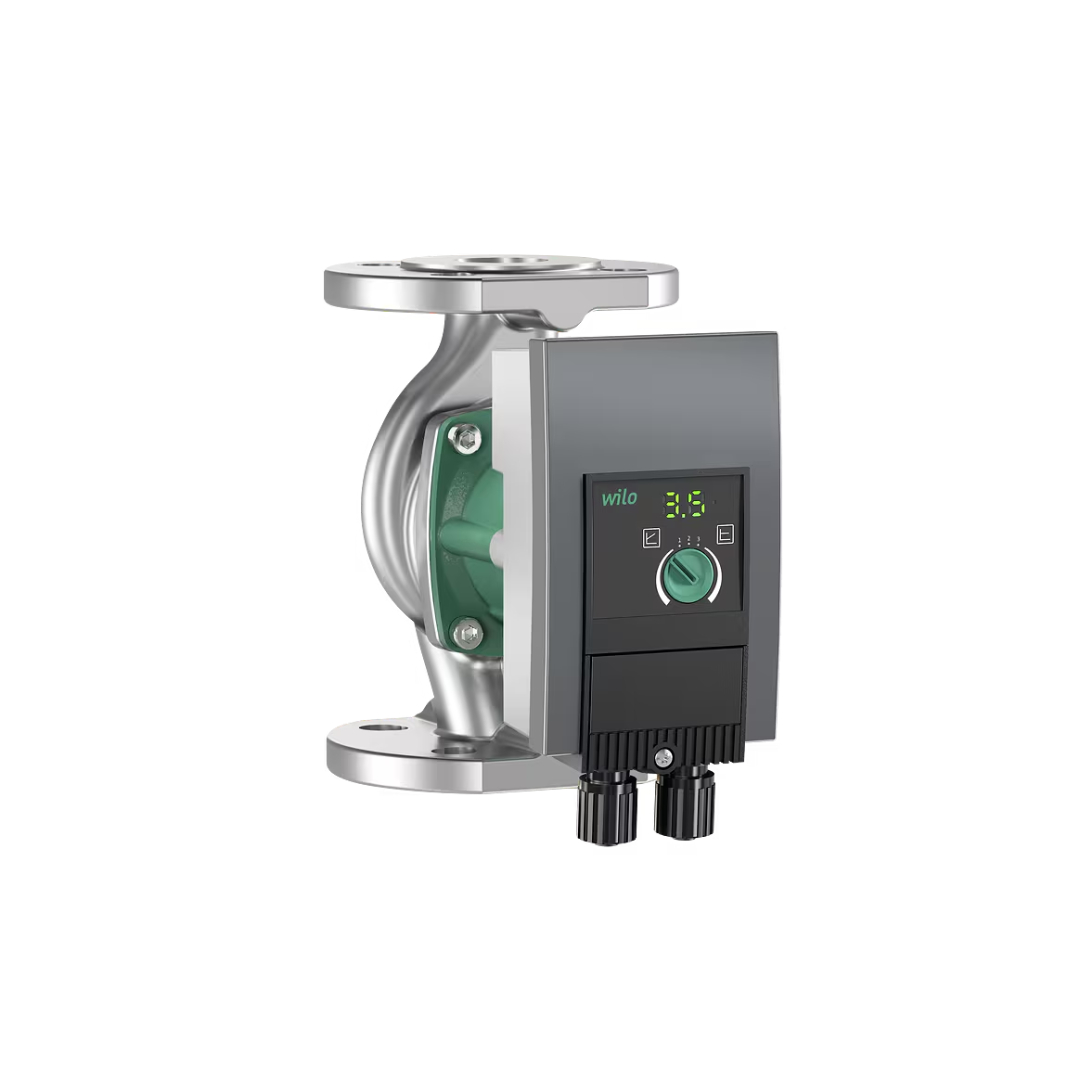

Wilo Yonos MAXO-Z 65/0,5-12 PN 6/10 glandless circulator, 230 V single-phase
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control.
0.67 kW motor.
More about this product
Overview
High-efficiency pump Wilo-Yonos MAXO-Z
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.
Specification
| Model | Wilo Yonos MAXO-Z 65/0,5-12 PN 6/10 |
|---|---|
| Part number | 2175545 |
| Series | Yonos MAXO-Z |
| Supply | 230 V single-phase, 50/60 Hz |
| Rated power P2 | 0.67 kW |
| Max. power consumption P1 | 800 W |
| Min. power consumption P1 | 40 W |
| Rated current | 3.5 A |
| Speed range | 800 rpm to 2800 rpm |
| Max. operating pressure | 10 bar |
| Fluid temperature | 0 °C to 80 °C |
| Ambient temperature | 0 °C to 40 °C |
| Energy efficiency index (EEI) | ≤ 0.20 |
| Protection class | IPX4D |
| Insulation class | F |
| Motor protection | Internal protection overheating and overcurrent |
| Max. water hardness | 3.57 mmol/l (20°dH) |
Materials
| Pump housing | Stainless steel |
|---|---|
| Impeller | PPS-GF40 |
| Shaft | Stainless steel |
| Bearing | Carbon, synthetic resin-impregnated |
Dimensions and weight
| Port-to-port length | 340 mm |
|---|---|
| Length × width × height | 340 × 185 × 428 mm |
| Net weight | 30.6 kg |
Features and equipment
Standard-equipped with
- Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault signal light and contact for collective fault signal
For flange-end pumps – flange versions
- Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
* The benchmark for the most efficient circulators is EEI ≤ 0.20
Frequently asked questions
Wilo Yonos MAXO
- Pump connection – DN 65
- Port to port – 340mm
- Max operating pressure – 10 bar
- Weight – 33.8 kg
- Part number – 2175545
-
Data Sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The Grundfos MAGNA1 F Flanged Circulator Pumps range covers 33 single-head, cast iron, flanged circulators from DN32 to DN100, with maximum heads from 4 m…
The Grundfos MAGNA3 F Flanged Circulator Pumps range covers 35 single-head, cast iron, flanged circulators from DN32 to DN100, with maximum heads from 4 m…
The Grundfos MAGNA1 N Stainless Steel Screwed Circulator Pumps range covers 9 single-head, stainless steel, screwed (union) circulators from 25 to 32, with maximum heads…
The Grundfos MAGNA3 D F Twin-Head Flanged Circulator Pumps range covers 35 twin-head, cast iron, flanged circulators from DN32 to DN100, with maximum heads from…
The Grundfos TP single stage bronze steel pump complete with 4 pole electric motor. Single stage, close-coupled, volute pump with in-line suction and discharge ports of idenctical…
Frequently Asked Questions
Quick answers to common questions about the Wilo Yonos MAXO-Z 65/0,5-12 PN6/10 340mm – 2175545. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What types of Wilo pumps are available?
Wilo manufactures circulators and other pumping solutions for heating, cooling, water supply and building services applications.
What is a Wilo circulator pump used for?
A Wilo circulator moves water around a heating or cooling circuit to maintain the required flow through the system.
How do I select a replacement Wilo pump?
Match the existing model or confirm head, flow, installation length, connections, voltage and control requirements before ordering.
