Wilo Yonos Maxo Z PN6/PN10
Wilo Yonos MAXO-Z 50/0,5-9 PN6/10 280mm – 2175544
In stock
- Established 1975
- Trusted by thousands of customers

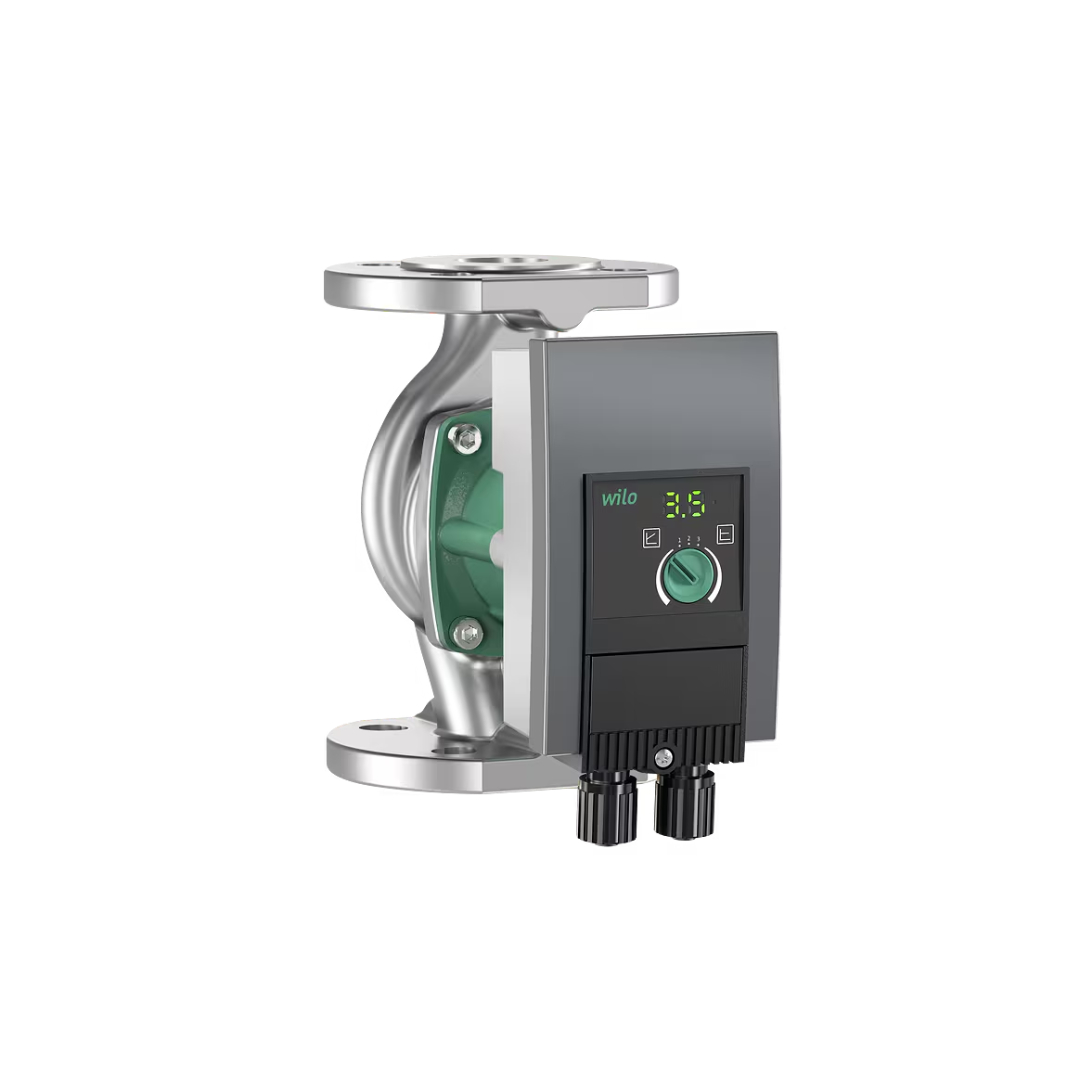

High-efficiency pump Wilo-Yonos MAXO-Z
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all domestic hot water circulation systems in industry and building services.
Standard-equipped with:
Preselectable control modes for optimum load adjustment: Δp-c (constant differential pressure), Δp-v (variable differential pressure)
3 speed stages (n = constant)
LED for setting the setpoint and displaying error messages
Electrical connection with the Wilo plug
Fault signal light and contact for collective fault signal
For flange-end pumps – flange versions:
Standard version for DN 32 to DN 65 pumps: Combination flange PN 6/10 (flange PN 16 in accordance with EN 1092-2) for counter flanges PN 6 and PN 10
More about this product
Wilo Yonos MAXO
- Pump connection – DN 50
- Port to port – 280mm
- Max operating pressure – 10 bar
- Weight – 19.8 kg
- Part number – 2175544
-
Data Sheet PDFDownload
