Wilo Yonos MAXO Screwed PN10

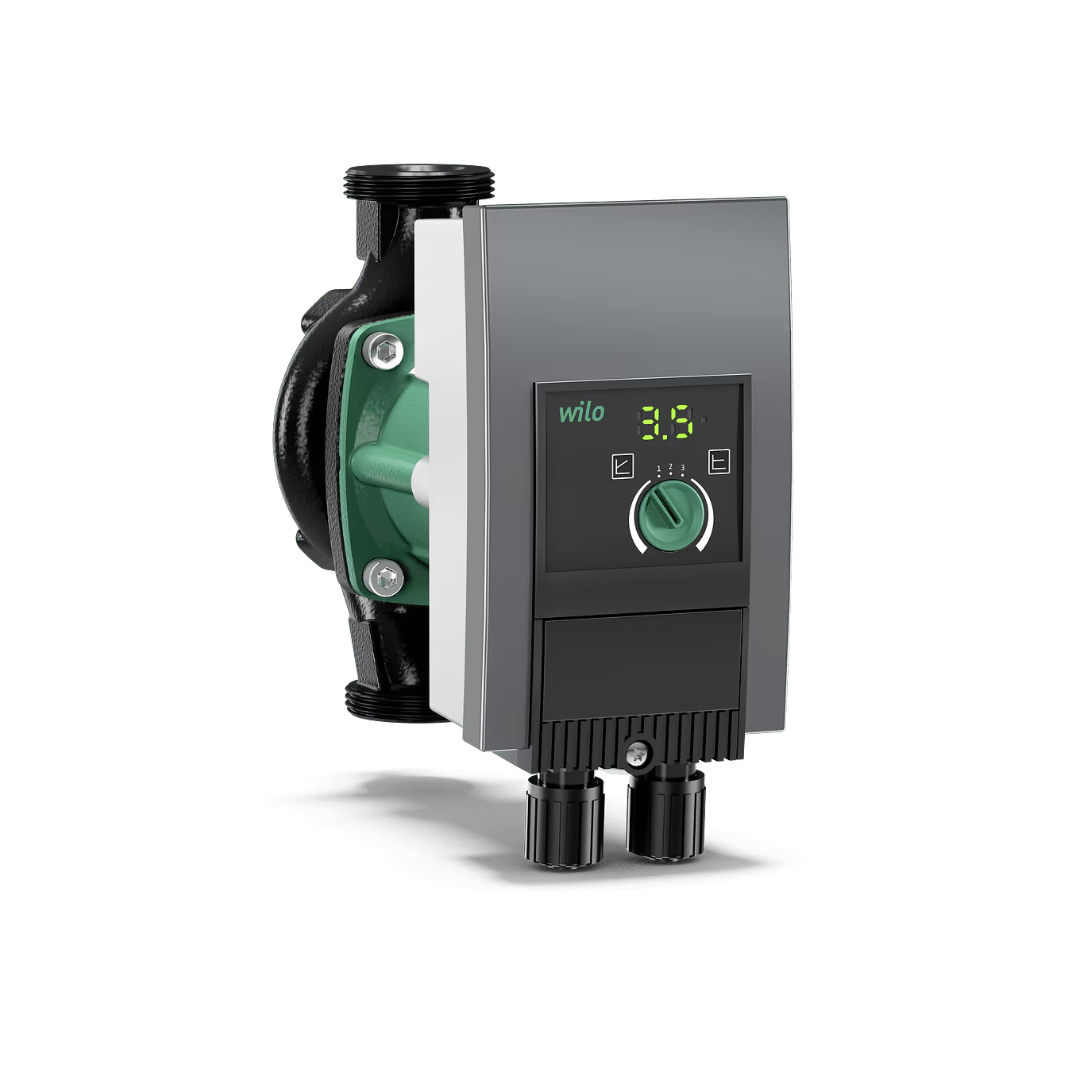

Wilo Yonos MAXO 25/0,5-12 G 1 1/2″ 180mm 2120641
- Established 1975
- Trusted by thousands of customers
Wilo Yonos MAXO 25/0,5-12 PN 10 glandless circulator, 230 V single-phase
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control.
Max. flow 197 l/min. Max. head 12.1 m. 230 W motor. G 1½ connection, 180 mm port to port.
More about this product
Overview
High efficiency pump Wilo-Yonos MAXO
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all heating, ventilation and air-conditioning applications.
Specification
| Model | Wilo Yonos MAXO 25/0,5-12 PN 10 |
|---|---|
| Part number | 2120641 |
| Series | Yonos MAXO |
| Supply | 230 V single-phase, ±10%, 50/60 Hz |
| Rated power P2 | 230 W |
| Max. power consumption P1 | 305 W |
| Min. power consumption P1 | 10 W |
| Max. current | 1.33 A |
| Speed range | 1000 rpm to 4800 rpm |
| Maximum flow | 197 l/min |
| Maximum head | 12.1 m |
| Max. operating pressure | 10 bar |
| Fluid temperature | -20 °C to 110 °C |
| Ambient temperature | -20 °C to 40 °C |
| Energy efficiency index (EEI) | ≤ 0.20 |
| Protection class | IPX4D |
| Insulation class | F |
| Cable entries | 2 x M20x1.5 |
Materials
| Pump housing | Grey cast iron |
|---|---|
| Impeller | PPE/PS-GF30 |
| Shaft | Stainless steel |
| Bearing | Carbon-graphite |
Dimensions and weight
| Pump connection | G 1½ (RP 1 / DN 25) |
|---|---|
| Port-to-port length | 180 mm |
| Length × width × height | 180 × 128 × 244 mm |
| Net weight | 5.3 kg |
Features and equipment
Standard-equipped with
- Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault lamp and contact for collective fault signal
For flange-end pumps – flange versions
- Standard version for pumps DN 32 to DN 65: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges
- Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
* The benchmark for the most efficient circulators is EEI ≤ 0.20
Frequently asked questions
Wilo Yonos MAXO
- Pump connection – G 1 1/2″
- Port to port – 180mm
- Max operating pressure – 10 bar
- Weight – 5.8 kg
- Part number – 2120641
-
data sheet PDFDownload
-
data PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
