Wilo Yonos MAXO Flanged PN10

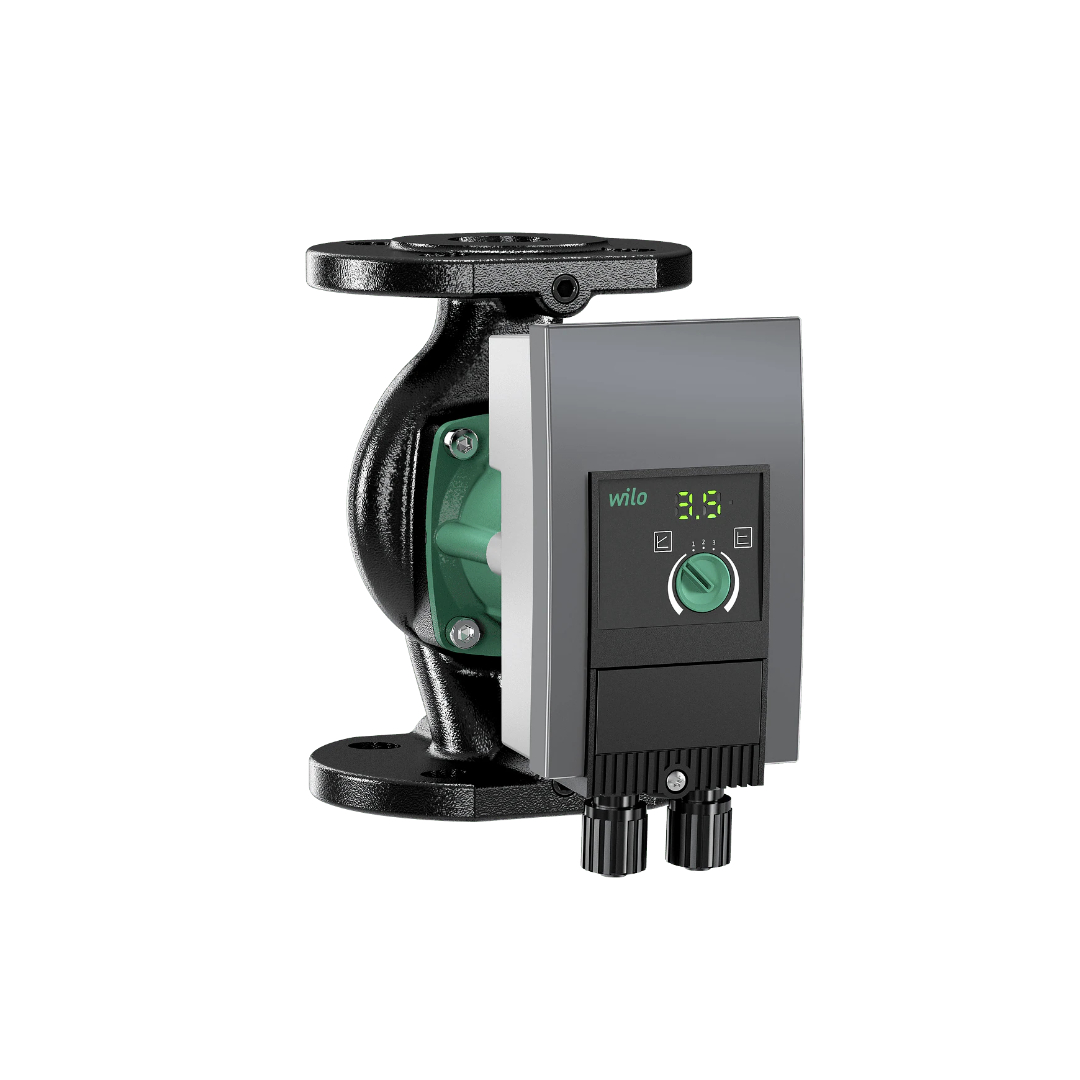

Wilo Yonos MAXO 100/0,5-12 DN100 360mm 2120660
- Established 1975
- Trusted by thousands of customers
Wilo Yonos MAXO 100/0,5-12 PN 6 glandless circulator, 230 V single-phase
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control.
Max. flow 1,055 l/min. Max. head 13.6 m. 1300 W motor. DN 100 connection, 360 mm port to port.
More about this product
Overview
High efficiency pump Wilo-Yonos MAXO
electronically controlled,
Glandless circulator, synchronous motor according to ECM technology and integrated power control for continuous differential pressure control. Can be used for all heating, ventilation and air-conditioning applications.
Specification
| Model | Wilo Yonos MAXO 100/0,5-12 PN 6 |
|---|---|
| Part number | 2120660 |
| Series | Yonos MAXO |
| Supply | 230 V single-phase, ±10%, 50/60 Hz |
| Rated power P2 | 1300 W |
| Max. power consumption P1 | 1550 W |
| Min. power consumption P1 | 40 W |
| Max. current | 6.8 A |
| Speed range | 900 rpm to 3300 rpm |
| Maximum flow | 1,055 l/min |
| Maximum head | 13.6 m |
| Max. operating pressure | 6 bar |
| Fluid temperature | -20 °C to 110 °C |
| Ambient temperature | -20 °C to 40 °C |
| Energy efficiency index (EEI) | ≤ 0.20 |
| Protection class | IPX4D |
| Insulation class | F |
| Cable entries | 2 x M20x1.5 |
Materials
| Pump housing | Grey cast iron |
|---|---|
| Impeller | PP-LGF50 |
| Shaft | Stainless steel |
| Bearing | Carbon-graphite |
Dimensions and weight
| Pump connection | DN 100 |
|---|---|
| Port-to-port length | 360 mm |
| Length × width × height | 360 × 220 × 443 mm |
| Net weight | 33.4 kg |
Features and equipment
Standard-equipped with
- Preselectable control modes for optimum load adjustment: Δp-c (differential pressure constant), Δp-v (differential pressure variable)
- 3 speed stages (n = constant)
- LED for setting the setpoint and displaying error messages
- Electrical connection with the Wilo plug
- Fault lamp and contact for collective fault signal
For flange-end pumps – flange versions
- Standard version for pumps DN 32 to DN 65: PN 6/10 combination flange (PN 16 flange according to EN 1092-2) for PN 6 and PN 16 counter flanges
- Standard version for DN 80/DN 100 pumps: PN 6 flange (designed for PN 16 according to EN 1092-2) for PN 6 counter flange
* The benchmark for the most efficient circulators is EEI ≤ 0.20
Frequently asked questions
Wilo Yonos MAXO
- Pump connection – DN100
- Port to port – 360mm
- Max operating pressure – 6 bar
- Weight – 33.9 kg
- Part number – 2120660
-
data sheet PDFDownload
-
group file PDFDownload
