Wilo Stratos MAXO screwed PN10

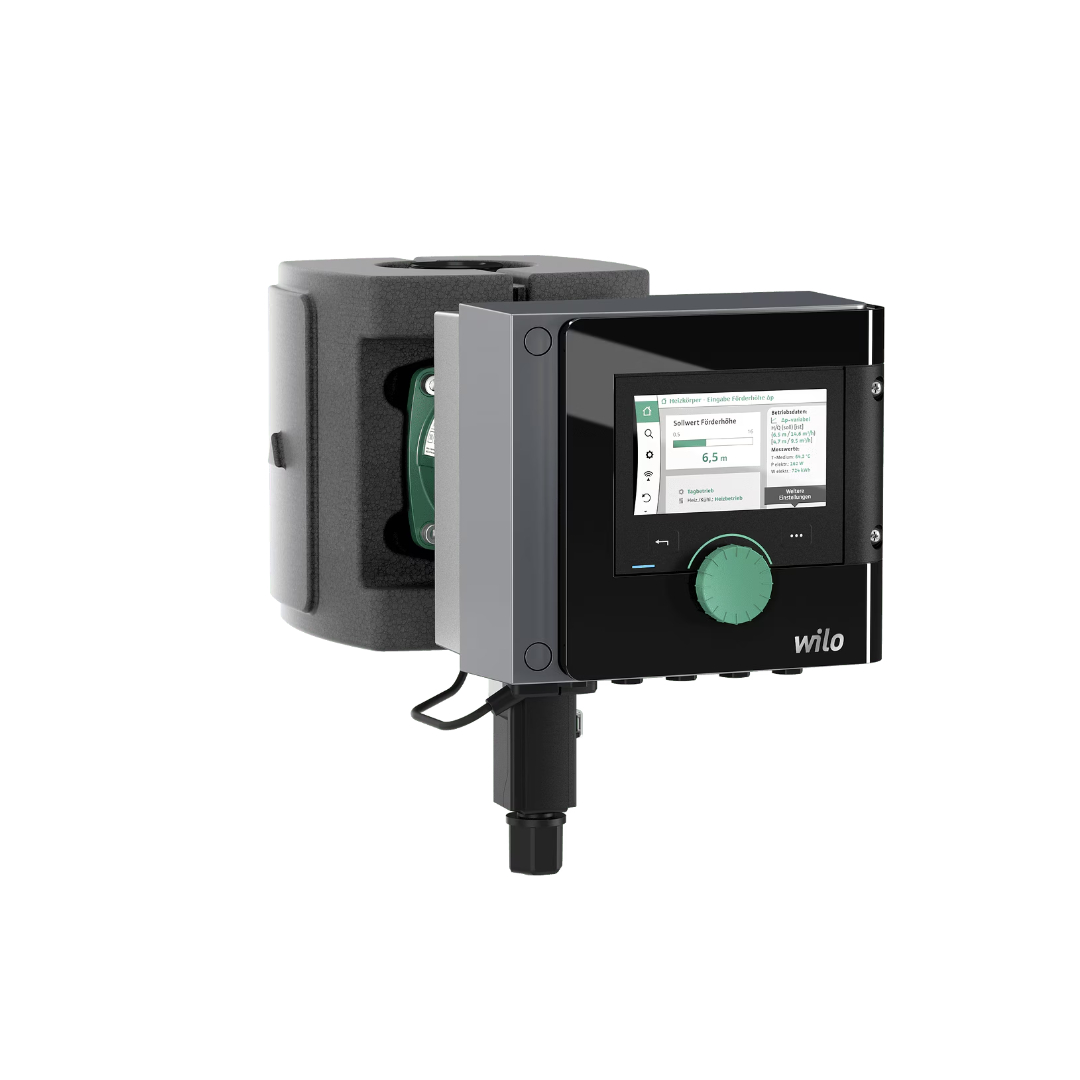

Wilo Stratos MAXO 30/0,5-10 G 2 180mm 2164575
- Established 1975
- Trusted by thousands of customers
Wilo Stratos MAXO 30/0,5-10 PN 10 glandless circulator, 230 V single-phase
High-efficiency pump as glandless pump with EC motor and electronic power adjustment.
Max. flow 203 l/min. Max. head 10.2 m. 234 W motor. G 2 connection, 180 mm port to port.
More about this product
Overview
Wilo-Stratos MAXO premium smart-pump
High-efficiency pump as glandless pump with EC motor and electronic power adjustment. Can be used for heating water, chilled water and water/glycol mixtures. Energy efficiency index (EEI) between ≤ 0.17 and ≤ 0.19 depending on pump type.
Specification
| Model | Wilo Stratos MAXO 30/0,5-10 PN 10 |
|---|---|
| Part number | 2164575 |
| Series | Stratos MAXO |
| Supply | 230 V single-phase, ±10%, 50/60 Hz |
| Rated power P2 | 234 W |
| Max. power consumption P1 | 275 W |
| Min. power consumption P1 | 7 W |
| Max. current | 1.2 A |
| Speed range | 750 rpm to 3950 rpm |
| Maximum flow | 203 l/min |
| Maximum head | 10.2 m |
| Max. operating pressure | 10 bar |
| Fluid temperature | -10 °C to 110 °C |
| Ambient temperature | -10 °C to 40 °C |
| Energy efficiency index (EEI) | ≤ 0.19 |
| Protection class | IPX4D |
| Insulation class | F |
| Cable entries | 5 x M16x1.5 |
Materials
| Pump housing | Grey cast iron |
|---|---|
| Impeller | PPS-GF40 |
| Shaft | 1.4122, DLC-coated |
| Bearing | Carbon, antimony-impregnated |
Dimensions and weight
| Pump connection | G 2 (RP 1 1/2 / DN 30) |
|---|---|
| Port-to-port length | 180 mm |
| Length × width × height | 350 × 210 × 180 mm |
| Net weight | 7.5 kg |
Features and equipment
Control modes
- Permanent, automatic performance adjustment to system requirements without setpoint specification Wilo Dynamic Adapt plus (factory setting).
- Constant temperature (T-const.)
- Constant differential temperature (dT-const.)
- Needs-based volume flow optimisation of the feeder pump through connectivity and communication between multiple pumps (Multi-Flow Adaptation).
- Constant volume flow (Q-const.)
- Differential pressure control (dp-c) at a remote point in the pipe network (index circuit evaluator)
- Constant differential pressure (dp-c)
- Variable differential pressure (dp-v) with the option to set the nominal duty point
- Constant speed (n-const.)
- User-defined PID control
Functions
- Heat quantity measurement
- Cooling quantity measurement
- Pump automatically deactivates when no flow rate is detected (No-Flow Stop)
- Switchover between heating and cooling mode (automatic, external or manual)
- Adjustable volume flow limiter using the Q-Limit function (Qmin. and Qmax.)
- Dual-pump operating modes: Efficiency-optimised parallel operation for dp-c and dp-v, main/standby mode
- Ability to save and restore configured pump settings (3 restoration points)
- Fault and warning messages displayed in plain text with advice on resolving the issue
- Pump venting function for automatic venting of the rotor chamber
- Automatic night setback
- Automatic deblocking function and integrated full motor protection
- Dry-running detection
Display
- Control mode
- Setpoint
- Volume flow
- Temperature
- Power consumption
- Electrical energy consumption
- Active influences (e.g. STOP, No-Flow Stop)
Version
- 2 configurable analogue inputs: 0-10 V, 2-10 V, 0-20 mA, 4-20 mA and commercially available Pt1000; +24 V DC power supply
- 2 configurable digital inputs (Ext. OFF, Ext. Min, Ext. Max, heating/cooling, manual override (uncoupled from building automation), operation lock (key lock and remote operation configuration protection))
- 2 configurable signal relays for run signals and fault messages
- Slot for Wilo-CIF modules with interfaces for building automation BA (optional accessories: CIF modules Modbus RTU, Modbus TCP, BACnet MS/TP, BACnet IP, LON, PLR, CANopen)
- Wilo Net as a Wilo system bus for communication between Wilo products, e.g. Multi-Flow Adaptation; dual-pump operation and Wilo-Smart Gateway
- Integrated temperature sensor
- Automatic emergency operation with configurable pump speed for exceptional conditions, e.g. if bus communication fails or sensor values are unavailable
- Colour graphics display (4.3 inches) with one button manual operation level
- Use the Wilo-Assistant app to read and set operating data and – among other things – set up a commissioning protocol through the Bluetooth interface (no further accessories required)
- Integrated dual-pump management (twin-head pumps are prewired) when using 2 single pumps as a dual-pump unit, connection via Wilo Net
- Cable break detection when using an analogue signal (in connection with 2 – 10 V or 4 – 20 mA)
- Outdoor installation with weather protection possible in accordance with the installation and operating instructions
- Pre-set date and time
- Thermal insulation shell for heating applications
Scope of delivery
- Pump
- Optimised Wilo-Connector the same for all sizes
- 2x threaded cable gland M16 x 1.5
- Washers for flange screws M12 and M16 (for nominal connection diameters DN 32 to DN 65)
- 2x gaskets for threaded connection
- Thermal insulation shell
- Concise installation and operating instructions
Optional accessories
- ClimaForm cold insulation to avoid the formation of condensate
- CIF module: Modbus TCP, Modbus RTU, BACnet IP, BACnet MS/TP, LON, PLR, CANopen
- Pt1000 (B) pi
