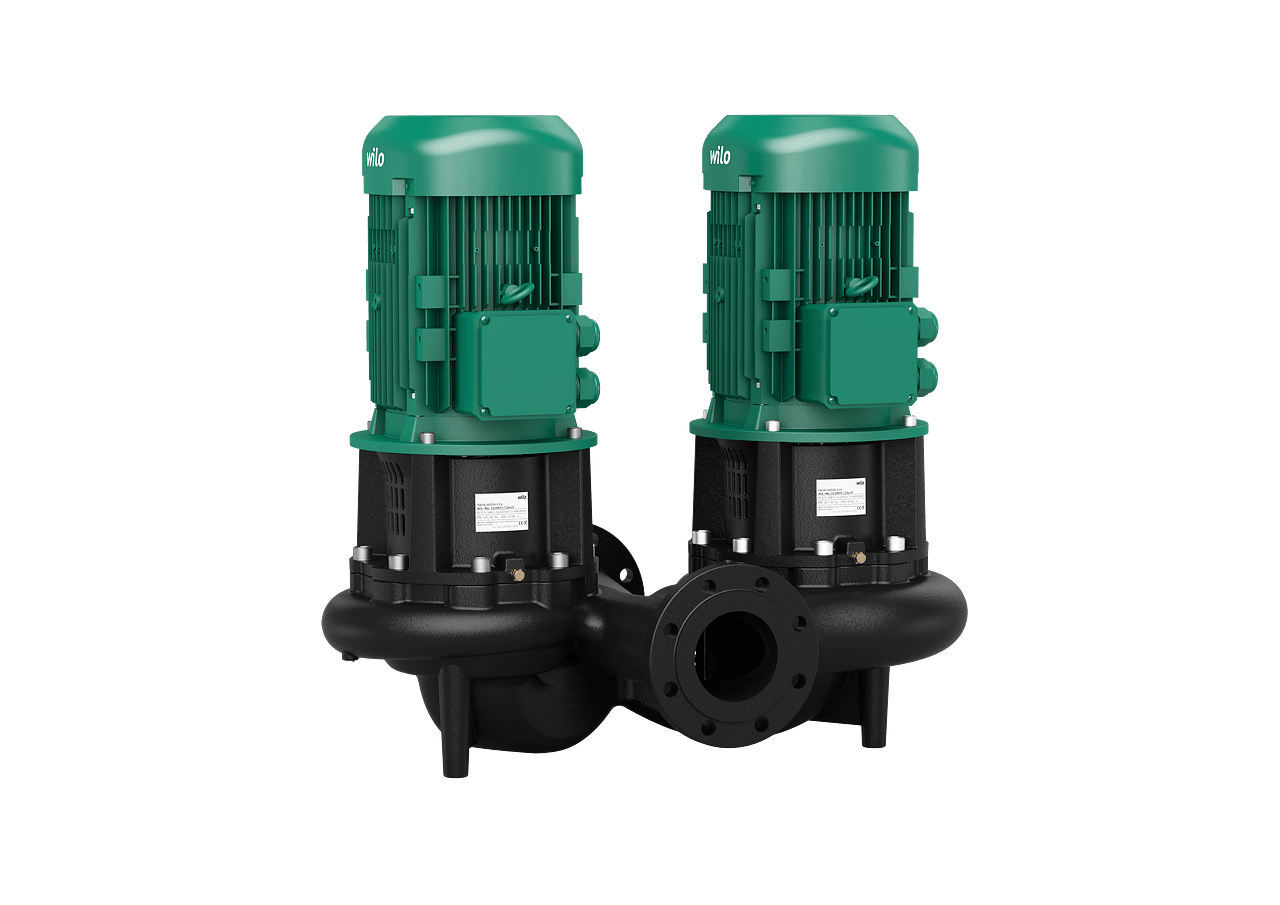

Wilo CronoTwin-DL 80/120-4/2 in-line pump, 400 V three-phase
In-line twin-head pump with two single-stage glanded centrifugal pumps in the same housing with switchover valve, for pipe installation or installation on a base.
4 kW motor. DN 80 connection, 400 mm port to port.
More about this product
Overview
In-line twin-head pump with two single-stage glanded centrifugal pumps in the same housing with switchover valve, for pipe installation or installation on a base. Housing blind flange and mounting brackets available at additional charge. Low-vibration and low-noise monobloc design with lantern and rigidly connected standard flange motor (standard motor). With forced-flow circulation, bidirectional bellows mechanical seal and cavitation-reducing impeller. Flanges with pressure measuring connections R 1/8. The pump housing and lantern are cataphoretic-coated.
Motors in IE3 technology as standard. Pump with motor ≥ 5.5 kW are equipped as standard with a PTC thermistor sensor for motor protection.
The motor terminal box ≤ 7.5 kW can be made of metal or plastic. If a metal terminal box is absolutely necessary, please order the appropriate special variant. The motor terminal boxes > 7.5 kW are always made of metal.
Specification
| Model | Wilo CronoTwin-DL 80/120-4/2 |
|---|---|
| Part number | 2121050 |
| Series | CronoTwin-DL |
| Supply | 400 V three-phase, 50 Hz |
| Rated power P2 | 4 kW |
| Rated current | 7.8 A |
| Speed | 2900 rpm |
| Poles | 2 |
| Max. operating pressure | 16 bar |
| Fluid temperature | -20 °C to 140 °C |
| Max. ambient temperature | 40 °C |
| Dimensioning note | 16 bar to 120 °C, 13 bar to 140 °C |
| Minimum efficiency index (MEI) | ≥ 0.4 |
| Motor efficiency class | IE3 |
| Protection class | IP55 |
| Insulation class | F |
| Motor protection | None integrated |
| Power factor | 0.84 |
| Motor efficiency at full load | 88.1 % |
Materials
| Pump housing | Grey cast iron |
|---|---|
| Impeller | Grey cast iron EN-GJL-200 |
| Shaft | Stainless steel |
| Mechanical seal | AQ1EGG |
| Lantern | Grey cast iron |
Dimensions and weight
| Pipe connection, suction | DN 80 |
|---|---|
| Pipe connection, discharge | DN 80 |
| Port-to-port length | 400 mm |
| Length × width × height | 694 × 674 × 400 mm |
| Net weight | 153 kg |
