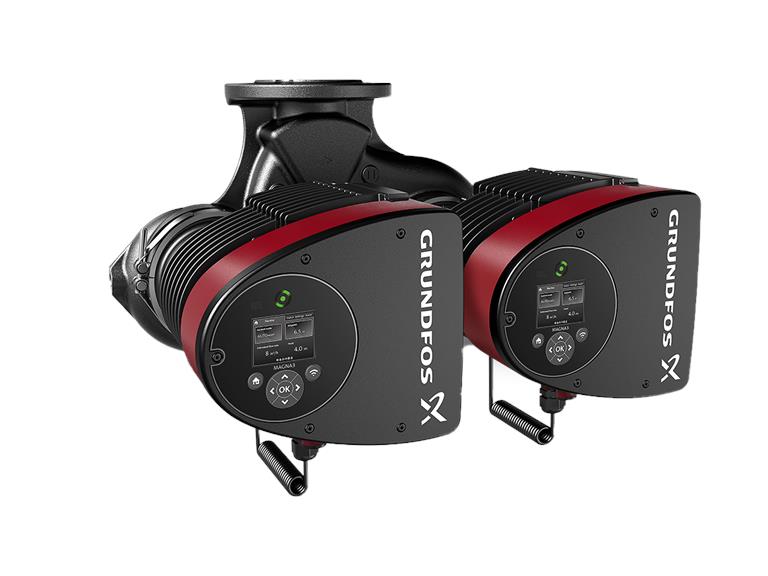

Grundfos MAGNA3 D 40-150 F 97924466

Name: Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466
Brand: Grundfos
SKU: 97924466
Price: 4288.8 GBP
Availability: InStock

Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466 - Image 2

Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466 - Image 3

Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466 - Image 4

Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466 - Image 5

Grundfos MAGNA3 D 40-150 F 250mm Twin-Head Circulator Pump 97924466 - Image 6

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Grundfos MAGNA3 D 40-150 F (part no. 97924466) is a twin-head, cast iron, flanged circulator pump for heating, cooling and ground-source systems. It gives up to 15 m head, has a 250 mm port-to-port length and runs on a single-phase 230 V supply.

MAGNA3 adapts itself to the system with AUTOADAPT, measures flow and heat energy with built-in sensors, and connects to a BMS with an optional CIM module.

15 m

Max head

250 mm

Port-to-port

DN40

Flanged

610 W

Max power P1

Genuine Grundfos2-year warrantyPart no. 979244661 x 230 VEEI 0.18

Replacing a pump? Check the gap between your flanges: this model is 250 mm port-to-port.

Full Description

More about this product

Full Description

The Grundfos MAGNA3 D 40-150 F 250 1x230V PN6/10 (Grundfos part number 97924466) is a twin-head, cast iron, flanged circulator pump from the Grundfos MAGNA3 range. It delivers up to 15 m head, fits a 250 mm port-to-port gap and connects with a DN40 flange, PN6/10 combination. Power input is 16–610 W, so it uses only the energy the system needs at any moment.

15 m

Max head

250 mm

Port-to-port

DN40

Connection

610 W

Max power P1

Replacing a pump? Check the gap between your flanges: this model is 250 mm port-to-port.

MAGNA3 D 40-150 F specifications

Model	MAGNA3 D 40-150 F 250 1x230V PN6/10
Grundfos part number	97924466
Pump type	Twin-head, cast iron, flanged circulator
Maximum head	15 m
Rated duty point	14.9 m³/h at 9.5 m
Port-to-port length	250 mm
Pipe connection	DN40 flange, PN6/10 combination
Pressure rating	PN6/10 (max. operating pressure 10 bar)
Supply	1 x 230 V
Power input P1 (per head)	16–610 W
Current (per head)	0.18–2.75 A
Energy Efficiency Index (EEI)	0.18
Liquid temperature	-10 to 110 °C
Pump housing	Cast iron EN-GJL-250
Impeller	PES 30%GF
Insulation class	F
Enclosure class	X4D
Net weight	31.6 kg
EAN	5710626495443
Warranty	2 years (Grundfos)

Figures from the Grundfos data sheet for 97924466. The pump curve is on the data sheet.

What the model code means

Code	Meaning
MAGNA3	MAGNA3: AUTOADAPT, built-in sensors, heat energy monitor and fieldbus BMS options
D	Twin-head pump (two heads in one housing)
40	Nominal pipe size DN40
150	Maximum head 15 m (code is in decimetres)
F	Flanged connections
250	Port-to-port length 250 mm
1x230V	Single-phase 230 V supply
PN6/10	Pressure rating: fits PN6 or PN10 counter-flanges

Features

AUTOADAPT control

Finds and keeps the best proportional-pressure setting for the system on its own, so the pump runs only as hard as the building needs.

FLOWADAPT and FLOWLIMIT

Set a maximum flow and the pump holds it, which can remove the need for a balancing valve on the pump circuit.

Built-in sensors

Integrated differential-pressure and temperature sensors measure the system directly, with no external sensor needed for standard control modes.

Heat energy monitor

Estimates flow and heat energy delivered, for monitoring and optimising the system (not for billing).

Grundfos GO and BMS ready

Set up and read the pump from the Grundfos GO app. Optional CIM modules connect it to common building-management fieldbus systems, and digital inputs, relay outputs and an analogue input are built in.

Permanent-magnet motor

High-efficiency PM motor with integrated frequency converter. No external motor protection needed and no routine maintenance.

Twin-head housing

Two pump heads in one housing give a built-in standby: if one head is out of service, the other keeps the system circulating.

Applications

Wet heating systems: radiators, underfloor heating and air-handling coils
Chilled water and air-conditioning circuits (liquid down to -10 °C)
Ground-source heat pump and solar heating circuits
Light commercial buildings and larger domestic systems

Questions about this pump

What does MAGNA3 D 40-150 F mean?

MAGNA3 is the range, 40 is the nominal pipe size (DN40) and 150 is the maximum head in decimetres (15 m). F means flanged. D means twin-head.

Can it connect to a building management system?

Yes. Fit an optional Grundfos CIM module in the control box to connect to common BMS fieldbus systems. Digital inputs, relay outputs and an analogue input are built in.

What is the difference between MAGNA1 and MAGNA3?

MAGNA3 adds AUTOADAPT, FLOWADAPT/FLOWLIMIT, built-in sensors, heat energy monitoring and fieldbus BMS communication through CIM modules. MAGNA1 has nine settings, a fault relay and a start/stop input. The equivalent MAGNA1 is the MAGNA1 D 40-150 F (99221311).

Why choose a twin-head pump?

Two pump heads share one housing, so the system keeps circulating if one head fails or is being serviced. It is common on commercial heating where loss of circulation is not acceptable.

Will it fit PN6 or PN10 flanges?

Both. The PN6/10 combination flange has bolt holes for PN6 and PN10 counter-flanges.

Will the MAGNA3 D 40-150 F fit where my old pump was?

Check the gap between your pipe flanges or unions. This pump is 250 mm port-to-port. If your old pump was longer, a spacer or adaptor may be needed. Send us the old pump’s nameplate and we will confirm the right replacement.

What warranty does it have?

A 2-year Grundfos manufacturer warranty.
