Grundfos MAGNA1 D F Twin-Head Flanged Circulator Pumps
Grundfos MAGNA1 D 40-80 F 220mm Twin-Head Circulator Pump 99221308
- Established 1975
- Trusted by thousands of customers

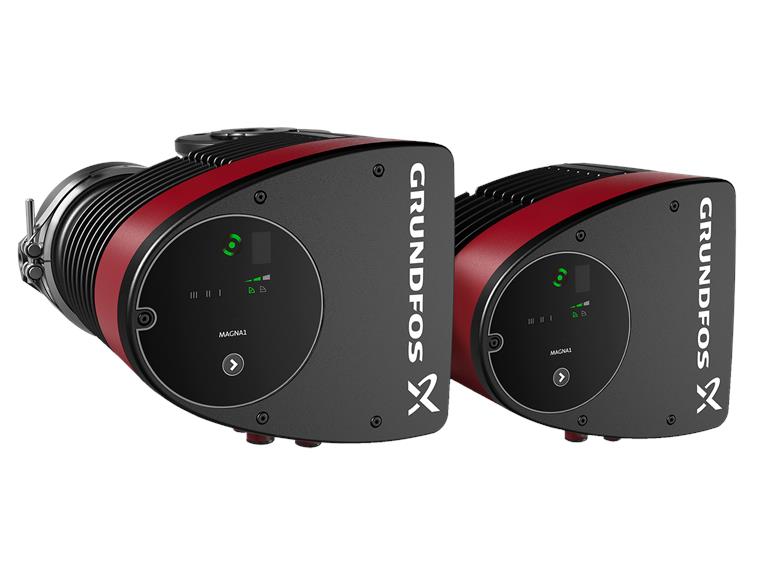

The Grundfos MAGNA1 D 40-80 F (part no. 99221308) is a twin-head, cast iron, flanged circulator pump for heating, cooling and ground-source systems. It gives up to 8 m head, has a 220 mm port-to-port length and runs on a single-phase 230 V supply.
MAGNA1 offers nine settings across proportional pressure, constant pressure and constant curve, plus a fault relay and external start/stop input for BMS connection. Set-up and readout with the Grundfos GO app.
More about this product
The Grundfos MAGNA1 D 40-80 F 220 1x230V PN6/10 (Grundfos part number 99221308) is a twin-head, cast iron, flanged circulator pump from the Grundfos MAGNA1 range. It delivers up to 8 m head, fits a 220 mm port-to-port gap and connects with a DN40 flange, PN6/10 combination. Power input is 18–276 W, so it uses only the energy the system needs at any moment.
MAGNA1 D 40-80 F specifications
| Model | MAGNA1 D 40-80 F 220 1x230V PN6/10 |
|---|---|
| Grundfos part number | 99221308 |
| Pump type | Twin-head, cast iron, flanged circulator |
| Maximum head | 8 m |
| Port-to-port length | 220 mm |
| Pipe connection | DN40 flange, PN6/10 combination |
| Pressure rating | PN6/10 (max. operating pressure 10 bar) |
| Supply | 1 x 230 V |
| Power input P1 (per head) | 18–276 W |
| Current (per head) | 0.2–1.25 A |
| Energy Efficiency Index (EEI) | 0.23 |
| Liquid temperature | -10 to 110 °C |
| Pump housing | Cast iron EN-GJL-250 |
| Impeller | PES 30%GF |
| Insulation class | F |
| Enclosure class | X4D |
| Net weight | 32.5 kg |
| EAN | 5712608942815 |
| Warranty | 2 years (Grundfos) |
Figures from the Grundfos data sheet for 99221308. The pump curve is on the data sheet.
What the model code means
| Code | Meaning |
|---|---|
| MAGNA1 | MAGNA1: 9-setting control with fault relay and start/stop input |
| D | Twin-head pump (two heads in one housing) |
| 40 | Nominal pipe size DN40 |
| 80 | Maximum head 8 m (code is in decimetres) |
| F | Flanged connections |
| 220 | Port-to-port length 220 mm |
| 1x230V | Single-phase 230 V supply |
| PN6/10 | Pressure rating: fits PN6 or PN10 counter-flanges |
Features
Applications
- Wet heating systems: radiators, underfloor heating and air-handling coils
- Chilled water and air-conditioning circuits (liquid down to -10 °C)
- Ground-source heat pump and solar heating circuits
- Light commercial buildings and larger domestic systems
Questions about this pump
-
data sheet PDFDownload
-
brochure PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
You may also need
40mm spacer kit required for Magna 1 & 3 pumps Due to the differences in port to port dimensions when replacing Magna or UPS/D pumps…
40mm spacer kit required for Magna 1 & 3 pumps Due to the differences in port to port dimensions when replacing Magna or UPS/D pumps…
Each Flange Set comprises two flanges, two gaskets and two sets of nuts and bolts.
Frequently Asked Questions
Quick answers to common questions about the Grundfos MAGNA1 D 40-80 F 220mm Twin-Head Circulator Pump 99221308. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is the Grundfos MAGNA1 D 40-80 F used for?
The MAGNA1 D 40-80 F can be used in central heating, mains pumping, mixing loops, heating and air-conditioning systems, as well as systems where hot water has priority.
How does AUTOADAPT improve the efficiency of the MAGNA1?
AUTOADAPT regularly adjusts proportional pressure so the pump operates on an efficient performance curve, reducing the need for manual adjustment.
Does the Grundfos MAGNA1 use a permanent magnet motor?
Yes. The MAGNA range uses permanent-magnet motor technology designed to deliver high efficiency and greater energy savings.
What types of Grundfos pumps are available?
Grundfos offers circulators, booster pumps, borehole pumps, drainage pumps and other solutions for domestic and commercial systems.
How do I identify the correct Grundfos pump model?
Use the model name and product number on the pump nameplate, then check the electrical, hydraulic and connection specifications.
Can a Grundfos pump improve household water pressure?
A suitably selected Grundfos booster system can improve water pressure or flow, subject to the property’s water supply and installation requirements.
