Grundfos MAGNA1 F Flanged Circulator Pumps (DN32–DN100)
Grundfos MAGNA1 32-80 F 220mm Circulator Pump 99221275
- Established 1975
- Trusted by thousands of customers

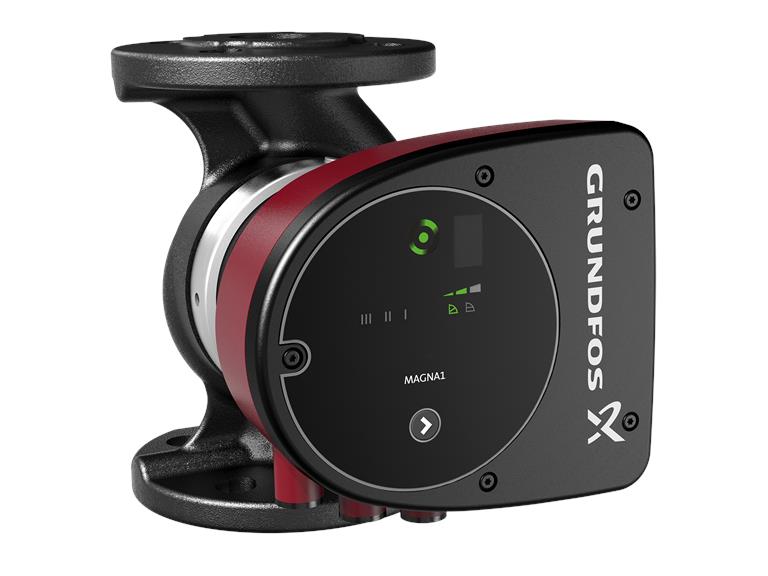

The Grundfos MAGNA1 32-80 F (part no. 99221275) is a single-head, cast iron, flanged circulator pump for heating, cooling and ground-source systems. It gives up to 8 m head, has a 220 mm port-to-port length and runs on a single-phase 230 V supply.
MAGNA1 offers nine settings across proportional pressure, constant pressure and constant curve, plus a fault relay and external start/stop input for BMS connection. Set-up and readout with the Grundfos GO app.
More about this product
The Grundfos MAGNA1 32-80 F 220 1x230V PN6/10 (Grundfos part number 99221275) is a single-head, cast iron, flanged circulator pump from the Grundfos MAGNA1 range. It delivers up to 8 m head, fits a 220 mm port-to-port gap and connects with a DN32 flange, PN6/10 combination. Power input is 9–151 W, so it uses only the energy the system needs at any moment.
MAGNA1 32-80 F specifications
| Model | MAGNA1 32-80 F 220 1x230V PN6/10 |
|---|---|
| Grundfos part number | 99221275 |
| Pump type | Single-head, cast iron, flanged circulator |
| Maximum head | 8 m |
| Port-to-port length | 220 mm |
| Pipe connection | DN32 flange, PN6/10 combination |
| Pressure rating | PN6/10 (max. operating pressure 10 bar) |
| Supply | 1 x 230 V |
| Power input P1 | 9–151 W |
| Current | 0.09–1.22 A |
| Energy Efficiency Index (EEI) | 0.20 |
| Liquid temperature | -10 to 110 °C |
| Pump housing | Cast iron EN-GJL-200 |
| Impeller | PES 30%GF |
| Insulation class | F |
| Enclosure class | X4D |
| Net weight | 7.5 kg |
| EAN | 5712608942488 |
| Warranty | 2 years (Grundfos) |
Figures from the Grundfos data sheet for 99221275. The pump curve is on the data sheet.
What the model code means
| Code | Meaning |
|---|---|
| MAGNA1 | MAGNA1: 9-setting control with fault relay and start/stop input |
| 32 | Nominal pipe size DN32 |
| 80 | Maximum head 8 m (code is in decimetres) |
| F | Flanged connections |
| 220 | Port-to-port length 220 mm |
| 1x230V | Single-phase 230 V supply |
| PN6/10 | Pressure rating: fits PN6 or PN10 counter-flanges |
Features
Applications
- Wet heating systems: radiators, underfloor heating and air-handling coils
- Chilled water and air-conditioning circuits (liquid down to -10 °C)
- Ground-source heat pump and solar heating circuits
- Light commercial buildings and larger domestic systems
