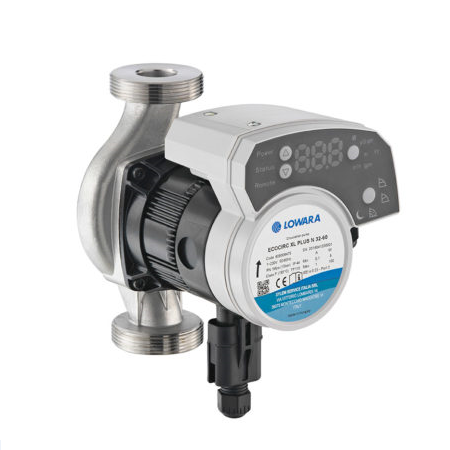

Name: Lowara Ecocirc XLplus N 32-60 605009475
Brand: Lowara
SKU: 9066-32-60XLplusn
Price: 908.96 GBP
Availability: InStock

Lowara Ecocirc XLplus N 32-60 605009475 - Image 2

Lowara Ecocirc XLplus N 32-60 605009475 - Image 3

Lowara Ecocirc XLplus N 32-60 605009475 - Image 4

Lowara Ecocirc XLplus N 32-60 605009475 - Image 5

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Lowara Ecocirc XLplus N 32-60 (605009475) is an ecocirc XLplus high-efficiency circulator with a 6 m maximum head and G 2 (Rp 1¼ unions) connections and a stainless steel pump body, for heating, cooling and hot water systems from –10 to +110°C.

It offers proportional pressure, constant pressure, constant speed and temperature control modes, night mode, dry-run protection and two analogue inputs, and talks to building management systems over Modbus RTU and BACnet (Wi-Fi module optional).

6 m

Max. head

DN 32

Size

Single

Head

180 mm

Port to port

Variable speedModbus & BACnetDry-run protectionStainless steelPart no. 605009475

Commercial circulators must be sized to the system flow and head. Send us your duty and we’ll confirm the right XLplus before you order.

Full Description

More about this product

Full Description

Key specifications

Model	Lowara Ecocirc XLplus N 32-60
Lowara part no.	605009475
Type	Single-head high-efficiency circulator
Max. head	6 m
Connections	G 2 (Rp 1¼ unions)
Port-to-port length	180 mm
Electrical connection	Plug
Pump body	Stainless steel
Control modes	Proportional pressure, constant pressure, constant speed, constant and differential temperature
Liquid temperature	–10 to +110°C
Inputs / outputs	2 analogue inputs (0–10V / 4–20mA), aux temperature sensor, start/stop input, signal output
Communication	Modbus RTU and BACnet built in; optional Wi-Fi module
Protection	Built-in dry-run protection

Features

Clear display

Large, easy-to-read display that is visible even in dark plant rooms.

Easy to operate

Four buttons for set-up; advanced settings from a PC, tablet or phone.

Chilled water ready

Electronics are separated from the pump to prevent condensation problems.

BMS ready

Modbus RTU and BACnet built in, with run-time data and an error log.

Built for

Heating systems

Commercial and large domestic heating.

Air conditioning & cooling

Chilled water and cooling circuits.

Geothermal & solar

Ground-source and solar thermal systems.

Hot water

Tap hot water circulation with the stainless steel N version.

FAQs

What does the model number mean?

32 is the nominal connection size and 60 the maximum head in decimetres (6 m).

What is the difference between XL and XLplus?

XL is the stand-alone version; XLplus adds built-in BMS communication (Modbus RTU and BACnet), extra control modes and Wi-Fi readiness.

How do I size it?

You need the system flow rate and head (pressure loss). Send us the details and we’ll select the right model.
