Grundfos hot water service circulators
Grundfos UPS 25-80N 98057227
- Established 1975
- Trusted by thousands of customers
Grundfos UPS 25-80 N 180 circulator pump, single-phase
Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required. This model has a single-phase motor, with a rated duty of 80 l/min at 4.68 m head (0.46 bar).
More about this product
Applications
- Commercial heating
- Domestic heating
- Domestic hot water recirculation
Specification
| Model | Grundfos UPS 25-80 N 180 |
|---|---|
| Grundfos part number | 98057227 |
| Rated duty point | 80 l/min (4.8 m³/h) at 4.68 m (0.46 bar) head |
| Maximum head | 8 m (0.78 bar) |
| Power input (P1) | 160 W |
| Supply voltage | 1 x 230 V, 50 Hz |
| Speeds | 3 |

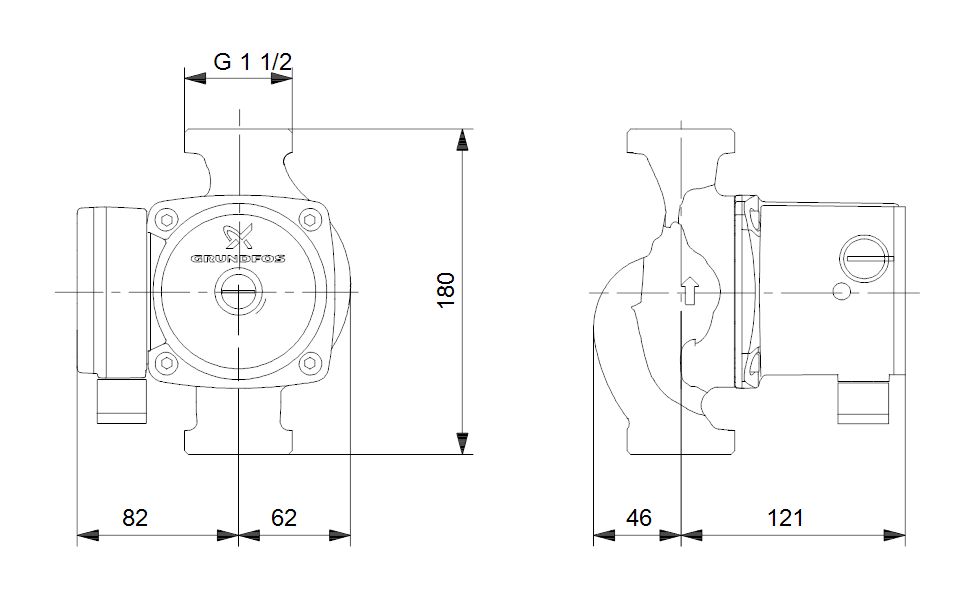

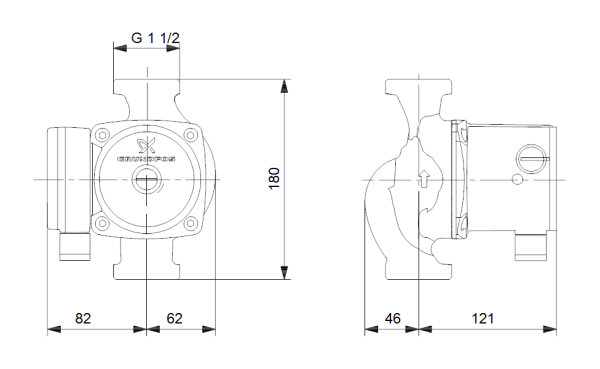

| Connections | G 1 1/2" |
| Port-to-port length | 180 mm |
| Pump housing | Stainless steel |
| Impeller | Composite (PES, 30% glass fibre) |
| Liquid temperature | -25 °C to +110 °C |
| Max. operating pressure | 10 bar |
| Pressure rating | PN 10 |
| Max. ambient temperature | 40 °C |
| Enclosure | IPX2D, insulation class F |
| Approvals | CE, WEEE, UKCA |
| Net weight | 4.59 kg |
