Grundfos hot water service circulators

Grundfos UPS 15-50N 97549426

In stock

Our Price £280.80 £234.00
  • Established 1975
  • Trusted by thousands of customers

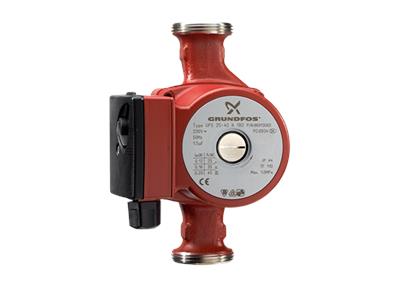

Grundfos UPS 15-50N 97549426

Grundfos UPS 15-50N domestic Hot Water Service Circulator pump is suitable for domestic Hot Water applications up to 110°C. The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricatd by the pumped liquid.

Key Features:

  1. Model Type:
    • UPS: Refers to a three-speed circulator pump, allowing for operational flexibility and efficiency adjustments.
    • 15: Indicates the nominal diameter of the pump’s connection ports, which is 15 mm or 1 1/2″ connections.
    • 50: Refers to the pump’s head (maximum vertical lift) in decimeters, equivalent to 5 metres.
    • N: Denotes that the pump housing is made of stainless steel, making it resistant to corrosion. This feature is especially important for applications involving water with low pH or domestic hot water systems.
  2. Material:
    • Stainless steel pump housing ensures durability and suitability for a variety of water qualities.
    • Resistant to corrosion and ideal for aggressive or sanitary environments.
  3. Three-Speed Operation:
    • Allows the user to choose the speed based on the system’s flow and head requirements, improving energy efficiency.
  4. Applications:
    • Hot water circulation in heating systems.
    • Circulation in cooling systems.
    • Used in air conditioning and other closed-loop systems.
    • Ideal for domestic hot water recirculation.
  5. Silent Operation:
    • Grundfos pumps are known for their quiet performance, making them suitable for residential use.
  6. Maintenance-Free:
    • Sealed-for-life construction ensures minimal maintenance requirements.
  7. Energy Efficient:
    • Complies with modern energy standards, offering a balance between performance and energy consumption.

Specifications (Typical for UPS 15-50N):

  • Flow Rate: Can handle a significant amount of water flow, depending on system requirements.
  • Head: Maximum of 50 metres.
  • Power Supply: Operates on standard electrical supplies (e.g., 230V, 50Hz in Europe).
  • Connection Type: 2″ threaded connections depending on specific configuration.
