Grundfos hot water service circulators
Grundfos UP 20-07N 98057201 (now UP20-15N)
- Established 1975
- Trusted by thousands of customers

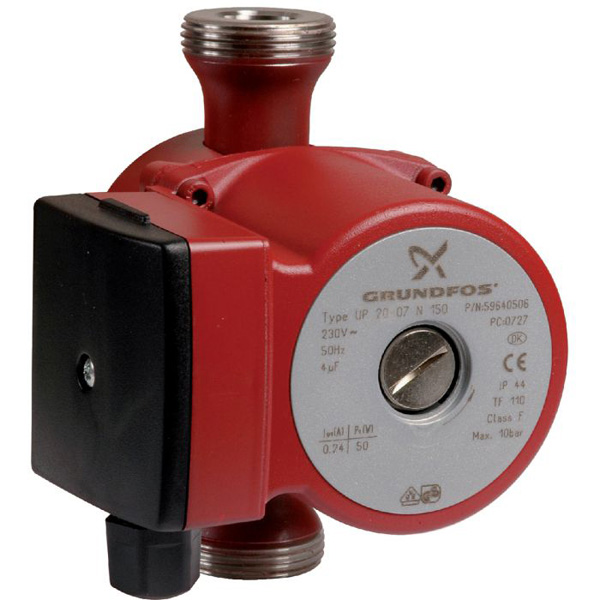

Grundfos UP 20-07 N 150 circulator pump, single-phase
Grundfos UP, UPS N circulator pumps have a corrosion-free stainless-steel pump housing and are recommended for domestic hot-water recirculation and underfloor heating systems. UP, UPS N can be connected to an on/off time switch to limit pump operation to periods when hot water is usually required. This model has a single-phase motor, with a rated duty of 18.3 l/min at 0.65 m head (0.06 bar).
More about this product
Applications
- Commercial heating
- Domestic heating
- Domestic hot water recirculation
Specification
| Model | Grundfos UP 20-07 N 150 |
|---|---|
| Grundfos part number | 98057201 |

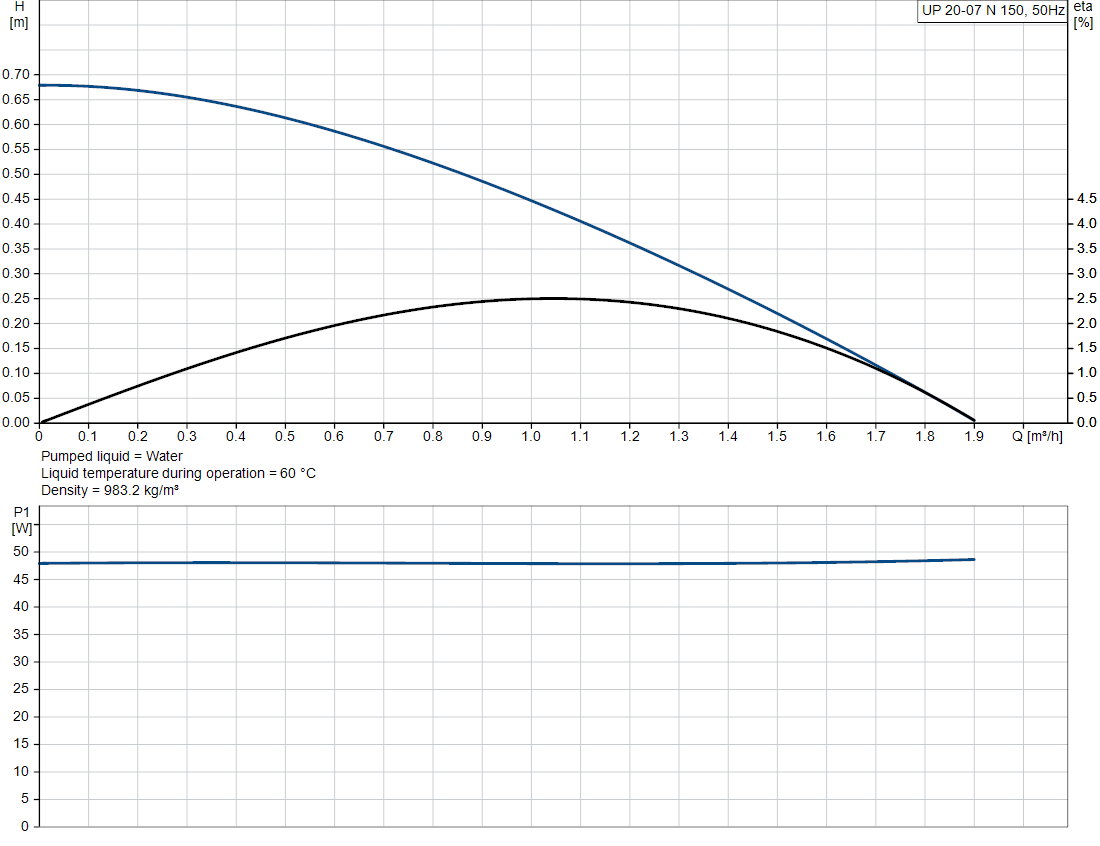

| Rated duty point | 18.3 l/min (1.1 m³/h) at 0.65 m (0.06 bar) head |
| Maximum head | 0.7 m (0.07 bar) |
| Power input (P1) | 50 W |
| Supply voltage | 1 x 230 V, 50 Hz |
| Speeds | 1 |

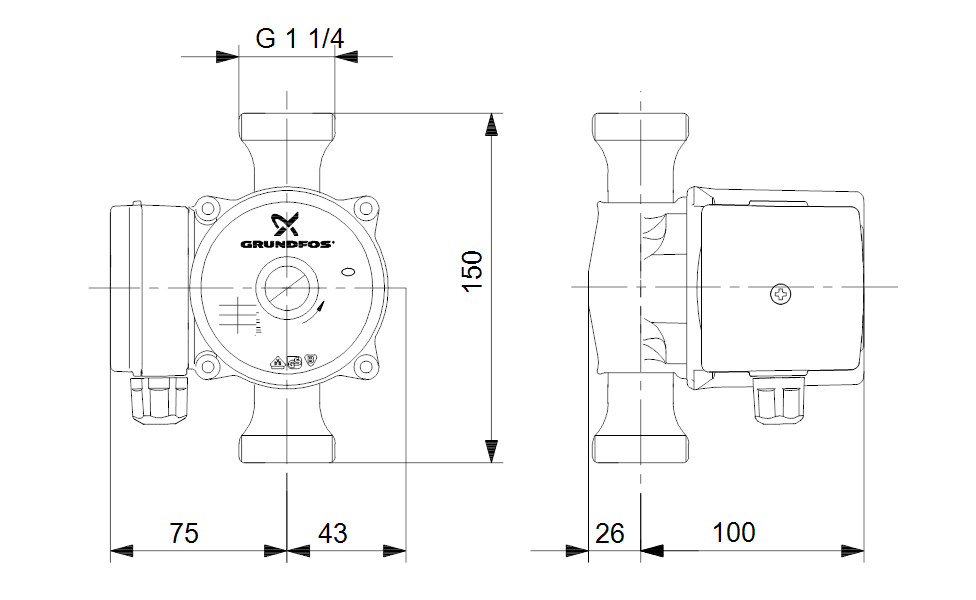

| Connections | G 1 1/4" |
| Port-to-port length | 150 mm |
| Pump housing | Stainless steel |
| Impeller | Composite (PES, 30% glass fibre) |
| Liquid temperature | 2 °C to +110 °C |
| Max. operating pressure | 10 bar |
| Pressure rating | PN 10 |
| Max. ambient temperature | 40 °C |
| Enclosure | IP44, insulation class F |
| Approvals | CE, WEEE, UKCA |
| Net weight | 2.1 kg |
Key features
