Grundfos DPI 0-2.5 bar transducer kit 96611525
- Established 1975
- Trusted by thousands of customers

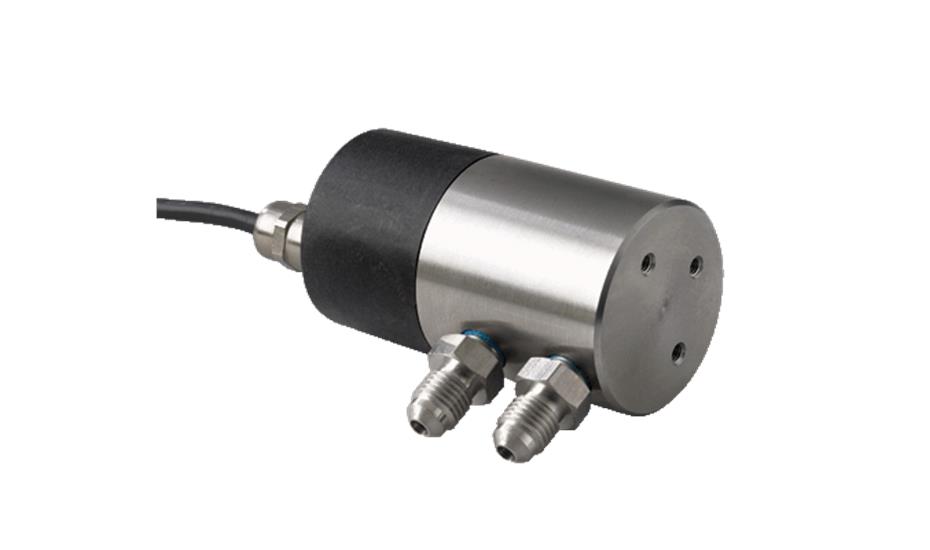

Grundfos DPI transducer kit
Product name: DPI differential pressure sensor kit
| EAN number: | 5700834481567 |
| Installation: | |
| Range of ambient temperature: | -10 .. 70 °C |
| Maximum operating pressure: | 16 bar |
| Type of connection: | 7/16 – 20 UNF |
| Liquid: | |
| Liquid temperature range: | -10 .. 70 °C |
| Electrical data: | |
| Enclosure class (IEC 34-5): | IP55 |
| Length of cable: | 0.9 m |
| Signal: | 4 – 20 mA |
| Others: | |
| Net weight: | 0.94 kg |
| Gross weight: | 1.35 kg |
| Danish VVS No.: | 475273025 |
| Swedish RSK No.: | 6010204 |
More about this product
Specifications
| Product name: | DPI differential pressure sensor kit |
| Product No: | 96611525 |
| EAN number: | 5700834481567 |
| Installation | |
| Range of ambient temperature: | -10 .. 70 °C |
| Maximum operating pressure: | 16 bar |

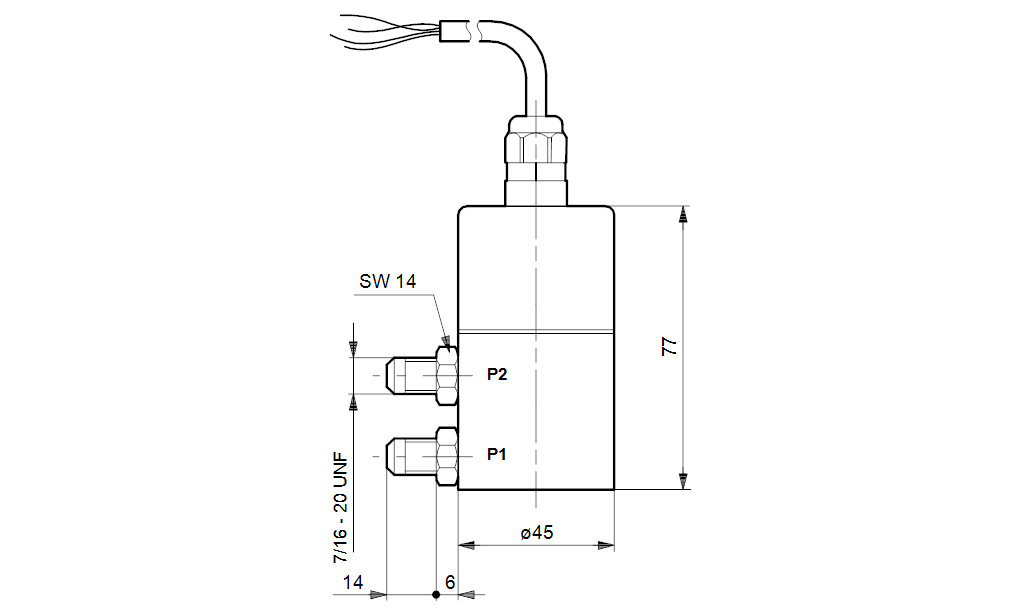

| Type of connection: | 7/16 – 20 UNF |
| Liquid | |
| Liquid temperature range: | -10 .. 70 °C |
| Electrical data | |
| Enclosure class (IEC 34-5): | IP55 |
| Length of cable: | 0.9 m |
| Cable size: | 3-wire, 0,013mm2, M12 x 1,5 |
| Maximum load: | 24V/500 ohm, 16V/200 ohm, 12V/100 ohm |
| Relay: | 24-30 VDC, 28-37 mA |
| Signal: | 4 – 20 mA |
| Others | |
| Net weight: | 0.94 kg |
| Gross weight: | 1.35 kg |
| Danish VVS No.: | 475273025 |
| Swedish RSK No.: | 6010204 |
-
data sheet PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Related products
The MAGNA series of circulator pumps are innovative and intelligent, making use of a permanent magnet-motor designed to achieve maximum efficiency. The AUTOadapt function means…
The Lowara Ecocirc XLplus system is designed to circulate liquids in heating systems with variable flows where it is desirable to enhance the settings of the pump duty…
The Grundfos TP single stage bronze steel pump complete with 4 pole electric motor. Single stage, close-coupled, volute pump with in-line suction and discharge ports of idenctical…
The Grundfos Magna 3 system is designed to circulate liquids in heating systems with variable flows where it is desirable to enhance the settings of the pump…
The Grundfos TP single stage cast iron pump complete with 2 pole electric motor and BSP threaded connections. Single stage, close-coupled, volute pump with in-line…
The Lowara Ecocirc XLplus system is designed to circulate liquids in heating systems with variable flows where it is desirable to enhance the settings of the pump duty…
Frequently Asked Questions
Quick answers to common questions about the Grundfos DPI 0-2.5 bar transducer kit 96611525. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is the Grundfos DPI 96611525 transducer kit used for?
The Grundfos DPI 96611525 is a differential pressure transducer kit used to measure pressure differences and provide pressure data for compatible Grundfos pump control systems.
What pressure range does the Grundfos DPI 96611525 measure?
This DPI transducer kit has a differential pressure measuring range of 0 to 2.5 bar.
Why use a differential pressure transducer with a pump system?
A differential pressure transducer allows the control system to monitor pressure conditions and adjust compatible pump operation to meet changing system demand.
