Calpeda NCS3 Series Circulator Pumps
CALPEDA NCS3 20-70/130 ENERGY EFFICIENT CIRCULATOR PUMP 240V
- Established 1975
- Trusted by thousands of customers

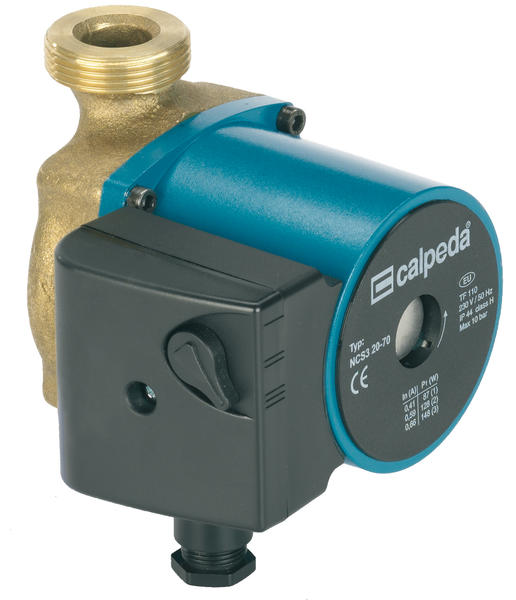

Calpeda NCS3 20-70/130 is a Calpeda 3-speed circulator with a bronze pump casing for domestic hot water circulation. It is the 7 m head size, with G 1¼ in-line ports and a maximum power input of 148 W.
Suction and delivery ports are the same size and on the same axis (in-line), and the motor can is AISI 316 stainless steel. The speed is set on the pump.
More about this product
Calpeda NCS3 20-70/130 overview
Calpeda NCS3 20-70/130 is a Calpeda 3-speed circulator with a bronze pump casing for domestic hot water circulation. It is the 7 m head size, with G 1¼ in-line ports and a maximum power input of 148 W.
Suction and delivery ports are the same size and on the same axis (in-line), and the motor can is AISI 316 stainless steel. The speed is set on the pump.
Specifications
| Model | Calpeda NCS3 20-70/130 |
|---|---|
| Motor | 2-pole induction motor, single-phase 230 V, 50 Hz, three speeds |
| Power input (P1) | speed 3: 148 W, speed 2: 128 W, speed 1: 87 W |
| Current at 230 V | speed 3: 0.66 A, speed 2: 0.59 A, speed 1: 0.41 A |
| Ports | G 1¼ (ISO 228), in-line, 130 mm port-to-port |
| Liquid temperature | +5 °C to +65 °C |
| Ambient temperature | up to 40 °C |
| Max. working pressure | 10 bar |
| Min. suction pressure | 0.05 bar at 50 °C |
| Sound pressure | ≤ 43 dB(A) |
| Protection | IP44, insulation class H |
Speeds and power
| Speed | Power input (W) | Current at 230 V (A) |
|---|---|---|
| 3 | 148 | 0.66 |
| 2 | 128 | 0.59 |
| 1 | 87 | 0.41 |
Materials
| Component | Material |
|---|---|
| Pump casing | Bronze |
| Can | Stainless steel AISI 316 |
| Impeller | Composite |
| Shaft | Ceramic |
| Bearings | Ceramic |
Applications
- Domestic hot water circulation systems
Frequently asked questions

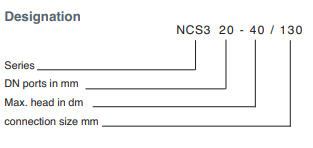

Technical data: Calpeda NCS3 data sheet (earlier edition). Head class from the model designation (head in dm).
-
