Calpeda NCE HF Series Circulator Pumps

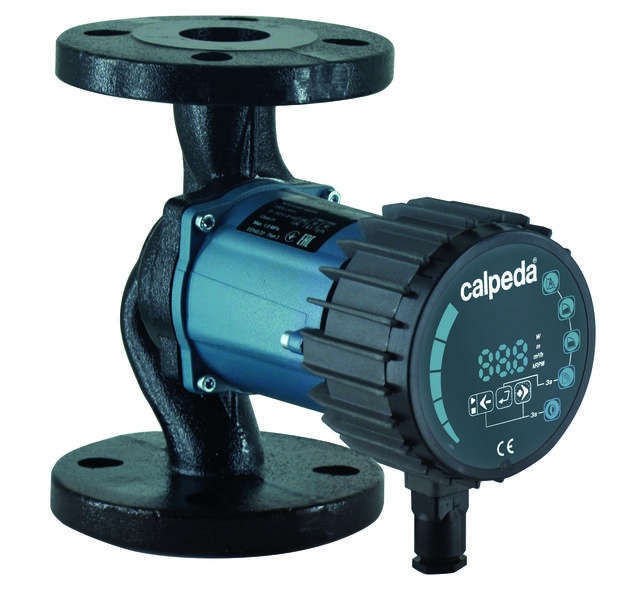

CALPEDA NCE H 40F-100/220 FLANGED ENERGY EFFICIENT CIRCULATOR PUMP
In stock
- Established 1975
- Trusted by thousands of customers
Calpeda NCE HF Series Circulator Pumps
More about this product
Construction
Energy saving variable speed circulating pump driven by a permanent magnet synchronous motor (pm) controlled by on board inverter.
Applications
Heating and conditioning systems.
Operating conditions
– Liquid temperature from +2 °C to +110 °C
– Ambient temperature from 0 °C to +40 °C
– Maximum permissible working pressure: 10 bar
– Storage: -20°C/+70°C max. relative humidity 95% at 40 °C
– Certifications: in conformity with CE requirements
– Sound pressure ≤ 40 dB (A).
– Minimum suction pressure: – 0,05 bar at 75 °C
– 0,28 bar a 90 °C.
– Maximum glycol quantity: 20%.
– EMC according to: EN 55014-1, EN 55014-2
EN 61000-3-2, EN 61000-3-2.
– Connections: Flanges according to PN 6/10, EN 1092-2,
DN 32, 40, 50.
– The benchmark for most efficient circulators is EEI ≤ 0,20.
Motor
Synchronous motor with permanent magnet.
– Motor: variable speed
– Standard voltage: single-phase 230 V (-10%;+6%)
– Frequency: 50/60 Hz
– Protection: IP 44
– Insulation class: F
– Overload protection (integrated).
– Cable: phases and neutral.
– Constructed in accordance with: EN 60335-1, EN 60335-2-51.
-
