Pedrollo NGA Cast Iron Open Impeller Centrifugal Pumps
Pedrollo NGAm 1A Single Phase 2102110
- Established 1975
- Trusted by thousands of customers

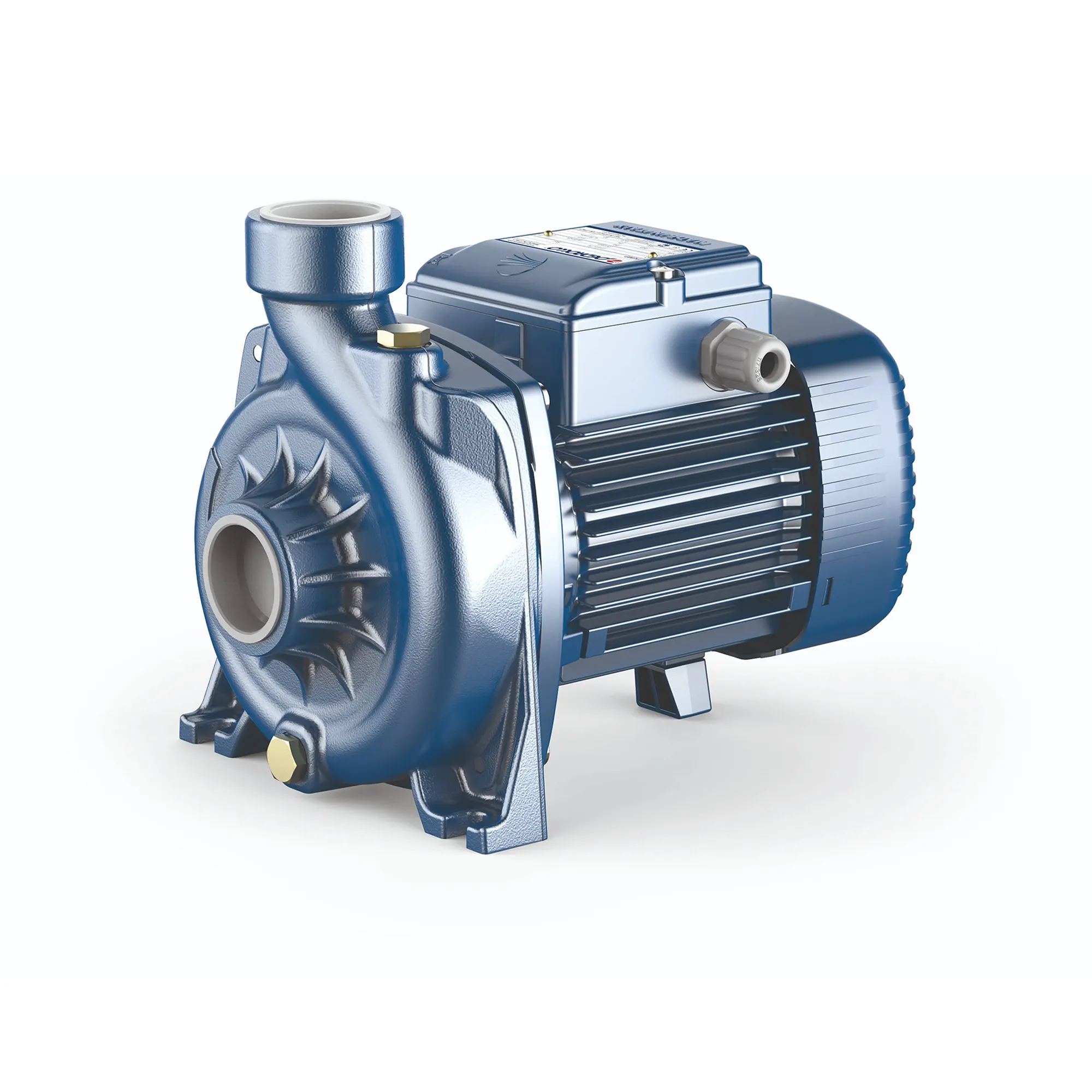

The Pedrollo NGAm 1A is a cast iron centrifugal pump with an open impeller. It has a 0.75 kW (1 HP) motor on a 230 V single-phase supply. It delivers up to 400 l/min and 20.5 m head.
The open impeller handles liquids with impurities without clogging. It passes solids up to Ø 12 mm.
More about this product
Product overview
The Pedrollo NGAm 1A is a cast iron open impeller centrifugal pump with a 0.75 kW (1 HP) motor. It runs on a 230 V single-phase supply. It covers 50 to 400 l/min, with a working head of 20 m down to 5 m.
Pedrollo design the NGA with an open impeller, so it handles liquids that are not entirely clean. It transfers water from channels, rivers, tanks and basins. It passes solids up to Ø 12 mm without clogging.
Key features
Typical applications
Technical specifications
| Brand / Series | Pedrollo — NGA |
| Model | NGAm 1A |
| Pedrollo code | 2102110 |
| Supply | 230 V single-phase |
| Motor power (P2) | 0.75 kW / 1 HP |
| Motor | 230 V single-phase motor, IE2 efficiency, with thermal protection in the winding |
| Flow range | 50–400 l/min |
| Head range | 20–5 m |
| Current | 6 A at 230 V |
| Maximum head | 20.5 m |
| Pump body | Cast iron JL 250 with cataphoresis treatment, ISO 228/1 threaded ports |
| Cover | AISI 304 stainless steel |
| Impeller | Open, cast iron |
| Mechanical seal | AR-14, Ø 14 mm, ceramic / graphite / NBR |
| Motor shaft | AISI 431 stainless steel |
| Ports | 1½″ suction, 1½″ delivery |
| Solids passage | Up to Ø 12 mm |
| Suction lift | Manometric suction head up to 7 m |
| Liquid temperature | −10 °C to +90 °C |
| Ambient temperature | −10 °C to +40 °C |
| Maximum working pressure | 6 bar |
| Insulation / protection | Class F / IP X4, continuous duty S1 |
| Weight | 12.7 kg |
| Available on request | Mechanical seal options; NPT threaded ports; liquid up to +110 °C; AISI 304 ISO 228/1 flanges; other voltages and 60 Hz |
NGA range
| Model | Code | Supply | Power | Flow | Head |
|---|---|---|---|---|---|
| NGAm 1B | 2102100 | Single Phase | 0.55 kW / 0.75 HP | 50–350 l/min | 17.4–5 m |
| NGAm 1A | 2102110 | Single Phase | 0.75 kW / 1 HP | 50–400 l/min | 20–5 m |
| NGAm 2B | 2112140 | Single Phase | 0.55 kW / 0.75 HP | 50–450 l/min | 9.4–4 m |
| NGAm 2A | 2112150 | Single Phase | 0.75 kW / 1 HP | 50–550 l/min | 10.8–4 m |
| NGAm 3D | 2102120 | Single Phase | 1.1 kW / 1.5 HP | 100–700 l/min | 12–5 m |
| NGAm 3C | 2102130 | Single Phase | 1.5 kW / 2 HP | 100–770 l/min | 14.4–5.7 m |
| NGAm 3B | 2102140 | Single Phase | 1.8 kW / 2.5 HP | 100–840 l/min | 16.5–7 m |
| NGAm 3A | 2102150 | Single Phase | 2.2 kW / 3 HP | 100–900 l/min | 19–8.5 m |
| NGA 1B | 2102160 | Three Phase | 0.55 kW / 0.75 HP | 50–350 l/min | 17.4–5 m |
| NGA 1A | 2102170 | Three Phase | 0.75 kW / 1 HP | 50–400 l/min | 20–5 m |
| NGA 2B | 2112160 | Three Phase | 0.55 kW / 0.75 HP | 50–450 l/min | 9.4–4 m |
| NGA 2A | 2112170 | Three Phase | 0.75 kW / 1 HP | 50–550 l/min | 10.8–4 m |
| NGA 3D | 2102180 | Three Phase | 1.1 kW / 1.5 HP | 100–700 l/min | 12–5 m |
| NGA 3C | 2102190 | Three Phase | 1.5 kW / 2 HP | 100–770 l/min | 14.4–5.7 m |
| NGA 3B | 2102200 | Three Phase | 1.8 kW / 2.5 HP | 100–840 l/min | 16.5–7 m |
| NGA 3A | 2102210 | Three Phase | 2.2 kW / 3 HP | 100–900 l/min | 19–8.5 m |
Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.
Frequently asked questions
What size solids will it pass?
Up to Ø 12 mm.
Can it lift water from below?
Yes. Manometric suction head is up to 7 m.
What is the maximum working pressure?
6 bar.
-
