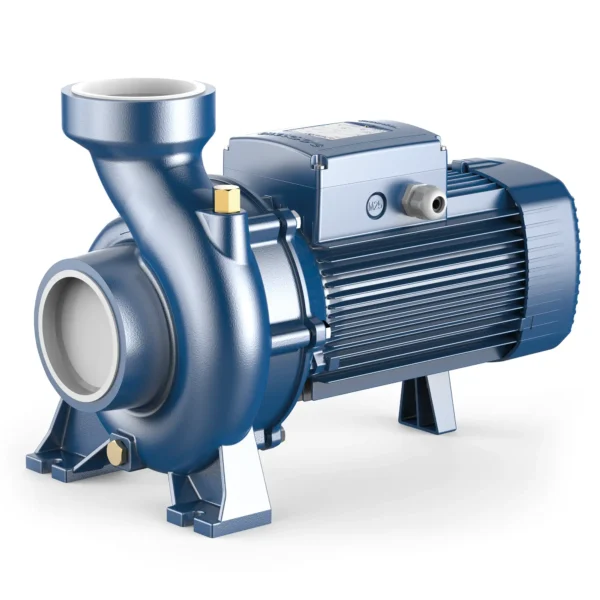

Name: Pedrollo HF 30A Three Phase 2102090
Brand: Pedrollo
SKU: 2102090
Price: 1851.6 GBP
Availability: InStock

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo HF 30A is a 7.5 kW (10 HP) high-flow centrifugal pump on a 400 V three-phase supply, moving up to 2400 l/min at up to 23 m head. Built for volume rather than pressure: moving a lot of water over a modest lift.

Part of Pedrollo’s HF range for irrigation, transfer and circulation in civil, industrial and agricultural systems. Cast iron pump body.

2400l/min

Max flow

23m

Max head

7.5kW

10 HP

400V

Three Phase

High flowCast iron bodyLow headSingle & three-phaseCode 2102090

Full Description

More about this product

Full Description

Product overview

The Pedrollo HF 30A is a 7.5 kW (10 HP) centrifugal pump for clean water on a 400 V three-phase supply, designed for high flow at low head. It covers 600 to 2400 l/min with a working head of 23 m down to 15 m.

HF pumps move large volumes of water with a modest lift, which makes them the choice for flood irrigation, filling and emptying tanks and reservoirs, circulating water in cooling and treatment plant, and draining land. Large port sizes keep friction losses low. Install indoors or under cover.

2400l/min

Max flow

23m

Max head

7.5kW

10 HP

400V

Three Phase

Key features

High flow

Wide impeller passages for large volumes at low head.

Cast iron body

Heavy-duty cast iron pump body.

Large ports

Big suction and delivery connections to keep losses low on long runs.

Single or three-phase

HFm single-phase 230 V or HF three-phase 400 V.

Continuous duty

Rated S1 for running for long periods.

Wide range

From 0.75 kW to 7.5 kW and up to 2,400 l/min across the HF High Flow range.

Typical applications

Irrigation

Flood and channel irrigation of fields and orchards.

Tank filling and emptying

Reservoirs, storage tanks and lagoons.

Circulation

Cooling water, treatment plant and aquaculture.

Drainage

Moving clean water off land and out of holding areas.

Technical specifications

Brand / Series	Pedrollo — HF
Model	HF 30A
Pedrollo code	2102090
Supply	400 V three-phase
Motor power (P2)	7.5 kW / 10 HP
Motor	Three-phase motor (IE2 or IE3 class to IEC 60034-30-1, by size)
Flow range	600–2400 l/min
Head range	23–15 m
Pump body	Cast iron
Impeller	Cast iron
Liquid	Clean water, not chemically aggressive to the pump materials
Duty	Continuous S1

HF High Flow range

Model	Code	Supply	Power	Flow	Head
HFm 4	2101960	Single Phase	0.75 kW / 1 HP	200–800 l/min	9.3–3 m
HF 4	2102000	Three Phase	0.75 kW / 1 HP	200–800 l/min	9.3–3 m
HFm 6C	2101970	Single Phase	1.1 kW / 1.5 HP	200–1000 l/min	11.7–3 m
HF 6C	2102010	Three Phase	1.1 kW / 1.5 HP	200–1000 l/min	11.7–3 m
HFm 6B	2101980	Single Phase	1.5 kW / 2 HP	200–1100 l/min	14.5–5 m
HF 6B	2102020	Three Phase	1.5 kW / 2 HP	200–1100 l/min	14.5–5 m
HFm 6A	2101990	Single Phase	2.2 kW / 3 HP	200–1200 l/min	18–6 m
HF 6A	2102030	Three Phase	2.2 kW / 3 HP	200–1200 l/min	18–6 m
HF 8B	2102040	Three Phase	3 kW / 4 HP	200–1200 l/min	21–9 m
HF 8A	2102050	Three Phase	4 kW / 5.5 HP	200–1200 l/min	24.5–13 m
HF 20B	2102060	Three Phase	3 kW / 4 HP	400–1700 l/min	19–7 m
HF 20A	2102070	Three Phase	4 kW / 5.5 HP	400–1700 l/min	21.5–10 m
HF 30C	2113840	Three Phase	4 kW / 5.5 HP	600–2400 l/min	15.2–5.5 m
HF 30B	2102080	Three Phase	5.5 kW / 7.5 HP	600–2400 l/min	18–10 m
HF 30A	2102090	Three Phase	7.5 kW / 10 HP	600–2400 l/min	23–15 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

Why is the head so low for the power?

HF pumps are designed for volume. The impeller is sized to move a lot of water over a small lift, so you get far more litres per minute than a standard centrifugal pump of the same power, at the cost of pressure.

Is it self-priming?

No. It needs a flooded suction or a foot valve and priming on the suction line.

What pipe size should I use?

Match the pump ports and avoid reducing on the suction side. Undersized suction pipe on a high-flow pump causes cavitation and loss of performance.

What water can it handle?

Clean water without abrasive particles, and liquids not chemically aggressive to cast iron.

Downloads

Data Sheet PDF
Download
