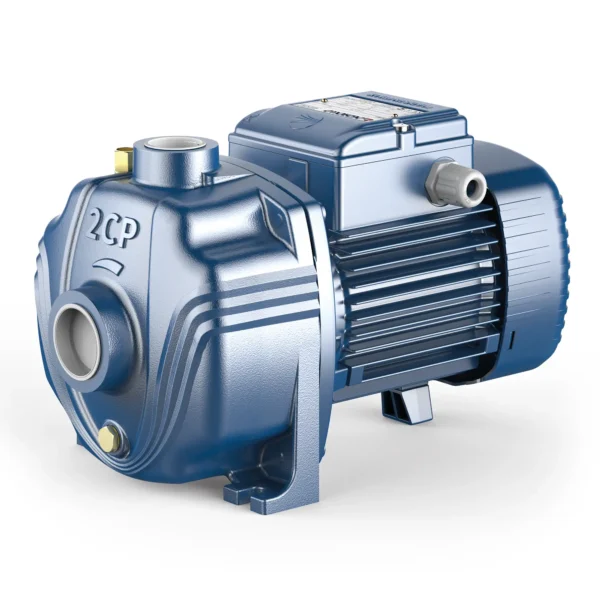

Name: Pedrollo 2CPm 25/130 Single Phase 2101540
Brand: Pedrollo
SKU: 2101540
Price: 511.8 GBP
Availability: InStock

Pedrollo Centrifugal Twin-Impeller Pump Single Phase 2CP

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

The Pedrollo 2CPm 25/130 is a 0.75 kW (1 HP) twin-impeller centrifugal pump on a 230 V single-phase supply, delivering up to 100 l/min and 39 m head. Two impellers in series give high pressure from a compact monoblock pump.

Part of Pedrollo’s 2CP range for civil, industrial and agricultural duties where both flow and pressure are needed. Cast iron pump body.

100l/min

Max flow

39m

Max head

0.75kW

1 HP

230V

Single Phase

Twin impellerCast iron bodyHigh headThree-phaseCode 2101540

Full Description

More about this product

Full Description

Product overview

The Pedrollo 2CPm 25/130 is a 0.75 kW (1 HP) twin-impeller centrifugal pump for clean water on a 230 V single-phase supply, covering 20 to 100 l/min with a working head of 39 m down to 15 m. The two impellers work in series, so it reaches heads a single-impeller pump of the same size cannot.

The 2CP suits pressure boosting, water supply to tall or spread-out buildings, irrigation with high-pressure sprinklers, and industrial transfer where pressure matters. The 32 and 40 sizes are three-phase only and cover the larger duties in the range. Install indoors or under cover.

100l/min

Max flow

39m

Max head

0.75kW

1 HP

230V

Single Phase

Key features

Twin impeller

Two impellers in series for high head from one motor.

Cast iron body

Heavy-duty cast iron pump body for long life.

Wide range

From 0.75 kW up to 11 kW, up to 450 l/min and 111 m head across the range.

High-efficiency motors

Three-phase motors to IE3 on the larger sizes.

Pressure sets

Pairs with vessels, pressure switches and inverters for constant pressure.

Continuous duty

Rated S1 for continuous running.

Typical applications

Pressure boosting

Commercial and multi-storey buildings needing high pressure.

Irrigation

High-pressure sprinkler and rain-gun irrigation.

Industrial transfer

Process and wash-down water at pressure.

Agricultural supply

Farms and smallholdings with long pipe runs.

Technical specifications

Brand / Series	Pedrollo — 2CP
Model	2CPm 25/130
Pedrollo code	2101540
Supply	230 V single-phase
Motor power (P2)	0.75 kW / 1 HP
Motor	Single-phase motor with built-in thermal overload protection
Flow range	20–100 l/min
Head range	39–15 m
Pump body	Cast iron
Liquid	Clean water, not chemically aggressive to the pump materials
Duty	Continuous S1

2CP range

Model	Code	Supply	Power	Flow	Head
2CPm 25/130	2101540	Single Phase	0.75 kW / 1 HP	20–100 l/min	39–15 m
2CP 25/130	2101600	Three Phase	0.75 kW / 1 HP	20–100 l/min	39–15 m
2CP 32/210B	2101680	Three Phase	5.5 kW / 7.5 HP	40–250 l/min	94–56 m
2CP 40/180B	2101710	Three Phase	5.5 kW / 7.5 HP	100–400 l/min	78–42 m
2CP 40/180A	2101720	Three Phase	7.5 kW / 10 HP	100–450 l/min	90–48 m
2CP 40/200B	2101730	Three Phase	9.2 kW / 12.5 HP	100–450 l/min	95–61 m
2CP 40/200A	2101740	Three Phase	11 kW / 15 HP	100–450 l/min	105–71 m

Head shown as the working range from minimum to maximum flow. Performance to Pedrollo 50 Hz data.

Frequently asked questions

What happened to the 2CP 25/14 and 25/16?

Pedrollo have replaced them with the new TURBO range. The 2CP 25/130 and the 32 and 40 sizes continue.

Is it self-priming?

No. It needs a flooded suction or a foot valve on the suction line.

Can I run it on an inverter?

Yes. Three-phase models suit Pedrollo Steadypres and PRO-DG inverters within their current ratings.

What water can it handle?

Clean water and liquids that are not chemically aggressive to cast iron, without abrasive particles.

Downloads

Data Sheet PDF
Download
