Lowara End Suction Centrifugal Pumps with Hydrovar X

Lowara e-NSCSX 80-160/40/404CC4 End Suction Centrifugal Pumps with Hydrovar X 1020LL1H0

In stock

Our Price £5,193.18 Inc VAT £4,327.65 Ex VAT
Any questions? Message us on WhatsApp (opens in new tab)
  • Established 1975
  • Trusted by thousands of customers

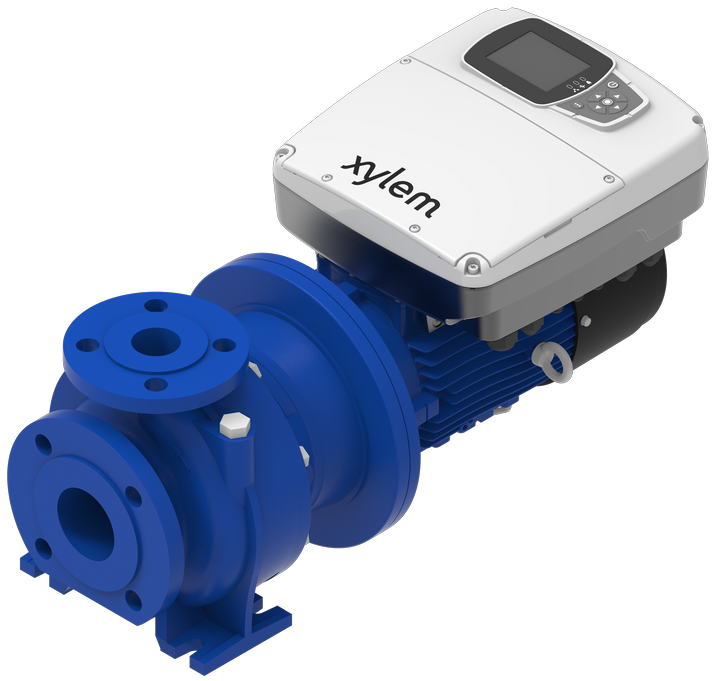

The Lowara e-NSCSX 80-160/40/404CC4 (1020LL1H0) is an end-suction centrifugal pump with integrated Hydrovar X variable-speed drive, close-coupled with a stub shaft and rigid coupling. It has a cast iron casing, cast iron impeller and a 4 kW IE5 motor running up to 1800 rpm, giving up to 162 m³/h and up to 12.4 m of head from a 3 × 380–480 V supply.

The drive matches pump speed to demand for constant pressure or flow, reaching the IES2 efficiency class for drive and motor. Two pressure transducers are supplied as standard, Modbus and BACnet are built in, and up to four pumps can be linked. DN100 suction and DN80 discharge flanges with EN 733 connection dimensions.

12.4 m
Max. head
162 m³/h
Max. flow
4 kW
Motor
DN80
Discharge
Hydrovar XVariable speedStub shaftIE5 motorPart no. 1020LL1H0
End-suction pumps are chosen on the duty point — the flow you need and the head at that flow. Send us your duty and system details and we’ll confirm the right pump before you order.
More about this product

Frequently Asked Questions

Quick answers to common questions about the Lowara e-NSCSX 80-160/40/404CC4 End Suction Centrifugal Pumps with Hydrovar X 1020LL1H0. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.

What are centrifugal pumps used for?

Centrifugal pumps use a rotating impeller to move liquids and are commonly used for water transfer, circulation and industrial processes.

How do I choose a centrifugal pump?

Compare the required flow rate, total head, liquid characteristics and electrical supply with each pump’s performance curve.

Are centrifugal pumps suitable for dirty water?

Some are designed for clean water only, while others handle solids or wastewater. Check the particular pump’s permitted liquid and solids specification.
