Name: Lowara e-HME Single Phase Pump 1HME05S03M02VBE 104630011
Brand: Lowara
SKU: 104630011
Price: 1369.98 GBP
Availability: InStock

Lowara e-HME Single Phase Pump 1HME05S03M02VBE 104630011

In stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

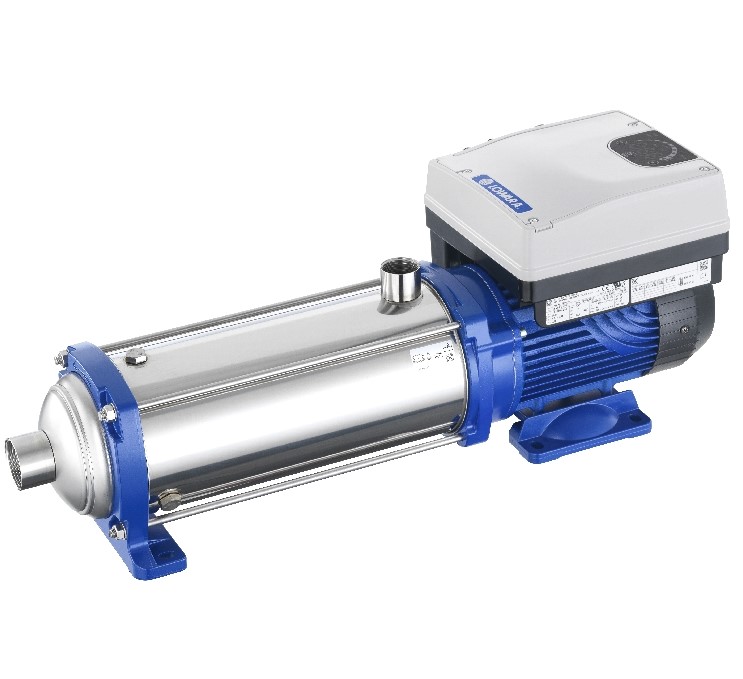

The Lowara e-HME Single Phase Pump 1HME05S03M02VBE (104630011) is an e-HM Smart horizontal multistage pump in AISI 304 stainless steel with an integrated e-SM drive and IE5 permanent-magnet motor: 5 stages, 0.37 kW, single phase, up to 44.7 m of head and up to 40 l/min (2.4 m³/h).

The built-in drive varies the speed to hold a constant pressure or follow the system curve, or runs from an external signal or a preset speed. It is set up from three buttons and a display, has built-in overload and locked-rotor protection, and up to three e-HM Smart pumps can be linked together.

44.7 m

Max. head

2.4 m³/h

Max. flow

0.37 kW

Motor

IE5

Motor efficiency

Variable speedAISI 304 stainless5 stagesSingle phasePN 16Part no. 104630011

Not sure this is the right model? Send us your application details and we’ll confirm before you order.

Full Description

More about this product

Full Description

Key specifications

Model	Lowara e-HME Single Phase Pump 1HME05S03M02VBE
Lowara part no.	104630011
Type	Horizontal multistage pump with integrated e-SM drive (e-HM Smart)
Hydraulic	1HM — 5 stages, AISI 304 stainless steel
Motor	0.37 kW IE5 permanent-magnet synchronous motor
Supply	1 × 208–240V, 50/60 Hz
Max. head (zero flow)	44.7 m
Max. flow	40 l/min (2.4 m³/h) at 25.7 m head
Max. absorbed power	0.49 kW
Max. current	2.24 A (208–240V)
Connections	Rp 1″ suction / Rp 1″ delivery, threaded
Mechanical seal	Aluminium oxide / carbon / EPDM
Liquid temperature	Up to +90°C (single-phase version)
Max. operating pressure	16 bar (PN 16)
Drive / motor protection	IP55, overload and locked-rotor protection with automatic reset
Ambient temperature	–20 to +50°C

Features

Integrated drive

Speed control built in — no separate inverter to wire or set up.

IE5 motor

Permanent-magnet synchronous motor for very low running costs.

More performance

Electronic control gives around 20% more performance than an equivalent fixed-speed pump.

Easy set-up

Three buttons and a clear display for parameters and alarms.

Multi-pump

Link up to three e-HM Smart pumps together.

Built for

Pressure boosting

Domestic, commercial and light industrial boosting.

Water supply

Supply from tanks and break tanks.

Washing systems

Industrial and commercial washing.

Water treatment

Filtration and treatment systems.

FAQs

How much will it pump?

Up to 40 l/min (2.4 m³/h) with 25.7 m of head at full speed, or up to 44.7 m of head at no flow.

What does the model number mean?

1 is the nominal flow in m³/h, HM the series, E the e-SM drive version, 05 the number of impellers, S the AISI 304 stainless steel version and 03 the motor power in kW×10.

Do I need a separate inverter?

No — the e-SM drive is built into the motor.

What size are the connections?

Rp 1″ suction and Rp 1″ delivery, both threaded.

Downloads

Data Sheet PDF
Download
e-HM Catalogue PDF
Download
