Name: KVCX 40-50M (60212498)
Brand: DAB
SKU: 8038-40-50
Price: 525.72 GBP
Availability: InStock

In stock

Established 1975
Trusted by thousands of customers

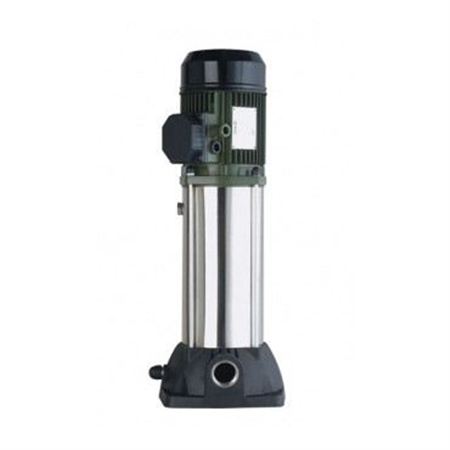

DAB KVCX 40/50M — 4-stage vertical multistage centrifugal pump, 0.8 kW (1.1 HP), 1×220–240 V / 50 Hz. Max head 54.9 m, flow to 80 l/min. Corrosion-proof technopolymer hydraulics with AISI 304/303 stainless internals, in-line G 1¼" suction with an orientable stainless delivery union off the jacket.

54.9 m head80 l/min4 stages0.8 kWG 1¼" portsIP55

Full Description

More about this product

Full Description

The DAB KVCX 40/50M is a vertical multistage centrifugal pump with 4 stages and an integral (close-coupled) 0.8 kW (1.1 HP) motor, for clean-water pressure boosting. It delivers a maximum head of 54.9 m with flows to 80 l/min, through in-line G 1¼" suction with an orientable stainless delivery union off the jacket.

At a glance

54.9 m

Max head

80 l/min

Max flow

Stages

0.8 kW

Motor (P2)

5.6 A

Full-load current

15.8 kg

Weight

Performance

Flow (l/min)	0	10	20	30	40	50	55	65	80
Head (m)	54.9	53.7	52	49.7	46.3	42.1	39.6	33.7	22.9

Curves to ISO 9906 at 1 mm²/s viscosity and 1000 kg/m³ density.

Motor & electrical

Specification	Detail
Power supply	1×220–240 V / 50 Hz (single-phase)
Rated power (P2)	0.8 kW / 1.1 HP
Full-load current	5.6 A
Stages	4
Speed	2800 rpm (2-pole)
Motor	Asynchronous, totally enclosed, fan-cooled
Run capacitor	20 µF / 450 V
Protection	Built-in thermal overload — no external protection needed
Enclosure	IP55, insulation class F

Dimensions & connections

Specification	Detail
Suction / delivery (DNA / DNM)	G 1¼" / G 1¼"
Port arrangement	Orientable delivery off jacket (KVCX)
Overall height (H)	505 mm
Delivery offset (H2)	184 mm
Footprint (A × B)	221 × 235 mm
Net weight	15.8 kg
Max working pressure	12 bar (1200 kPa)
Liquid temperature	0 °C to +35 °C (domestic); to +40 °C (other uses)
Mounting	Vertical or horizontal (motor above pump)

Materials

Technopolymer pump body, impellers and diffusers (fully corrosion-proof); AISI 304 stainless jacket, wear rings and seal-carrier disc; AISI 303 stainless shaft; silicon-carbide–carbon / ceramic mechanical seal; EPDM O-rings; bronze centring bush. Built to EN 60335-2-41 (CEI 2-3 / CEI 61-69).

Typical applications

Pressure boosting and autoclave / tank supply, sprinkler and spray irrigation, fire-fighting and wash-down, and condensate / cooling-water transfer. For clean water only — not for abrasive, viscous, aggressive or solids-laden liquids, and must not be run dry.
