Ebara JESX & JEX Pumps
Ebara JEX/l 100 400v
In stock
- Established 1975
- Trusted by thousands of customers
Ebara JEX/l 80

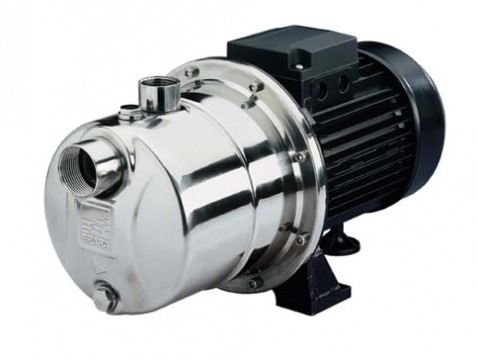

The JEX 100 self priming pump from Ebara is suitable for the supply of drinking water, domestic pressure boosting, small-scale garden irrigation, emptying reservoirs and swimming pools and the moving clean water in general.
Pump Technical Data
- Liquid handled: Clean water
- Temperature range: 5 to 45°C
- Maximum working pressure: 0.6 MPa
- Maximum suction depth: 8 m
- Suction connection: G1¼”
- Discharge connection: G1″
Motor Technical Data
- Type: Three phase
- No. of poles: 2
- Rotation speed: 2800 min-1
- Insulation class: F
- Protection degree: IP 54
- Frequency: 50Hz
Materials
- Casing: AISI 304
- Impeller: AISI 304
- Casing cover: AISI 304
- Shaft seal: Ceramic/Carbon/NBR
- Shaft: AISI 303 (wet extension)
- Ejector: PPE+PS glass fibre reinforced
- Bracket: Aluminium
- Diffuser: PPE+PS glass fibre reinforced
- Motor support: Aluminium
More about this product
- JEX 100: Three phase
- Part number: 1665050004I
- Power: 0.75kW, 1.0HP
- Efficiency: IE3
- Input: 1.13kW
- Full Load Current: 230V – 3.5A / 400V 2.0A
- Locked Rotor Current: 230V – 22A / 400V – 12.9A
- Impeller diameter: 141mm
- Noise data: <71 LPA – dB(A)
-
