Ebara CDXMHS/A 70/05 230v Brewery Pump -

Our Price £628.80 Inc Vat £524.00 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

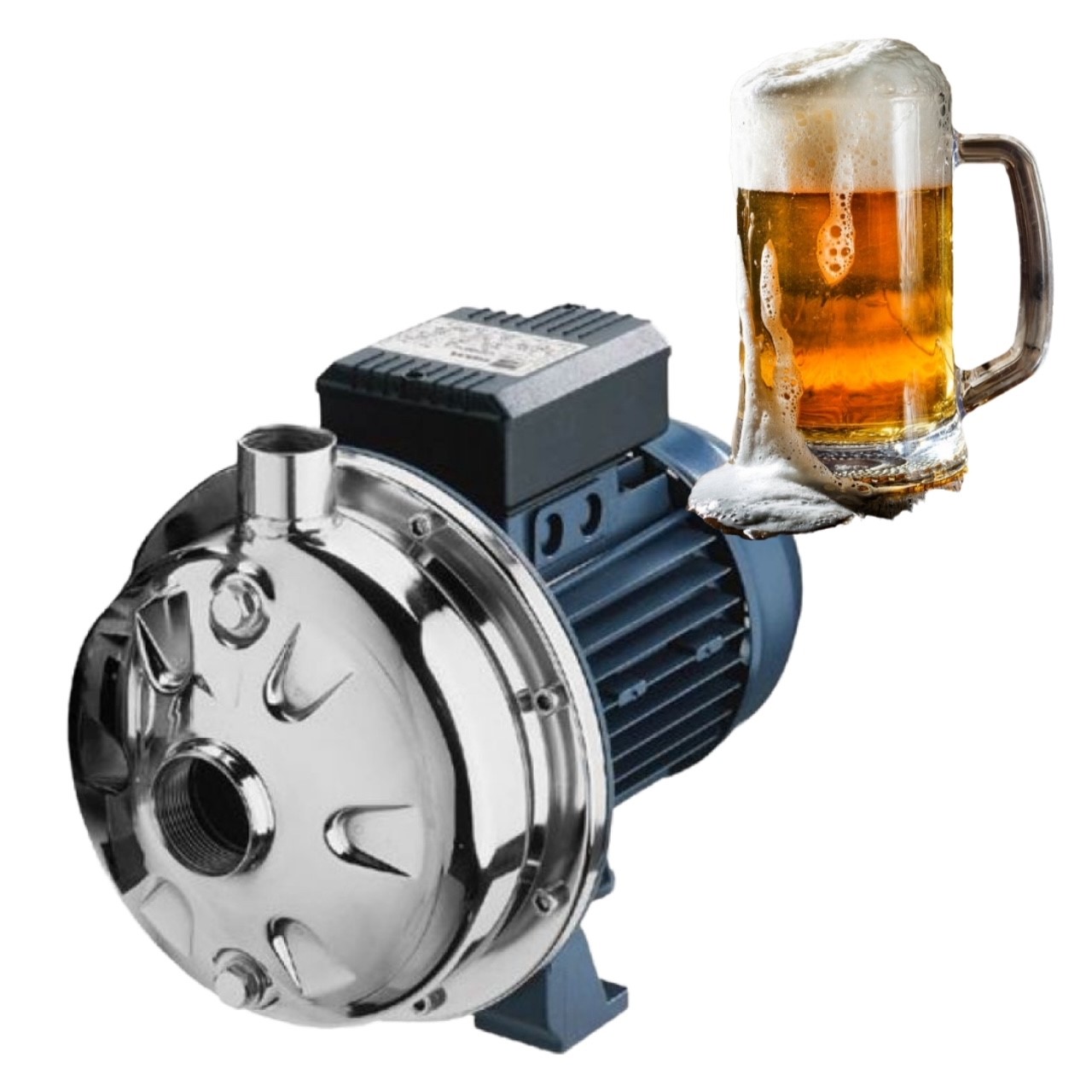

Ebara Brewery pump

The CDXMHS/A 70/05 from Ebara is a pump with adpated seal specially for the brewery industry.

Can be used for transfering applications, CIP, wash down and various jobs around a brewery.

Full Description

More about this product

Full Description

Electric Data

Single Phase – 230V
Power – 0.5HP, 0.37kW
Current: 3.4A

Technical Details

Solid hydraulic structure
Maximum working pressure: 8 bar
Self-ventilated 2 pole asynchronous motor
Class of insulation: F
IP55 Protection rating
230V ±10%, 50Hz
Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
G1¼ suction connection
G1 discharge connection

Materials

Pump body, impeller, nozzle and seal housing disc in AISI 304
Shaft in AISI 303
Support and motor casing in aluminium
Mechanical sealing in:
– SiC/SiC/FPM (HS version)

Downloads

data sheet PDF
Download
