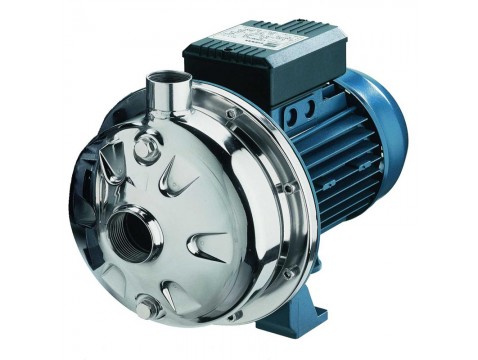

Name: Ebara CDXHM/E 200/12 Stainless Centrifugal Pump, High-Temp Seal 230v - 1635109000E
Brand: Ebara
SKU: 1635109000E
Price: 1046.4 GBP
Availability: InStock

Ebara CDXHM/E 200/12 Stainless Centrifugal Pump, High-Temp Seal 230v - 1635109000E

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

Ebara CDXHM/E 200/12 single-stage centrifugal pump in pressed AISI 304 stainless steel, fitted with Ebara’s H high-temperature mechanical seal — ceramic/carbon faces with FPM (Viton) elastomers, rated to 110 °C against 90 °C for the standard seal.

1.1 kW 230v single-phase motor with built-in capacitor and thermal overload. G1½″ suction × G1″ discharge, 8 bar maximum working pressure.

22.8 m

Max head

250 l/min

Max flow

1.1 kW

230v 1ph

110 °C

Seal rating

Warm process water
Heat recovery
Washing systems
NBR-incompatible fluids

Hot water — on water, Ebara recommend a maximum of 75 °C with FPM elastomers for the longest seal life.

Full Description

More about this product

Full Description

The Ebara CDXHM/E 200/12 is a single-stage, end-suction centrifugal pump in pressed AISI 304 stainless steel, built with Ebara’s optional H mechanical seal. The H seal swaps the standard NBR elastomers for FPM (Viton) and raises the seal’s temperature limit from 90°C to 110°C, making it the choice for warmer fluids and for liquids that would attack standard NBR rubber. Hydraulically it is identical to the standard CDX 200/12: 22.8 m head at closed valve and flows up to 250 l/min.

22.8 m

Maximum head

250 l/min

Maximum flow

1.1 kW

Single phase 230v

110°C

Maximum fluid temp

8 bar

Max working pressure

Seal and construction

Higher temperature rating

Seal rated to 110°C fluid temperature, against 90°C for the standard Ebara CDX seal.

FPM (Viton) elastomers

FPM O-rings on the seal and casing resist oils, fuels and many chemicals that swell or degrade NBR.

Ceramic / carbon faces

Proven ceramic rotary against carbon graphite stationary face — smooth running on clean fluids.

All-stainless wetted parts

Pressed AISI 304 casing, impeller and casing cover; AISI 303 shaft.

Hot water note: Ebara rate this seal to 110°C, but where the pumped fluid is water they recommend a maximum of 75°C with FPM elastomers for the longest seal life. For continuous hot water service above 75°C, ask us about the E-seal (EPDM) version, rated to 120°C.

Performance

Flow (l/min)	Flow (m³/h)	Head (m)
80	4.8	21.3
90	5.4	21
110	6.6	20.4
130	7.8	19.7
160	9.6	18.5
180	10.8	17.6
210	12.6	16
250	15	14

Recommended working range from the Ebara CDX 50Hz data book (ISO 9906 Grade 3B). Closed-valve head 22.8 m. Do not run below 10% of best-efficiency flow.

Technical specification

Model	CDXHM/E 200/12
Ebara part number	1635109000E
Pump type	Single-stage end-suction centrifugal, closed impeller
Mechanical seal	H high-temperature mechanical seal — Spring-loaded mechanical seal, 15 mm shaft
Seal faces	Ceramic rotary / carbon graphite stationary
Seal elastomers	FPM (Viton)
Seal metalwork	AISI 316 spring, AISI 304 frame
Fluid temperature	-5°C to +110°C (75°C max recommended on water)
Max working pressure	8 bar (0.8 MPa)
Suction / discharge	G1½” female / G1″ female (ISO 228-1)
Impeller diameter	132 mm
Motor power	1.1 kW
Supply	230v single phase (50Hz)
Full load current	6.6 A at 230v
Capacitor / overload	31.5 µF built in / thermal overload built in
Speed	2-pole, approx. 2800 rpm
Protection / insulation	IP55 / Class F, TEFC
Casing, impeller, cover	AISI 304 stainless steel (EN 1.4301)
Shaft	AISI 303 stainless steel
Bracket / motor housing	Aluminium
Bearings	6203 pump side / 6202 fan side, sealed
Noise	62 dB(A) at 1 m
Dimensions (L × W × H)	333 × 208 × 229.5 mm
Weight	12.5 kg

Typical applications

Warm process water and heat-recovery circuits
Oils, light hydrocarbons and fluids not compatible with NBR
Industrial washing and cleaning systems
Circulation and transfer in light industry

FAQ

What is the difference between the H seal and the standard seal?

The standard CDX seal uses NBR elastomers and is rated to 90°C. The H seal uses FPM (Viton) elastomers and is rated to 110°C, with better resistance to oils and many chemicals.

Is this suitable for hot water?

Yes, with a caveat: on water, Ebara recommend a maximum of 75°C with FPM elastomers for long seal life. For continuous water above 75°C, the EPDM E-seal version rated to 120°C is the better choice.

Is it self-priming?

No. The CDX is a standard centrifugal pump and needs a flooded suction or a foot valve with the casing primed before start-up.

Do I need a separate overload or starter?

No. The single-phase motor has a built-in capacitor and thermal overload.
