Lowara CO/COM Pumps

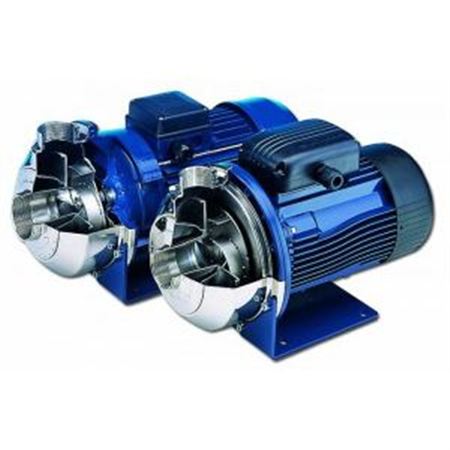

Lowara COM 350/09K/A 230V
- Established 1975
- Trusted by thousands of customers
The Lowara COM 350/09K/A 230V is a close-coupled open-impeller centrifugal pump with every wetted part in AISI 316L stainless steel, a 1.1 kW 230V single phase motor and a silicon carbide / tungsten carbide (K) mechanical seal. It delivers up to 400 l/min (24 m³/h) with up to 15.7 m of head.
CO pumps are made for industrial washing machines, commercial dishwashers, metal-part washing, food-industry and textile plant, and for liquids with light chemical aggressiveness. The open impeller passes suspended solids up to 11 mm, and the pump body has no diffusers or cavities, so it is easy to clean.
More about this product
The Lowara COM 350/09K/A 230V is a close-coupled open-impeller centrifugal pump with every wetted part in AISI 316L stainless steel, a 1.1 kW 230V single phase motor and a silicon carbide / tungsten carbide (K) mechanical seal. It delivers up to 400 l/min (24 m³/h) with up to 15.7 m of head.
The open impeller has four pressed vanes welded to the base disc, with a stainless steel wear plate on the suction port. The back pull-out design and an 8-screw pump body that lets the discharge head be rotated make servicing and installation straightforward.
Key specifications
| Model | Lowara COM 350/09K/A 230V |
| Type | Close-coupled open-impeller centrifugal pump |
| Motor power | 1.1 kW |
| Supply | 230V single phase, 50 Hz |
| Max. flow | 400 l/min (24 m³/h) at 5.9 m head |
| Max. head (zero flow) | 15.7 m |
| Max. absorbed power | 1.19 kW |
| Max. current | 5.23 A (220–240V) |
| Capacitor | 30 µF |
| Suction / delivery | Rp 1½″ / Rp 1¼″ threaded |
| Impeller | Open, four vanes, AISI 316L stainless steel |
| Solids passage | Up to 11 mm |
| Mechanical seal | K version: silicon carbide / tungsten carbide, FPM elastomers |
| Wetted parts | AISI 316L stainless steel |
| Liquid temperature | –10 to +110°C |
| Max. working pressure | 8 bar (PN 8) |
| Max. ambient temperature | 45°C |
| Motor | IP55, class F |
| Weight | 14 kg |
Features
Built for
FAQs
-
data sheet PDFDownload
-
Data PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
