Calpeda NRM Inline Centrifugal Pump 240v
Calpeda NRM 50C/A Inline Centrifugal Pump 240v 70N00430000
- Established 1975
- Trusted by thousands of customers

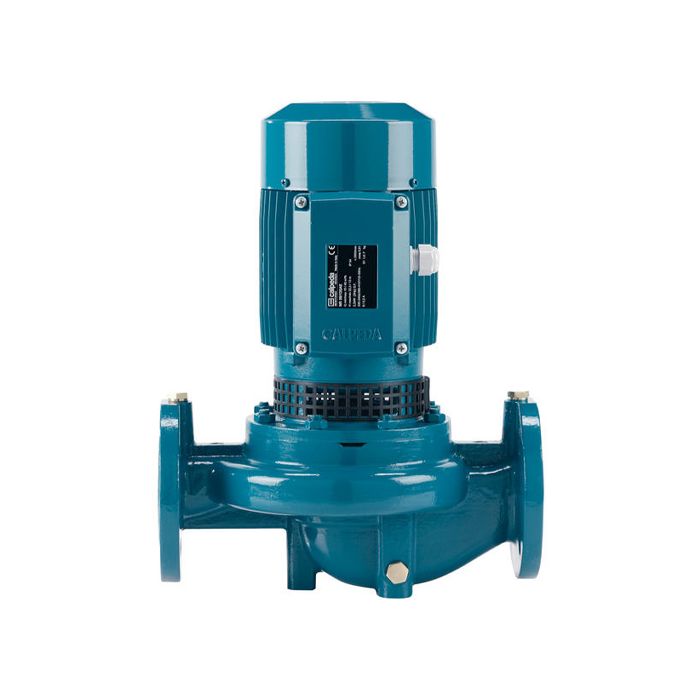

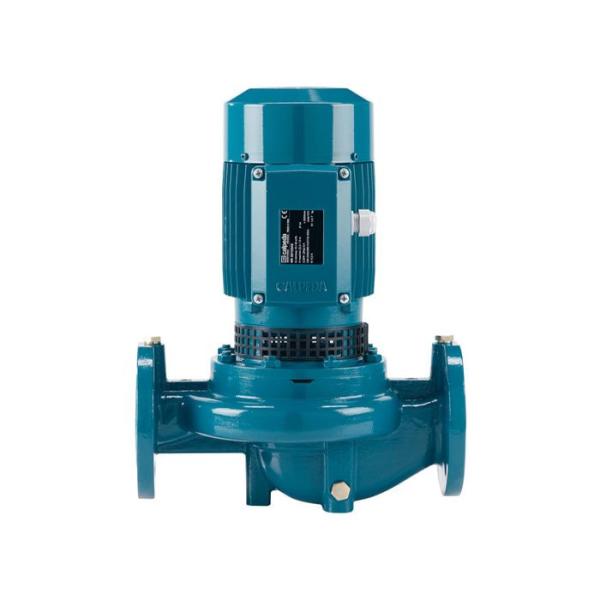

Calpeda NRM 50C/A is a Calpeda single-phase in-line close-coupled centrifugal pump, part number 70N00430000. It delivers up to 315 l/min (18.9 m³/h) and a maximum head of 16.2 m (1.6 bar), driven by a 0.75 kW motor (three-phase 230/400 V 50 Hz).
The Calpeda NRM is the single-phase version of the NR in-line close-coupled centrifugal pump, with flanged suction and delivery ports of the same size on the same axis, a cast iron pump casing and a 230 V motor.
More about this product
Calpeda NRM 50C/A overview
Calpeda NRM 50C/A is a Calpeda single-phase in-line close-coupled centrifugal pump, part number 70N00430000. It delivers up to 315 l/min (18.9 m³/h) and a maximum head of 16.2 m (1.6 bar), driven by a 0.75 kW motor (three-phase 230/400 V 50 Hz).
The Calpeda NRM is the single-phase version of the NR in-line close-coupled centrifugal pump, with flanged suction and delivery ports of the same size on the same axis, a cast iron pump casing and a 230 V motor.
Specifications
| Model | Calpeda NRM 50C/A |
|---|---|
| Calpeda part number | 70N00430000 |
| Motor power (P2) | 0.75 kW (1 HP) |
| Supply | Three-phase 230/400 V 50 Hz |
| Rated current | 5.7 A at 230 V |
| Max. flow | 315 l/min (18.9 m³/h) at 5.5 m |
| Max. head | 16.2 m (1.6 bar) |
| Connections | DN 50 suction and delivery |
| Liquid temperature | -10 °C to +90 °C |
| Ambient temperature | up to 40 °C |
| Total suction lift | up to 7 m |
| Max. working pressure | 10 bar |
| Duty | Continuous (S3 60% for single-phase 1.5 kW) |
| Weight | 24.1 kg |
Performance
Total head at each flow, from the Calpeda NR, NRS 50 Hz data sheet (approx. rated speed, clean cold water).
| Flow (l/min) | Flow (m³/h) | Head (m) | Pressure (bar) |
|---|---|---|---|
| 0 (shut-off) | 0 | 16.2 | 1.6 |
| 100 | 6 | 16 | 1.6 |
| 110 | 6.6 | 15.9 | 1.6 |
| 125 | 7.5 | 15.8 | 1.5 |
| 140 | 8.4 | 15.7 | 1.5 |
| 160 | 9.6 | 15.3 | 1.5 |
| 180 | 10.8 | 14.6 | 1.4 |
| 200 | 12 | 14 | 1.4 |
| 220 | 13.2 | 13 | 1.3 |
| 250 | 15 | 11 | 1.1 |
| 280 | 16.8 | 9 | 0.9 |
| 315 | 18.9 | 5.5 | 0.5 |

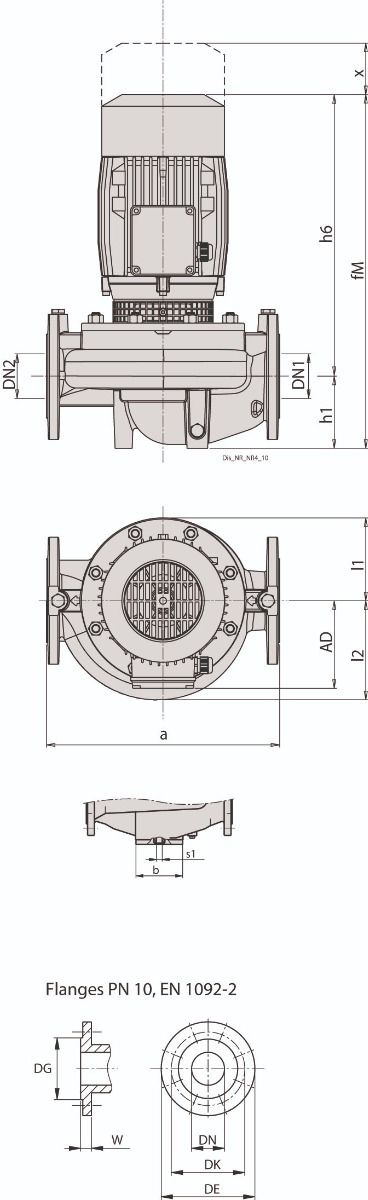

Construction and features
- In-line construction: suction and delivery ports of the same size on the same axis
- Close-coupled design: motor with extended shaft directly connected to the pump
- Flanged connections PN 10-16 to EN 1092-2 (counter-flanges on request)
- Cast iron pump casing and lantern bracket
- Single-phase 230 V motor, 2-pole, 50 Hz, approx. 2900 rpm, insulation class F, IP54
- IE2 efficiency class for single-phase motors up to 1.1 kW
Materials
| Component | Material |
|---|---|
| Pump casing | Cast iron GJL 200 EN 1561 |
| Lantern bracket | Cast iron GJL 200 EN 1561 |
| Impeller | Cast iron GJL 200 EN 1561 (brass CW617N for NR 32, 40 and 50/200) |
| Shaft | Chrome-nickel steel AISI 303 (AISI 430F for NR 32/12 and NR 50) |
| Mechanical seal | Carbon / ceramic / NBR |
Applications
- Heating, air-conditioning, cooling and circulation systems
- Civil and industrial applications
- Clean liquids without abrasives that are not aggressive to the pump materials (solids content up to 0.2%)
Frequently asked questions
Technical data: Calpeda NR, NRS data sheet, 50 Hz. Performance tolerances to UNI EN ISO 9906:2012.
