Calpeda NR EI Inline Centrifugal I-MAT Pump 415v
Calpeda NR EI 50/200B/A Inline Centrifugal I-MAT Pump 415v I70MA0801000
- Established 1975
- Trusted by thousands of customers
Calpeda NR EI 50/200B/A is a Calpeda in-line centrifugal pump with I-MAT inverter, part number I70MA0801000. It delivers up to 550 l/min (33 m³/h) and a maximum head of 50.9 m (5 bar), driven by a 5.5 kW motor with on-board I-MAT inverter.

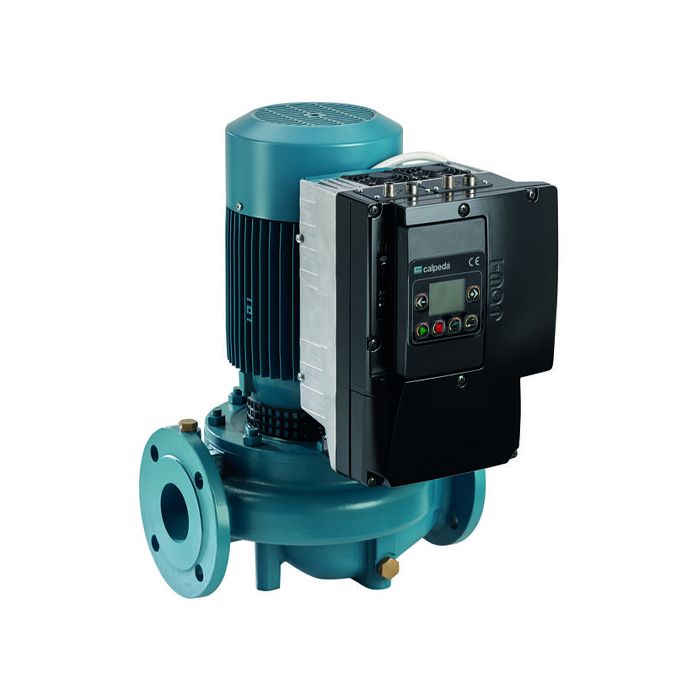

The Calpeda NR EI is the NR in-line close-coupled centrifugal pump fitted with Calpeda's on-board I-MAT frequency converter, giving a compact variable-speed pump for heating, cooling and circulation systems.
More about this product
Calpeda NR EI 50/200B/A overview
Calpeda NR EI 50/200B/A is a Calpeda in-line centrifugal pump with I-MAT inverter, part number I70MA0801000. It delivers up to 550 l/min (33 m³/h) and a maximum head of 50.9 m (5 bar), driven by a 5.5 kW motor with on-board I-MAT inverter.
The Calpeda NR EI is the NR in-line close-coupled centrifugal pump fitted with Calpeda's on-board I-MAT frequency converter, giving a compact variable-speed pump for heating, cooling and circulation systems.
Specifications
| Model | Calpeda NR EI 50/200B/A |
|---|---|
| Calpeda part number | I70MA0801000 |
| Motor power (P2) | 5.5 kW (7.5 HP) |
| Supply | Via on-board I-MAT inverter; motor three-phase |
| Max. flow | 550 l/min (33 m³/h) at 36.5 m |
| Max. head | 50.9 m (5 bar) |
| Connections | DN 50 suction and delivery |
| Liquid temperature | -10 °C to +90 °C |
| Ambient temperature | up to 40 °C |
| Total suction lift | up to 7 m |
| Max. working pressure | 10 bar |
| Duty | Continuous |
| Variable speed | On-board I-MAT frequency converter |
| Hydraulics | Calpeda NR 50/200B/A (full-speed curve) |
Performance
Full-speed (approx. 2900 rpm) total head at each flow for the NR 50/200B/A hydraulics, from the Calpeda NR 50 Hz data sheet.
| Flow (l/min) | Flow (m³/h) | Head (m) | Pressure (bar) |
|---|---|---|---|
| 0 (shut-off) | 0 | 50.9 | 5 |
| 250 | 15 | 48.5 | 4.8 |
| 280 | 16.8 | 47.7 | 4.7 |
| 315 | 18.9 | 46.8 | 4.6 |
| 350 | 21 | 45.7 | 4.5 |
| 400 | 24 | 43.9 | 4.3 |
| 450 | 27 | 41.7 | 4.1 |
| 500 | 30 | 39.2 | 3.8 |
| 550 | 33 | 36.5 | 3.6 |
Construction and features
- NR in-line close-coupled pump: flanged ports of the same size on the same axis
- I-MAT frequency converter installed on board
- Cast iron pump casing and lantern bracket

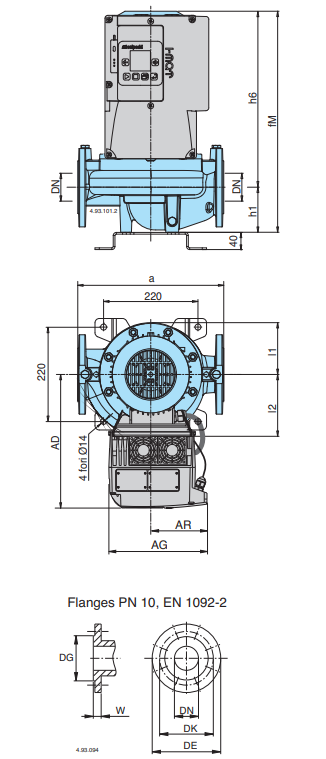

- Flanged connections PN 10-16 to EN 1092-2
Materials
| Component | Material |
|---|---|
| Pump casing | Cast iron GJL 200 EN 1561 |
| Lantern bracket | Cast iron GJL 200 EN 1561 |
| Impeller | Cast iron GJL 200 EN 1561 (brass CW617N for NR 32, 40 and 50/200) |
| Shaft | Chrome-nickel steel AISI 303 (AISI 430F for NR 32/12 and NR 50) |
| Mechanical seal | Carbon / ceramic / NBR |
Applications
- Heating, air-conditioning, cooling and circulation systems
- Civil and industrial applications
- Clean liquids without abrasives that are not aggressive to the pump materials (solids content up to 0.2%)
Frequently asked questions
Technical data: Calpeda NR, NRS data sheet, 50 Hz. Performance tolerances to UNI EN ISO 9906:2012.
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the Calpeda NR EI 50/200B/A Inline Centrifugal I-MAT Pump 415v I70MA0801000. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What are centrifugal pumps used for?
Centrifugal pumps use a rotating impeller to move liquids and are commonly used for water transfer, circulation and industrial processes.
How do I choose a centrifugal pump?
Compare the required flow rate, total head, liquid characteristics and electrical supply with each pump’s performance curve.
Are centrifugal pumps suitable for dirty water?
Some are designed for clean water only, while others handle solids or wastewater. Check the particular pump’s permitted liquid and solids specification.
What types of Calpeda pumps can I explore?
Calpeda produces pumps for water supply, pressure boosting, drainage and circulation. Choose a model according to the required flow, head and liquid.
Are Calpeda pumps suitable for commercial installations?
Yes. Calpeda offers pump ranges for domestic, commercial and industrial duties; suitability depends on the individual model and duty point.
How do I choose a replacement Calpeda pump?
Check the existing pump model, supply voltage, connection dimensions, flow rate and required head before selecting a replacement.
