Wilo Pressure Sensor

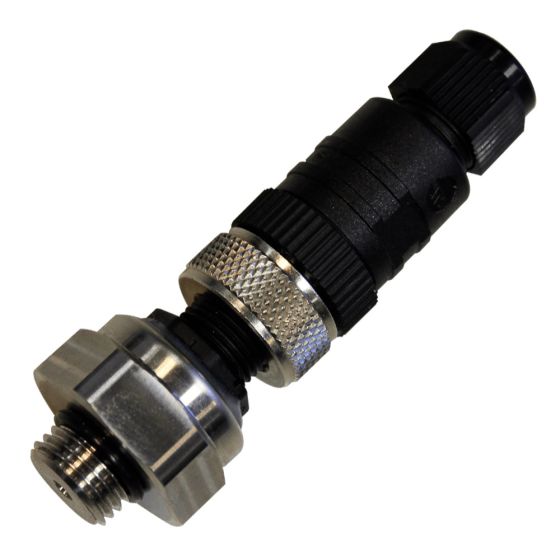

Wilo Pressure Sensor 0-40 Bar 2550664
- Established 1975
- Trusted by thousands of customers
Wilo Pressure sensor, 0 – 40 bar pressure control
Signal transmitter for differential pressure-sensitive infinitely variable speed control.
More about this product
Overview
Signal transmitter for differential pressure-sensitive infinitely variable speed control.
Note
Take care to ensure that a non-return valve is placed between pump and sensor. Further maintenance valves and a diaphragm pressure vessel are required for error-free functioning.
Specification
| Model | Wilo Pressure sensor, 0 – 40 bar |
|---|---|
| Part number | 2550664 |
| Series | Pressure sensor for systems |
| Fluid temperature | 0 °C to 90 °C |
| Ambient temperature | -20 °C to 80 °C |
| Protection class | IP65 |
Technical data
| Output signal | 4-20mA |
|---|---|
| Cable length | 0 m |
| Protection class | IP65 |
| Min. measurement range | 0 bar |
| Max. measurement range | 40 bar |
| Cable connection | Plug M12x1 |
| Inlet connection | G ¼ |
| Connection standard | DIN ISO 228-1 |
Operating data
| Min. ambient temperature | -20 °C |
|---|---|
| Max. ambient temperature | 80 °C |
| Min. fluid temperature | 0 °C |
| Max. fluid temperature | 90 °C |
| Min. storage temperature | -20 °C |
| Max. storage temperature | 80 °C |
Materials
| Material, gasket | EPDM |
|---|---|
| Material pressure connection | Stainless steel |
Dimensions and weight
| Length × width × height | 79 × 30 × 25 mm |
|---|---|
| Net weight | 0.06 kg |
Features and equipment
Scope of delivery
- Pressure sensor (factory-calibrated)
- Plug
