TT Pumppal TTC/PPAL - Anglian Pumping Services

Our Price £360.70 Inc Vat £300.58 Ex Vat

In stock

Established 1975
Trusted by thousands of customers

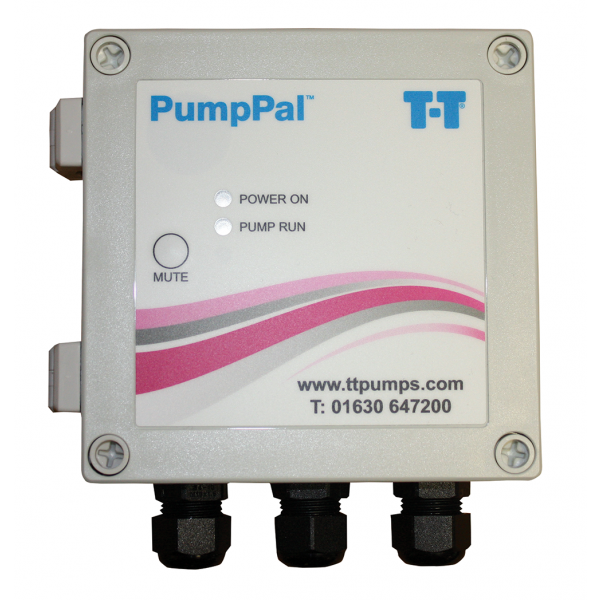

TT Pumppal TTC/PPAL

PumpPal is a range of versatile units offering a wide variety of functions such as 1Ph motor control, dry running indicator, protection or water detection to name a few. Available in dual input voltage 230V/110V, PumpPal incorporates mains healthy indication, the ability to be used for filling or emptying applications whilst controlling a 1Ph 230V motor directly up to 8A FLC. An audible warning alarm is provided with mute facility which can be selected to sound consistently upon alarm or intermittently during operation, particularly suited to basements where under normal circumstances water should not be present. Level detection can be via our LevelPal, float switch or conductivity probes.

PumpPal PRO incorporates all the features of PumpPal with the provision for a 2nd level detector for high level alarm, complete with volt free contacts for remote signalling to BMS.

Full Description

More about this product

Full Description

FEATURES:

PCB design
Run on timer for use with residue pumps
Adjustable sensitivity on conductivity circuit
Compact weatherproof enclosure, IP66 rating
Can control single phase motors up to 8AMP FLC
Audible alarm c/w mute configurable for continuous or intermittent use
LED indication for mains healthy and pump running/ relay active
Dual voltage input 230V / 110V 1Ph
Levelpal supplied with 10m cable as standard, longer lengths available upon request
Volt free contacts available for remote monitoring
2nd sensor e.g. high level on PumpPal Pro
"Test" button facility

Additional Information

APPLICATIONS:

Single phase pump control (up to 8AMP)

Dry run sensor

Flood monitor

Flow sensor

Remote indication

Remote signalling

Residue pump operation

Server room water detection
