Name: Triton LR21 Miniature Side-Mount Float Switch 0.3m LR21-L0M3
Brand: Triton
SKU: lr21
Price: 7.22 GBP
Availability: OutOfStock

Triton LR21 Miniature Side-Mount Float Switch 0.3m LR21-L0M3

Out of stock

Any questions? Message us on WhatsApp

Established 1975
Trusted by thousands of customers

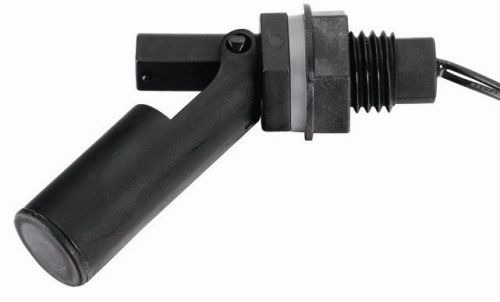

The Triton LR21 is a miniature, side-mounted float switch for small tanks where a conventional cable float will not fit. Its polypropylene body screws through the tank wall on an M16 thread, and a hinged float operates a sealed reed switch.

It is a signal-level switch for most clean liquids, rated 10 W maximum, so it feeds a relay, alarm or pump controller rather than switching a pump directly. Supplied with 300 mm leads.

0.3 m

PVC leads

10 W

max contact rating

M16

side mounting

85°C

max temperature

Side mountedReed switchNormally openPolypropyleneCompactSignal level

Not for direct pump control: 10 W / 0.5 A maximum. Use it as an input to a relay, alarm or controller such as the Triton LR31 basic pump controller.

Full Description

More about this product

Full Description

Triton LR21 miniature side-mount float switch

The Triton LR21 (LR21-L0M3) is a compact level switch for small tanks, reservoirs and equipment where there is no room for a hanging cable float. It mounts horizontally through the tank wall: the M16 × 2 threaded polypropylene body passes through a hole and is sealed with the rubber gasket and nut.

Inside, a reed switch is operated by the hinged float. The contact is closed with the float at about 10° and opens at about 40°. It is rated 10 W maximum, so it is used to signal a relay, alarm or controller.

Signal level only: 100 V AC/DC and 0.5 A maximum. It will not switch a pump motor directly.

Specifications

Part number	LR21-L0M3
Mounting	Side mounted through the tank wall; M16 × 2 threaded body with rubber gasket and PP nut
Switch type	Reed switch, normally open (form A)
Max contact rating	10 W
Max switching voltage	100 V AC / 100 V DC
Max switching current	0.5 A DC
Max carry current	1.0 A
Operation	Contact closed with the float at about 10°, open at about 40°
Float & body	Polypropylene; float Ø17.5 × 51.5 mm
Leads	UL1007 22 AWG black PVC, 300 mm
Max pressure	0.1 MPa (1 bar)
Temperature	−10°C to +85°C
Supplier	Triton Controls

Applications

Small tanks & reservoirs

Level signal where a cable float would foul the tank walls.

Leak & overflow alarms

Early warning in drip trays, overflow tanks and bunds.

Machine & OEM tanks

Compact level sensing built into equipment and panels.

Pump controller input

Low or high-level input to a pump controller or relay that switches the pump.

Installation tips

Drill a hole in the tank wall to suit the M16 thread, fit the gasket on the inside face and tighten the nut by hand plus a quarter turn.
Mount it at the level you want to detect; check the switching by moving the float by hand before filling.
Keep within 10 W, 100 V and 0.5 A. Use a relay or controller for any pump or larger load.

FAQs

Can the LR21 switch a pump directly?

No. It is a 10 W signal switch. Use it to drive a relay or a pump controller such as the Triton LR31, which switches the pump.

How is it fitted?

It mounts sideways through the tank wall on an M16 × 2 thread, sealed by a rubber gasket and polypropylene nut.

What liquids can it go in?

Most clean liquids compatible with polypropylene, up to 85°C and 1 bar.

Is the contact normally open or closed?

It is a normally open (form A) reed switch: closed with the float at about 10°, open at about 40°.
