Pedrollo Steadypres Variable Speed Controller
Pedrollo Steadypres Variable Speed Controller
- Established 1975
- Trusted by thousands of customers

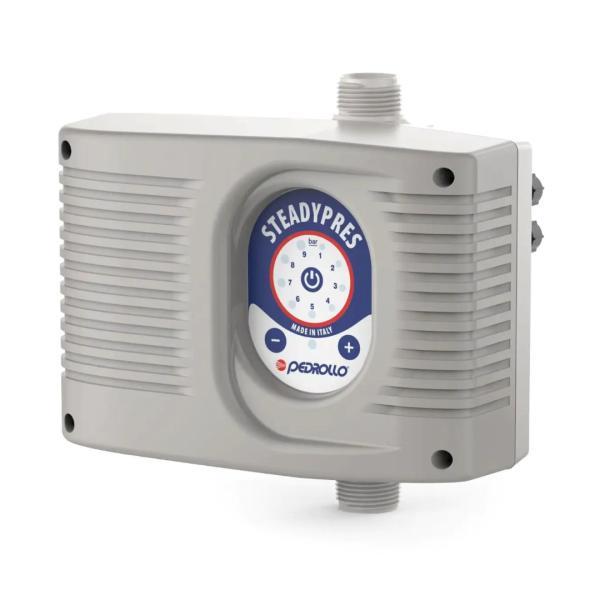

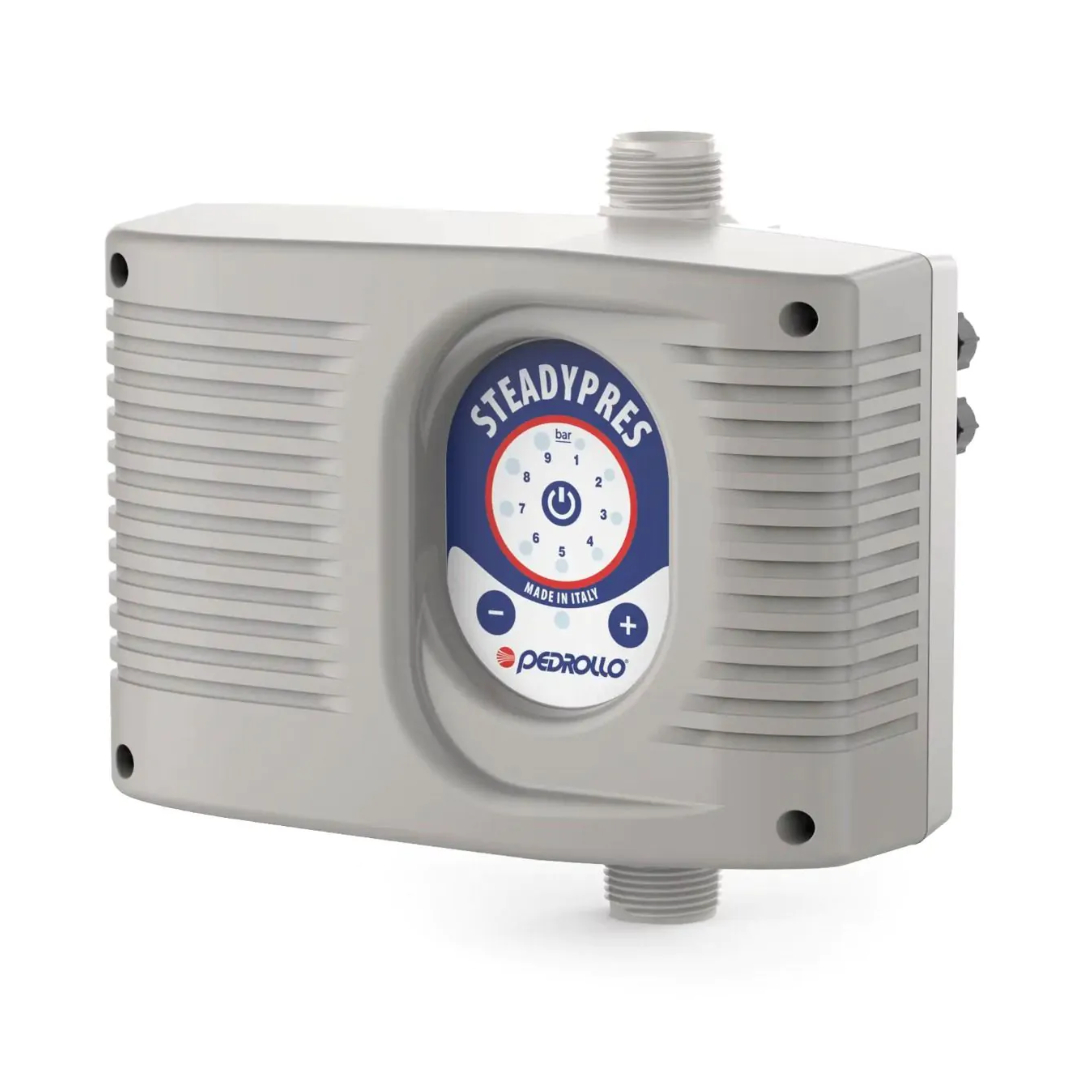

Pedrollo Steadypres 4 inverter, up to 1.1 kW pumps
The Pedrollo Steadypres is an inverter with water passage that fits on the pump delivery and varies motor speed to hold a constant pressure. It suits surface and submersible pumps up to 1.1 kW (1.5 HP), single-phase in with single-phase or three-phase out.
More about this product
Applications
- Domestic water supply
- Irrigation
- Adding constant pressure to existing pressure systems
Specification
| Model | Pedrollo Steadypres 4 (M/M and M/T) |
|---|---|
| Pedrollo code | 2900400 |
| Maximum pump power | 1.1 kW (1.5 HP) |
| Supply | 1 x 230 V ± 10%, 50/60 Hz |
| Pump voltage | 1 x 230 V (M/M) or 3 x 230 V (M/T) |
| Maximum current | 8.5 A |
| Working pressure | 1 to 9 bar |
| Maximum working pressure | 10 bar |
| Burst pressure | 40 bar |
| Cut-off flow | 2 l/min |
| Liquid | Clean water |
| Liquid temperature | 0 °C to +55 °C |
| Ambient temperature | 0 °C to +40 °C |
| Connections | 1" BSP male (3-piece union no longer included) |
| Protection | IP65 |
| Mounting | Vertical only |
Protects the pump from
- Dry running, with automatic reset
- Abnormal currents and voltages
- Abnormal temperatures
Key features
Frequently asked questions
-
DATA SHEET PDFDownload
-
MANUAL PDFDownload
Standard delivery:
Standard delivery is free on most orders. Some items may incur a delivery charge depending on weight, size or value. Any applicable charge will be displayed at checkout.
Deliveries will typically be made between 7am and 6pm, Monday to Friday (excluding public holidays).
Next day delivery:
Next working day delivery is available for a £16.50 + VAT delivery charge.
Orders must be placed before 12 noon to qualify for next working day delivery. Orders placed after 12 noon on Thursday but before noon on Friday will be delivered the following Monday. Orders placed after 12 noon on Friday will be delivered on Tuesday.
Pallet/Large/Difficult items:
Some large, heavy or difficult to transport items may incur an additional delivery charge. Please contact us for a delivery quote before ordering.
Frequently Asked Questions
Quick answers to common questions about the Pedrollo Steadypres Variable Speed Controller. For technical specifications, see the product details above; for sizing or installation advice, contact our team. If you have any other questions, we're happy to help.
What is a peripheral pump?
A peripheral pump uses a small impeller and peripheral channel to generate relatively high pressure at modest flow rates.
What applications suit peripheral pumps?
They are commonly used for clean-water transfer and pressure applications where high head and comparatively low flow are required.
Can peripheral pumps handle abrasive liquids?
Generally they are intended for clean, non-abrasive liquids. Check the specific pump’s permitted liquid properties before use.
