Pedrollo CFK 65 Counter-Flange Kit for F 65 Pumps 2103140
- Established 1975
- Trusted by thousands of customers

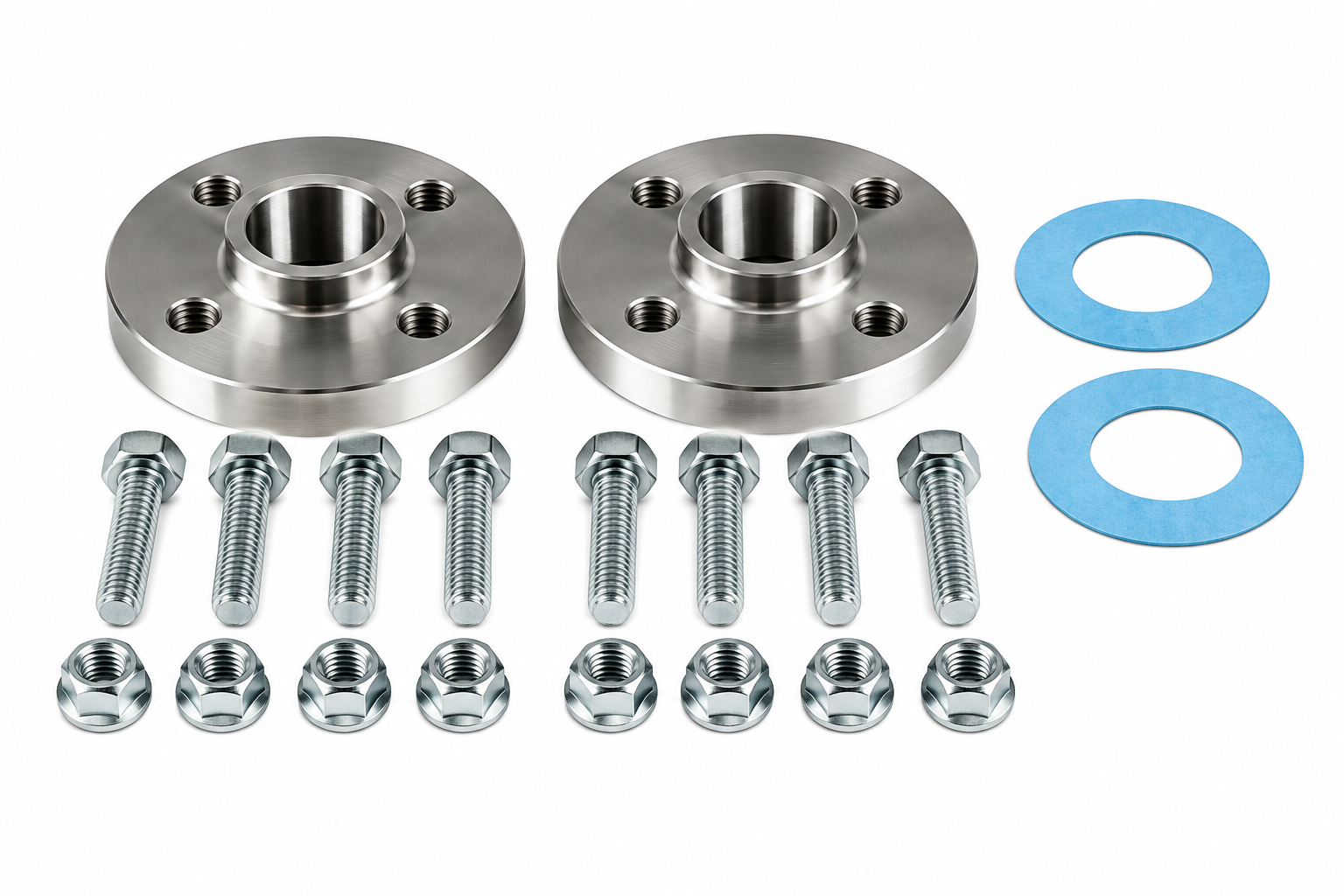

The Pedrollo CFK 65 is the counter-flange kit for Pedrollo F 65 centrifugal pumps. It covers both ports: DN 80 suction and DN 65 delivery.
The kit includes two counter-flanges with nuts, bolts and gaskets. Pedrollo supply it separately from the pump.
More about this product
Product overview
The Pedrollo CFK 65 is the counter-flange kit for Pedrollo F 65 centrifugal pumps. It covers both ports: DN 80 suction and DN 65 delivery.
The kit includes two counter-flanges with nuts, bolts and gaskets. Pedrollo supply it separately from the pump.
Technical specifications
| Brand / Model | Pedrollo CFK 65 counter-flange kit |
| Pedrollo code | 2103140 |
| For pumps | Pedrollo F 65/… series (EN 733) |
| Suction counter-flange | DN 80, 3″ thread, Ø 200 mm, bolt circle 160 mm, 8 holes Ø 18 mm |
| Delivery counter-flange | DN 65, 2½″ thread, Ø 185 mm, bolt circle 145 mm, 4 holes Ø 18 mm |
| Kit contents | 2 counter-flanges, nuts, bolts and gaskets |
Frequently asked questions
Which pumps does it fit?
Pedrollo F 65/… pumps, which have a DN 80 suction port and a DN 65 delivery port.
Does an F pump come with counter-flanges?
No. Pedrollo supply the counter-flange kit separately.
What threads do the counter-flanges have?
3″ on the suction side and 2½″ on the delivery side.
