Lowara Resiboost Variable Speed Drives
Lowara Resiboost MTA06UK 109951570
- Established 1975
- Trusted by thousands of customers

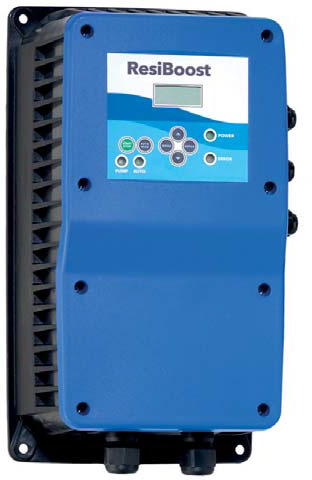

The Lowara Resiboost MTA06UK (109951570) is a wall-mounted variable-speed drive for constant pressure water supply. It runs from a 230 V single-phase supply and drives a three-phase 230 V motor drawing up to 6 A.
Wall-mounted Resiboost drives are air-cooled and work with an external 4–20 mA pressure transducer (0–10 bar supplied), so they suit surface, borehole and well pumps. Set the pressure you need and the drive adjusts motor speed to hold it as demand changes.
More about this product
The Lowara Resiboost MTA06UK (109951570) is a wall-mounted variable-speed drive for constant pressure water supply. It runs from a 230 V single-phase supply and drives a three-phase 230 V motor drawing up to 6 A.
Wall-mounted Resiboost drives are air-cooled and work with an external 4–20 mA pressure transducer (0–10 bar supplied), so they suit surface, borehole and well pumps. Set the pressure you need and the drive adjusts motor speed to hold it as demand changes.
Key specifications
| Model | Lowara Resiboost MTA06UK |
| Part no. | 109951570 |
| Type | Wall-mounted constant-pressure variable-speed drive |
| Input | 1 × 230 V –20%/+10%, 50 Hz |
| Output | 3 × 230 V (three-phase 230 V motor) |
| Rated motor current | 6 A (20% overload for 10 s) |
| Max. input current | 12 A |
| Recommended line protection | 16 A |
| Fuse | 16 A |
| Set pressure range | 0 to 16 bar |
| Cooling | Forced air cooling |
| Protection | IP54 |
| Efficiency | 93% or better |
| Standby consumption | 4 W |
| Max. power cable | 2.5 mm² |
| Ambient temperature | 0 to +50°C |
| Pressure sensor | External 4–20 mA transducer, 0–10 bar (0–16 bar optional) |
| Plug | Uk plug |
